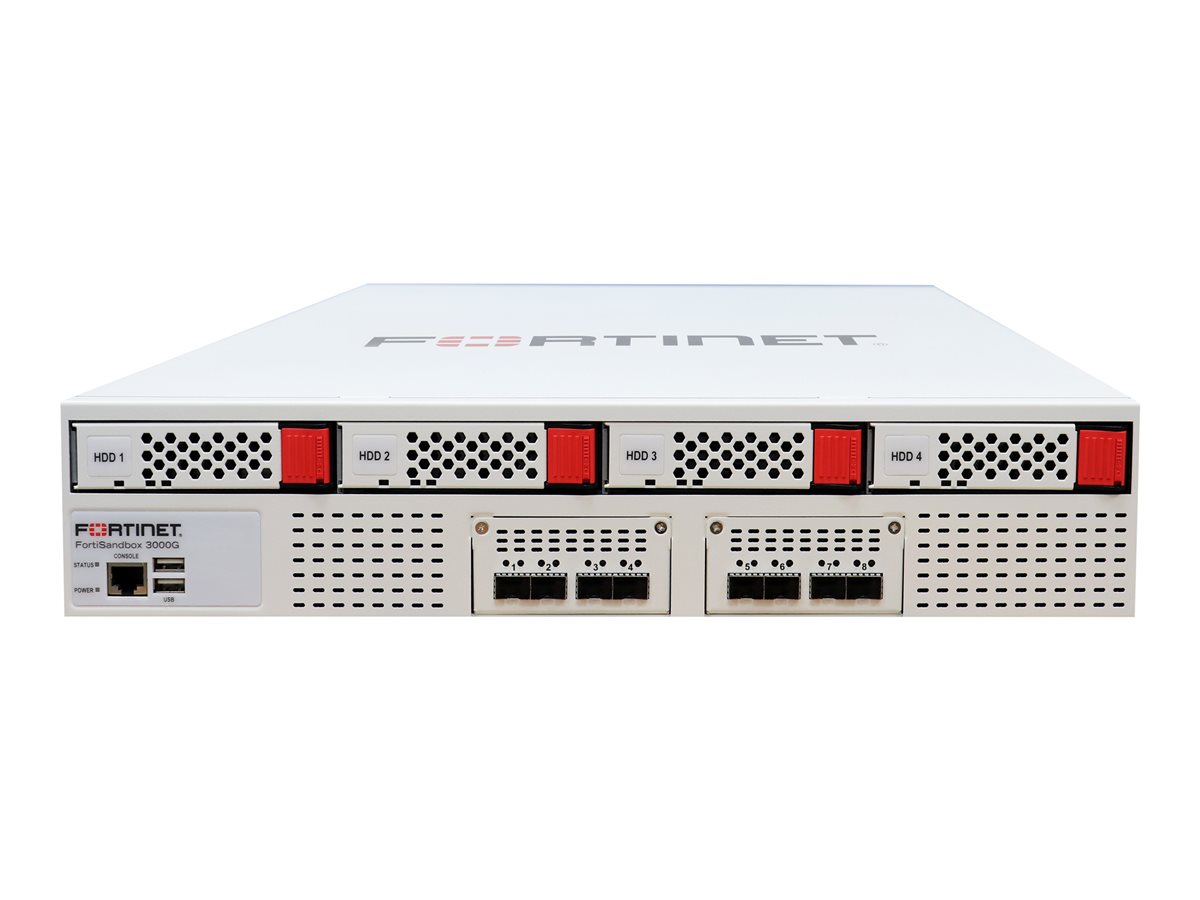

Security appliance - 8 ports - 10GbE - front to back airflow - 2U - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Fortinet FortiSandbox 3000G - security appliance |
| Device Type | Security appliance |
| Form Factor | Front to back airflow rack-mountable - 2U |
| Hard Drive | 2 TB x 4 |
| Ports Qty | 8 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Sandbox throughput: 160000 files per hour ¦ Static analysis throughput: 320000 files per hour ¦ Dynamic analysis throughput: 5700 files per hour ¦ FortiMail throughtput: 1600000 emails per hour ¦ MTA throughtput: 32000 emails per hour ¦ Sniffer throughput: 9.6 Gbps |
| Capacity | Maximum number of users: 20000 ¦ Local VMs: 8 - 150 ¦ Cloud VM expansions: 1 - 200 |
| Included Accessories | Slide rail kit |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 25.6 in x 3.5 in |
| Weight | 44.09 lbs |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 2U |
| Width | 17.2 in |
| Depth | 25.6 in |
| Height | 3.5 in |
| Weight | 44.09 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x console - RJ-45 ¦ 8 x 10GBase-T - SFP+ ¦ 2 x USB - Type A |
| Miscellaneous | |
| Included Accessories | Slide rail kit |
| Cables Included | 1 x console cable ¦ 1 x network cable |
| Compliant Standards | FCC Part 15 A, RCM, VCCI, BSMI, KC, UL, cUL, CB, GOST |
| Networking | |
| Form Factor | Rack-mountable |
| Airflow Direction | Front to back airflow |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | HTTP, SMTP, POP3, IMAP, MAPI, FTP, IM, NTP |
| Remote Management Protocol | HTTP, SMTP, CLI, NTP |
| Performance | Sandbox throughput: 160000 files per hour ¦ Static analysis throughput: 320000 files per hour ¦ Dynamic analysis throughput: 5700 files per hour ¦ FortiMail throughtput: 1600000 emails per hour ¦ MTA throughtput: 32000 emails per hour ¦ Sniffer throughput: 9.6 Gbps |
| Capacity | Maximum number of users: 20000 ¦ Local VMs: 8 - 150 ¦ Cloud VM expansions: 1 - 200 |
| Status Indicators | Status, power, speed, alarm, activity |
| Features | Trusted Platform Module (TPM), hot swappable, inline blocking, Web Filtering, anti-evasion technology, Packet Sniffer Mode, Internet Content Adaptation Protocol (ICAP) support, dynamic AI scan support, Callback detection, Comand and Control detection |
| Encryption Algorithm | SSL |
| Authentication Method | SAML |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 471.9 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | SSD hot-swap 2 TB x 4 |
| RAID Level | RAID 10 |
