UPS (rack-mountable / external) (high density) - AC 208 V - 4800 kW - 5400 VA - 1-phase - USB, serial, Ethernet 10/100/1000 - output connectors: 4 - 3U - 10 ft cord - black - TAA Compliant
| Main Specifications | |
|---|---|

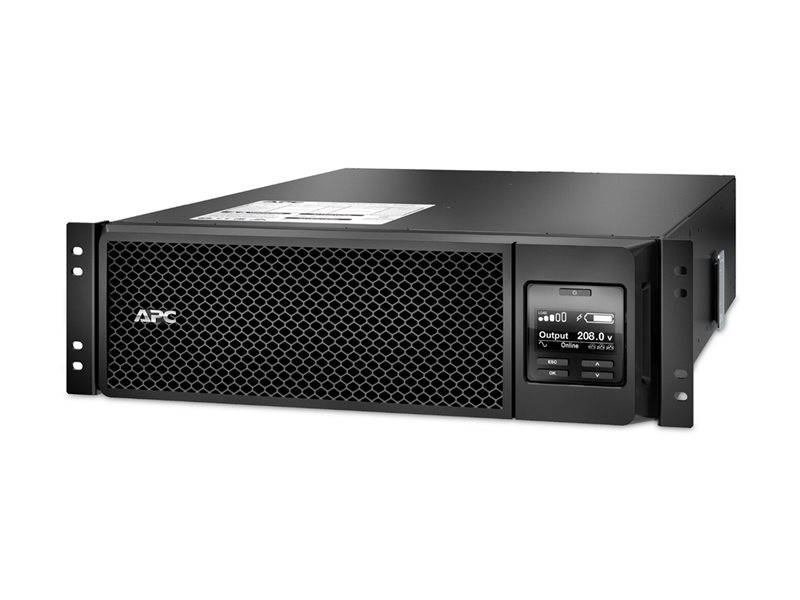

| Product Description | APC Smart-UPS On-Line - UPS - 4800 kW - 5400 VA - TAA Compliant |
| Device Type | UPS - rack-mountable / external |
| Cord Length | 10 ft |
| Rack Size | 3U |
| Weight | 122.99 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 4800 kW / 5400 VA |
| Input Connectors | 1 x power NEMA L6-30P |
| Output connectors | 2 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R |
| Battery | Lead acid high density |
| Run Time (Up To) | 3.27 min at full load |
| Networking | USB, serial, Ethernet 10/100/1000 |
| Included Accessories | UPS Network Management Card |
| Color | Black |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17 in x 28.3 in x 5.1 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 3U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |

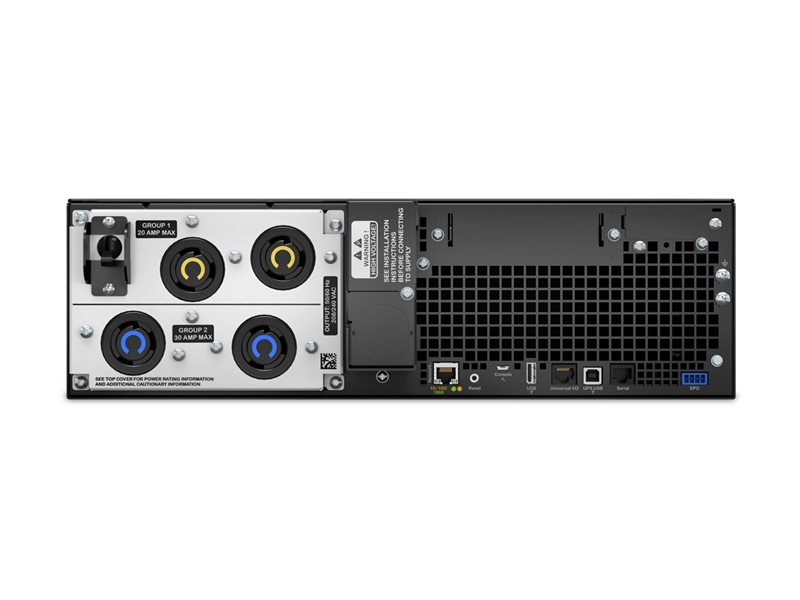

| Interfaces | 1 x serial - RJ-45 ¦ 1 x universal I/O port - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x USB - 4 pin USB Type A ¦ 1 x console - Micro-USB Type B ¦ 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years ¦ Limited warranty - battery - 2 years |
| Miscellaneous | |
| Included Accessories | UPS Network Management Card |
| Cables Included | Power cable 10 ft |
| Rack Mounting Kit | Included |
| Features | Horizontal mount, 1047 BTU/h heat dissipation, alarm, PCE package, Energy Management System with card, auto-sensing, internal bypass, emergency power off, LCD display |
| Compliant Standards | BAA, NOM, IP20, RoHS, REACH |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, serial, Ethernet 10/100/1000 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dBA |
| Battery | |
| Type | High density |
| Technology | Lead acid |
| Voltage Provided | 192 V |
| Run Time (Up To) | 3.27 min at full load |
| Recharge Time | 1.5 hours |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 208 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Input Wiring | 1-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 2 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R |
| Output Voltage | AC 208 V 50/60 Hz |
| Power Capacity | 4800 kW / 5400 VA |
| Output Waveform | Pure sine wave |
| Surge Suppression | Yes |
| Surge Energy Rating | 480 Joules |
| Efficiency | 92.4% at 25% Load, 94.2% at 50% Load, 94.3% at 100% Load, 94.5% at 75% Load |
| Total Harmonic Distortion (THD) | 2 % |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 28.3 in |
| Height | 5.1 in |
| Weight | 122.99 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 24 in |
| Shipping Depth | 37.8 in |
| Shipping Height | 13 in |
| Shipping Weight | 150 lbs |
| Sustainability Information | |
| ENERGY STAR | Yes |
