Gateway - industrial - 10Mb LAN - Wi-Fi 6 - LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 / 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 desktop / wall mountable - for NTC-220 Series
| Main Specifications | |
|---|---|

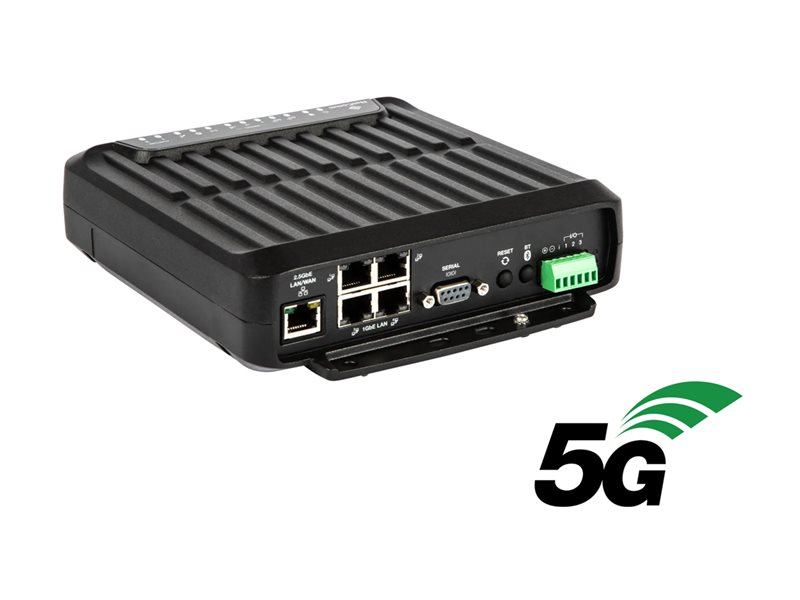

| Product Description | Lantronix NTC-550 Series - gateway - industrial - Wi-Fi 6 |
| Device Type | Gateway |
| Form Factor | Desktop / wall mountable |
| Localization | Global (excluding Japan, China) |
| Data Link Protocol | Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cellular Protocol | LTE CAT18, 5G, LTE CAT19 |
| Cellular Band | LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 / 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
| Power | Dc 8 - 40 V |
| Dimensions (WxDxH) | 6.9 in x 7.6 in x 2 in |
| Weight | 2.31 lbs |
| Manufacturer Warranty | 2-year warranty |
| Designed For | NTC-220 Series NTC-221-01-01, NTC-222-01-01, NTC-223-01-01, NTC-224-01-01, NTC-225-01-01, NTC-227-01-01 |
| General | |
| Device Type | Gateway |
| Built-in Devices | GPS / GLONASS / Galileo / Beidou / QZSS |
| Width | 6.9 in |
| Depth | 7.6 in |
| Height | 2 in |
| Weight | 2.31 lbs |
| Localization | Global (excluding Japan, China) |
| Expansion / Connectivity | |
| Expansion Slots | 1 Mini SIM card |
| Interfaces | 1 x USB-C ¦ 4 x Ethernet - RJ-45 ¦ 3 x GPIO ¦ 1 x RS-232/422/485 ¦ 1 x microSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | E-mark certified, IP41, RCM, UKCA |
| Networking | |
| Form Factor | Desktop / wall mountable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | IPSec, OpenVPN |
| Remote Management Protocol | SSH |
| Status Indicators | 4G, 5G, Bluetooth, GNSS, power, signal strength, SIM status, Wi-Fi |
| Features | Dynamic DNS, GRE tunneling, Modbus ASCII slave mode, Modbus RTU slave mode, NTP server, SSH command line interface, static routing, Virtual Route Redundancy Protocol (VRRP) support, WAN failover |
| Encryption Algorithm | WPA3 |
| Power | |
| Voltage Required | Dc 8 - 40 V |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 0 - 95% |
| Communications | |
| Cellular Protocol | LTE CAT18, 5G, LTE CAT19 |
| Cellular Band | LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 / 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
| Compatibility Information | |
| Designed For | Lantronix NTC-220 Series NTC-221-01-01, NTC-222-01-01, NTC-223-01-01, NTC-224-01-01, NTC-225-01-01, NTC-227-01-01 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
