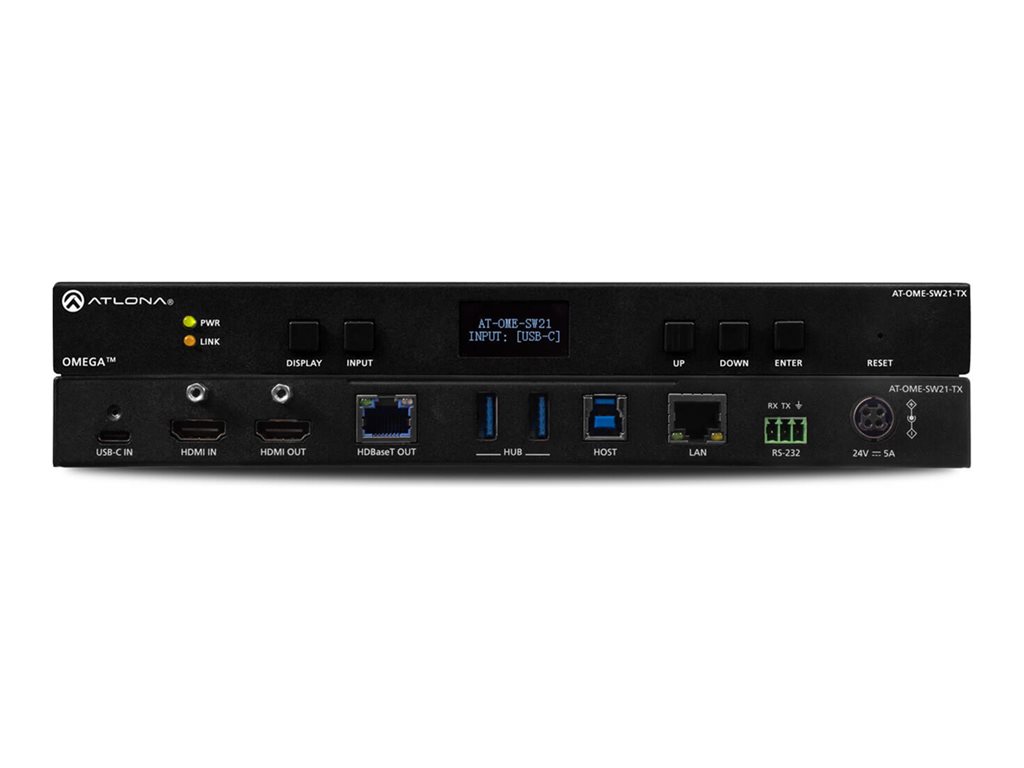

Video/audio/USB/network extender - transmitter - 10Mb LAN, HDBaseT - over CAT 5e/6/6a/7 - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | Atlona Omega Series AT-OME-SW21-TX - video/audio/USB/network extender - 10Mb LAN, HDBaseT |
| Device Type | Video/audio/USB/network extender (transmitter) |
| Form Factor | Desktop / rack mountable |
| Data Link Protocol | 10Mb LAN, HDBaseT |
| Transmission Medium | CAT 5e/6/6a/7 |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoE |
| Dimensions (WxDxH) | 9.8 in x 5.9 in x 1 in |
| Weight | 26.45 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/USB/network extender (transmitter) |
| Form Factor | Desktop / rack mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x management - RJ-45 female ¦ 1 x RS-232 - 3 pin terminal block ¦ 1 x HDMI output - 19 pin HDMI Type A female ¦ 1 x HDMI input - 19 pin HDMI Type A female ¦ 1 x USB-C (input) - USB type C female ¦ 1 x HDBaseT output - RJ-45 female ¦ 1 x USB 3.2 Gen 1 (host) - USB type B female ¦ 2 x USB 3.2 Gen 1 - USB type A female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | NDAA Section 899, FCC, HDCP 1.4, HDCP 2.2, HDCP 2.3, CEC |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, HDBaseT |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link |
| Features | Reset button, firmware upgradable, 10-bit Deep Color support, 12-bit Deep Color support, 4K60Hz support, 8-bit Deep Color support, Dolby Vision support, HDR10 support, Hybrid Log-Gamma (HLG) support, RGB 4:4:4, YUV 4:2:0, YUV 4:2:2, YUV 4:4:4, Dolby Atmos support, Dolby Digital Plus support, Dolby Digital support, DTS Digital Surround support, DTS:X support, DTS-HD Master Audio support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, 192 kHz audio sampling, web server |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.8 in |
| Depth | 5.9 in |
| Height | 1 in |
| Weight | 26.45 oz |
