VoIP gateway - single port network - 100Mb LAN
| Main Specifications | |
|---|---|

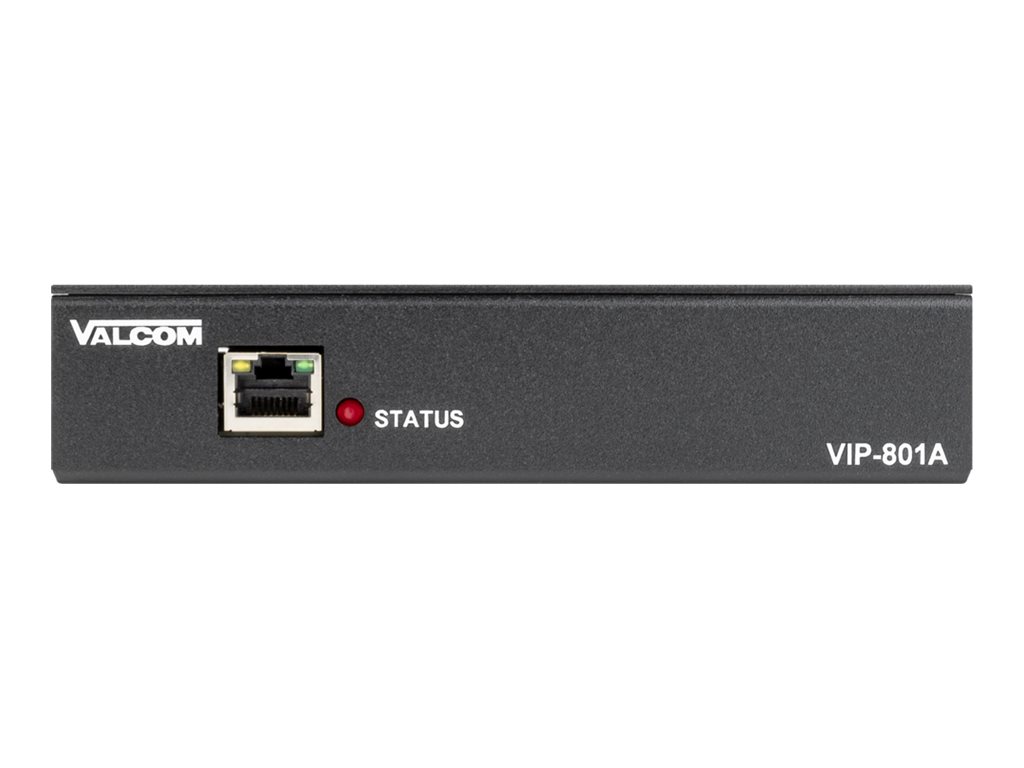

| Product Description | Valcom VIP-801A-V4 - VoIP gateway - single port network |
| Device Type | VoIP gateway |
| Form Factor | External - indoor |
| Data Link Protocol | Ethernet, Fast Ethernet |
| VoIP Protocols | SIP |
| Power | DC 24 V |
| Dimensions (WxDxH) | 6.1 in x 5.2 in x 1.4 in |
| Weight | 20.1 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | VoIP gateway |
| Ruggedized Design | Indoor |
| Width | 6.1 in |
| Depth | 5.2 in |
| Height | 1.4 in |
| Weight | 20.1 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-TX - RJ-45 ¦ 2 x audio line-out ¦ 1 x audio line-in ¦ 2 x relay |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3af Class 3, RFC3261, RFC2236, RFC3376, RFC1889, RFC2833 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | IGMPv2, IGMPv3, RTP, DHCP, NTP |
| Status Indicators | Status |
| Power | |
| Voltage Required | DC 24 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| IP Telephony | |
| VoIP Protocols | SIP |
| Voice Codecs | G.722 |
