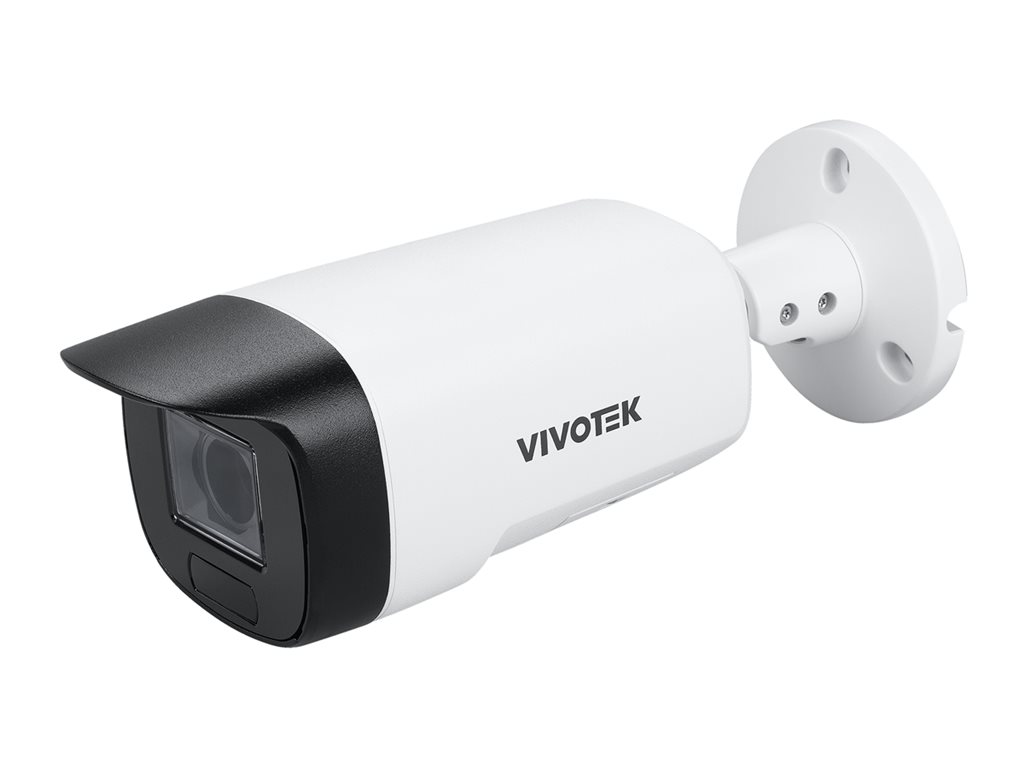

Network surveillance camera - bullet - outdoor - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - fixed iris - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3
| Main Specifications | |
|---|---|
| Product Description | Vivotek V Series IB9389-EHV-V3 - network surveillance camera - bullet |
| Device Type | Network surveillance camera - fixed - bullet - outdoor - vandal / weatherproof |
| Audio | Yes: built-in microphone, two-way audio capability |
| Dimensions (WxDxH) | 3.6 in x 10.2 in x 3.6 in |
| Weight | 2.27 lbs |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2560 x 1920 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.055 lux - color - F2.0 ¦ 0.005 lux - B&W - F2.0 ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/2.0 - fixed iris |
| Tilting Range (degree) | 80 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | Wide Dynamic Range (WDR) Pro, Removable IR-Cut Filter, Smart IR, 350° rotation, ePTZ, NAS-Ready, Pixel Calculator, 55 dB signal-to-noise ratio, Smart Stream III, embedded SOC processor, Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image flip, image mirror, infrared cut filter, Privacy Mask Function, Seamless Recording, Highlight Compensation (HLC), Electronic Image Stabilizer (EIS), tamper-detection, Event Notification, password protection, triple video stream, 3D Digital Noise Reduction Technology, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Smart Motion Detection, ONVIF (Profile T) support, ONVIF (Profile M) support |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -31 °F - 140 °F; 98% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone, two-way audio capability |
| Audio Formats | G.711, G.726, MPEG2 AAC-LC |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 3.6 in |
| Depth | 10.2 in |
| Height | 3.6 in |
| Weight | 2.27 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone ¦ Audio line out ¦ Digital input ¦ Digital output |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Alignment sticker, screw pack, cable gland |
| Compliant Standards | VCCI, IEC 60529 IP66, FCC Part 15 B Class A, IEC 62262 IK10, EN 50121-4, RCM, CNS 13438, IEC 60950-22, IS13252, BIS, EN 60950-22, EN 55024 Class A, AS/NZS CISPR 32 Class A, CNS 14336-1, IEC/EN 62471, EN 55032, IEEE 802.3af, UL 62368-1, IEC/EN 62368-1, IEC 60529 IP67 |
| Power | |
| Power Requirements | PoE Class 3 |
| Environmental Parameters | |
| Min Operating Temperature | -31 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Minimum Illumination | 0.055 lux - color - F2.0 ¦ 0.005 lux - B&W - F2.0 ¦ 0 lux - IR |
| Infrared LEDs | 4 |
| Infrared Distance | 131 ft |
| Digital Video Capture Resolution | 2560 x 1920, 2048 x 1536, 1920 x 1440, 1920 x 1080, 1600 x 1200, 1600 x 904, 1360 x 768, 1280 x 960, 1280 x 720, 800 x 600, 640 x 480, 640 x 360 |
| Frame Rate (max) | 60 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Wide Dynamic Range (WDR) Pro, Removable IR-Cut Filter, Smart IR, 350° rotation, ePTZ, NAS-Ready, Pixel Calculator, 55 dB signal-to-noise ratio, Smart Stream III, embedded SOC processor, Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image flip, image mirror, infrared cut filter, Privacy Mask Function, Seamless Recording, Highlight Compensation (HLC), Electronic Image Stabilizer (EIS), tamper-detection, Event Notification, password protection, triple video stream, 3D Digital Noise Reduction Technology, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Smart Motion Detection, ONVIF (Profile T) support, ONVIF (Profile M) support |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Iris | F/2.0 fixed iris |
| Horizontal Field of View (degree) | 103.4 |
| Vertical Field of View (degree) | 75.3 |
| Diagonal Field of View (degree) | 135.2 |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, CoS |
| Tilting | |
| Range (degree) | 80 |
