Network surveillance camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - auto iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3
| Main Specifications | |
|---|---|

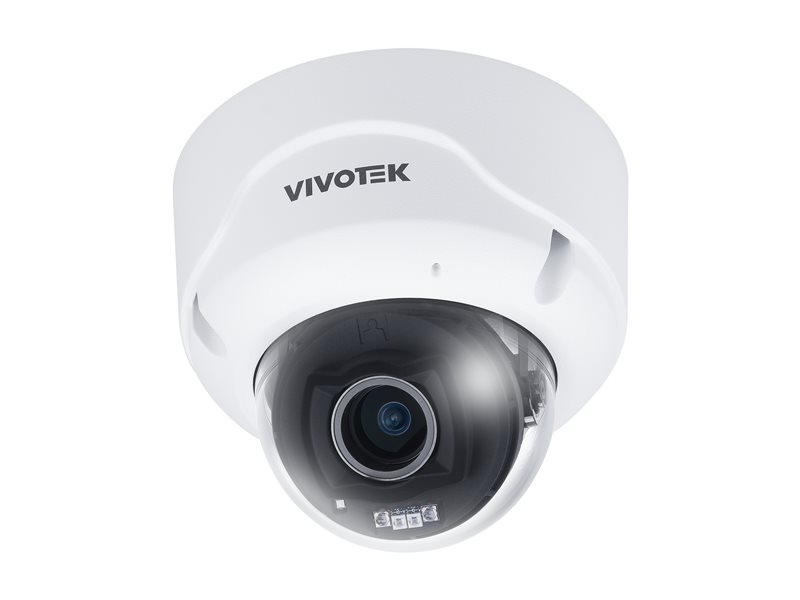

| Product Description | Vivotek V Series FD9389-EHTV-V3 - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - outdoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability, built-in microphone |
| Dimensions (WxDxH) | 5.3 in x 5.3 in x 4.6 in |
| Weight | 34.92 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 12 x |
| Max Resolution | 2560 x 1920 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | Progressive Scan CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.04 lux - color - F1.6 ¦ 0.005 lux - B&W - F1.6 ¦ 0 lux - IR |
| Focal Length Control | Motorized zoom |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.6-3.3 - auto iris (P-Iris) |
| Panning Range (degree) | 350 |
| Tilting Range (degree) | 80 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | Wide Dynamic Range (WDR) Pro, built-in IR illuminator, Smart IR, ePTZ, NAS-Ready, 3 video streams, image flip, image mirror, saturation control, brightness control, contrast control, Smart Stream III, sharpness control, digital image rotation, infrared cut filter, Electronic Image Stabilizer (EIS), 3D digital noise reduction (DNR), Backlight Compensation (BLC), Highlight Compensation (HLC), Privacy Mask Function, password protection, secure boot, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, human detection, intrusion detection, loitering detection, Line Crossing Detection, unattended object detection, missing object detection, face detection, crowd detection, Smart Motion Detection, Audio Detection, Defog, tamper-detection, shock detection, notification picture to E-mail, Supreme Night Visibility, exposure control, bit rate control, embedded SOC processor, Abandoned Object Detection, People Detection, TPM 2.0 module, Vehicle Detection, up to 10 channels simultaneous live view, LED indicator |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -31 °F - 140 °F; 98% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | G.726, MPEG 2 Audio, AAC-LC, G.711 |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.3 in |
| Depth | 5.3 in |
| Height | 4.6 in |
| Weight | 34.92 oz |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Alignment sticker, screw pack, L-shaped wrench |
| Compliant Standards | IEEE 802.3af, BIS, BSMI, CB, FCC, IK10, IP66, NEMA, RCM, UKCA, UL, VCCI |
| Power | |
| Power Requirements | PoE Class 3 |
| Environmental Parameters | |
| Min Operating Temperature | -31 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2560 x 1920 |
| Motion Detection | Yes |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Minimum Illumination | 0.04 lux - color - F1.6 ¦ 0.005 lux - B&W - F1.6 ¦ 0 lux - IR |
| Infrared LEDs | 4 |
| Infrared Distance | 131 ft |
| Video Capture | 2560 x 1920 @ 30 fps ¦ 1920 x 1080 @ 60 fps |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Wide Dynamic Range (WDR) Pro, built-in IR illuminator, Smart IR, ePTZ, NAS-Ready, 3 video streams, image flip, image mirror, saturation control, brightness control, contrast control, Smart Stream III, sharpness control, digital image rotation, infrared cut filter, Electronic Image Stabilizer (EIS), 3D digital noise reduction (DNR), Backlight Compensation (BLC), Highlight Compensation (HLC), Privacy Mask Function, password protection, secure boot, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, human detection, intrusion detection, loitering detection, Line Crossing Detection, unattended object detection, missing object detection, face detection, crowd detection, Smart Motion Detection, Audio Detection, Defog, tamper-detection, shock detection, notification picture to E-mail, Supreme Night Visibility, exposure control, bit rate control, embedded SOC processor, Abandoned Object Detection, People Detection, TPM 2.0 module, Vehicle Detection, up to 10 channels simultaneous live view, LED indicator |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.6-3.3 auto iris (P-Iris) |
| Horizontal Field of View (degree) | 28.7 - 95.4 |
| Vertical Field of View (degree) | 21.5 - 68.8 |
| Diagonal Field of View (degree) | 35.9 - 129.6 |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, RTCP, PPPoE, SMB, IGMP, SSL, QOS, CoS, CIFS |
| Panning | |
| Range (degree) | 350 |
| Tilting | |
| Range (degree) | 80 |
