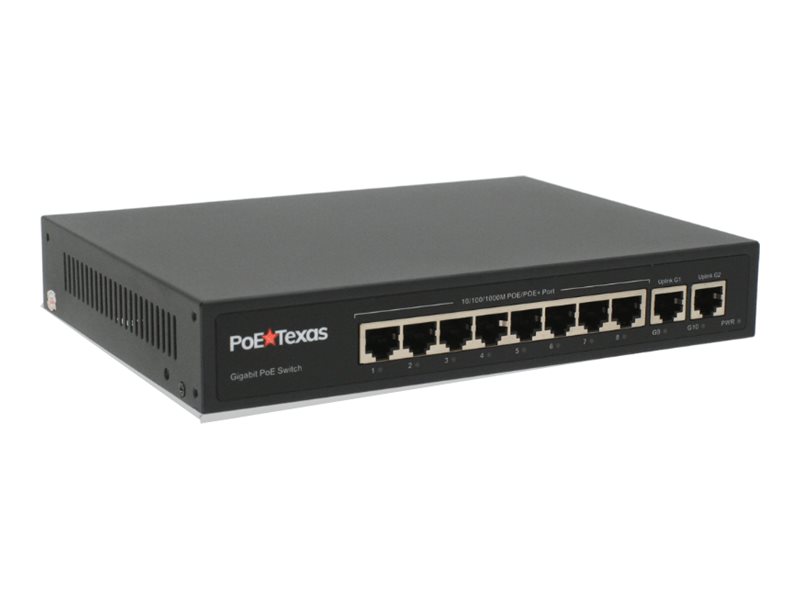

Switch - 802.3af/a, for video, tablet and security applications - 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) - desktop - PoE+ (120 W)
| Main Specifications | |
|---|---|
| Product Description | POE Texas - switch - 802.3af/a, for video, tablet and security applications - 8 ports |
| Device Type | Switch - 8 ports |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x |
| Power | AC 120-220 V (50 Hz) |
| Dimensions (WxDxH) | 8.7 in x 6.5 in x 1.3 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 120 W |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x |
| Status Indicators | Link/activity, PoE |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T RJ-45 uplink |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year ¦ 30 day returns |
| Miscellaneous | |
| Included Accessories | Power cable |
| Cables Included | 1 x power cable - 3 ft |
| Compliant Standards | FCC, RoHS |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120-220 V (50 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 176 °F |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 6.5 in |
| Height | 1.3 in |
