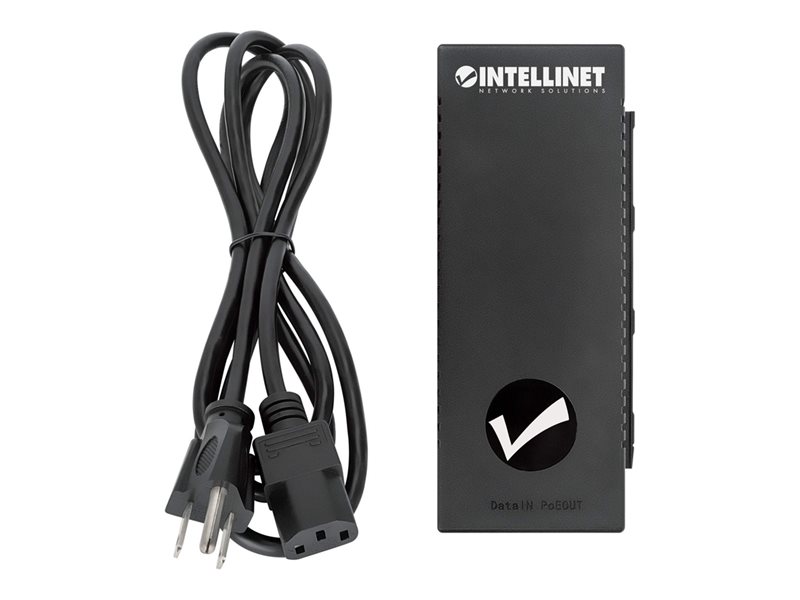

PoE injector (wall mountable) - 2.5G, High-Power, PoE+ - AC 100-240 V - 30 Watt - output connectors: 1
| Main Specifications | |
|---|---|
| Product Description | Intellinet - PoE injector - 2.5G, High-Power, PoE+ - 30 Watt |
| Device Type | PoE injector - wall mountable |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 8.11 oz |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 52 V |
| Power Capacity | 30 Watt |
| Input Connectors | 1 |
| Output connectors | 1 x RJ-45 - 52 V 0.58 A 30 W |
| Dimensions (WxDxH) | 2.4 in x 5.7 in x 1.6 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | PoE injector - wall mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5 Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | AC input cable - external - 5 ft |
| Features | Plastic housing, up to 100 m distance, retail box package, LED indicators, short-circuit protection, overvoltage protection, overload protection, auto-sensing, fanless |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, NDAA, RoHS, UKCA, FCC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | 1 |
| Power Consumption Operational | 30 Watt |
| Power Output Connectors Details | 1 x RJ-45 - 52 V 0.58 A 30 W |
| Output Voltage | DC 52 V |
| Max Electric Current | 0.58 A |
| Power Capacity | 30 Watt |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 5.7 in |
| Height | 1.6 in |
| Weight | 8.11 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 15.17 oz |
