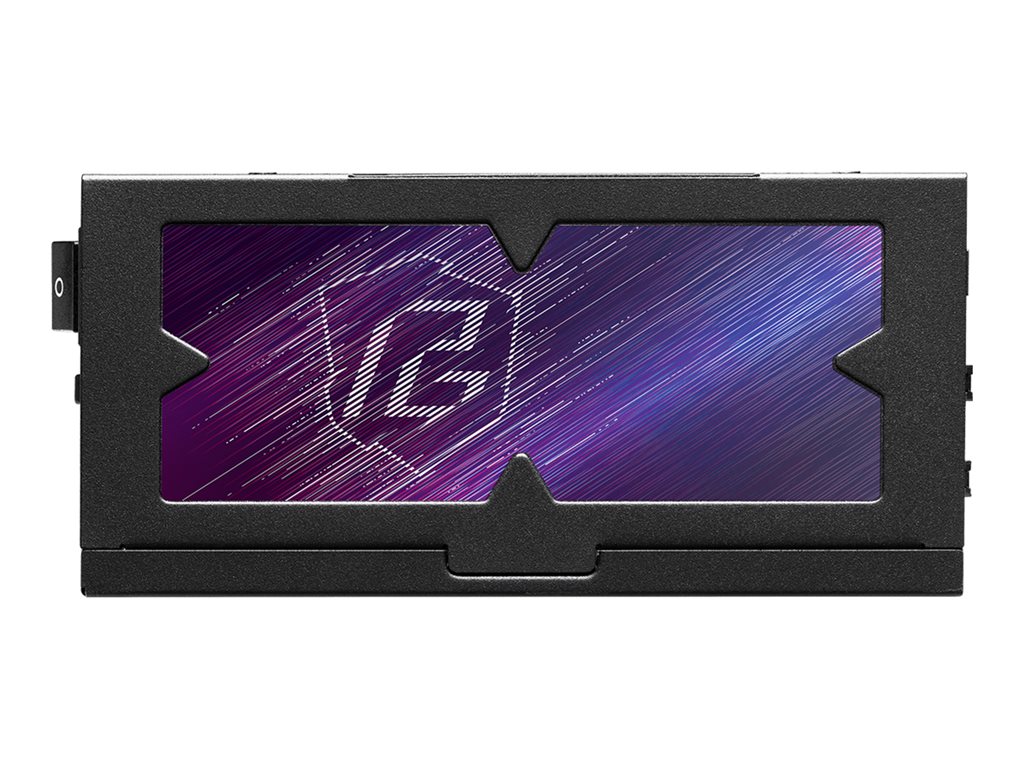

Power supply (internal) - ATX 3.1 - 80 PLUS Titanium - Cybenetics Platinum - 1300 Watt
| Main Specifications | |
|---|---|
| Product Description | ASRock Phantom Gaming PG-1300G - power supply - 1300 Watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX 3.1 |
| 80 PLUS Certification | 80 PLUS Titanium |
| Cybenetics Certification | Cybenetics Platinum |
| Power Capacity | 1300 Watt |
| Output connectors | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 12+4 pin PCI Express 5.1 power ¦ 6 x 8 pin PCI Express power ¦ 3 x Molex ¦ 9 x SATA connector |
| Modular Cable Management | Yes |
| Cooling System | 135 mm fan |
| Dimensions (WxDxH) | 7.1 in x 5.9 in x 3.4 in |
| Manufacturer Warranty | 10-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX 3.1 |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Cables Included | Power 24 pin ATX with detachable 4 pin section modular cable 2 ft ¦ 2 x power 8 pin CPU cable 2 ft ¦ 2 x 8 pin PCI Express power cable 2.3 ft ¦ 2 x PCIe x8 cable 2.2 ft ¦ 2 x PCIe x8 cable 2.5 ft ¦ 3 x SATA Express cable 21 ft ¦ Parallel cable 21 ft |
| MTBF | 100,000 hours |
| Cooling System | 135 mm fan |
| Features | Sleeved cables, Lambda A++ Certification, fully modular, Intelligent Fan Control Technology, 5V BOOST mode, overpower protection, overcurrent protection, short-circuit protection, overvoltage protection, undervoltage protection, high temperature protection, Axial-tech fan design |
| Power Device | |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 12+4 pin PCI Express 5.1 power ¦ 6 x 8 pin PCI Express power ¦ 3 x Molex ¦ 9 x SATA connector |
| Power Capacity | 1300 Watt |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Titanium |
| Cybenetics Certification | Cybenetics Platinum |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 7.1 in |
| Height | 3.4 in |
