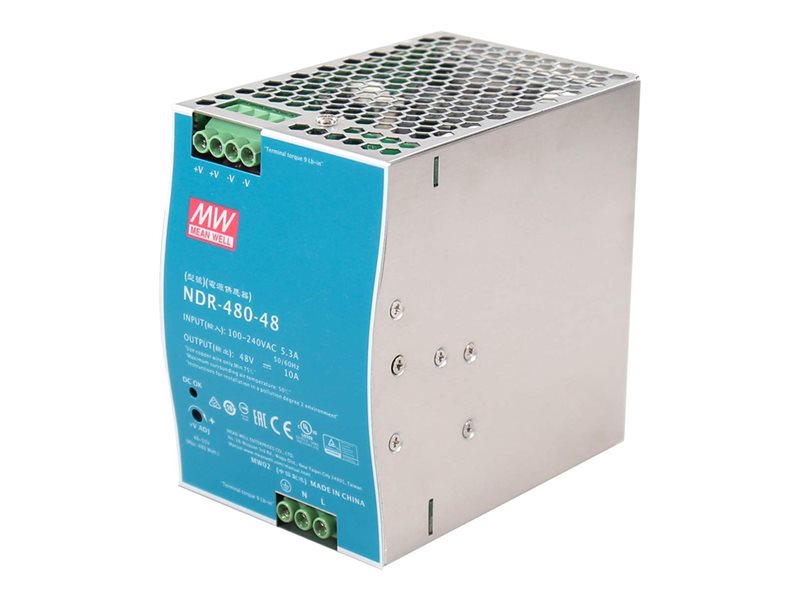

Power supply (DIN rail mountable) - industrial - AC 115/230 V - 480 Watt - 1-phase - blue/silver
| Main Specifications | |
|---|---|
| Product Description | Intellinet - power supply - industrial - 480 Watt |
| Device Type | Power supply - DIN rail mountable |
| Weight | 3.22 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 115/230 V |
| Output Voltage | 48 V ± 1% |
| Power Capacity | 480 Watt |
| Input Connectors | Terminal block |
| Included Accessories | Mounting bracket |
| Color | Blue/silver |
| Dimensions (WxDxH) | 3.4 in x 5.1 in x 4.9 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power supply - DIN rail mountable |
| Color | Blue/silver |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting bracket |
| Features | Metal housing, brown box packaging, LED indicators, overvoltage protection, overcurrent protection, overheat protection, convection cooling |
| Compliant Standards | UL 508, BS EN IEC 62368-1, TP TC 004, BSMI CNS 14336-1, BS EN 55032, EN 61204-3 Class B, EN 61000-3-2, TP TC 020, CNS 13438 Class B, EMC, EN55024, EN 61000-6-2, EN 61204-3, IEC/EN 60715, IEC 60068-2-6, EAC, EN 60204-1, CISPR 32, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 50082-2, TUV, CB, RoHS, NDAA |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 115/230 V |
| Input Voltage Range | AC 90 - 264 / DC 127 - 370 V |
| Input Wiring | 1-phase |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | Terminal block |
| Output Voltage | 48 V ± 1% |
| Max Electric Current | 10 A |
| Power Capacity | 480 Watt |
| Circuit Protection | Circuit breaker |
| Efficiency | 92.5% |
| Power Factor (PF) | 0.98 |
| Dimensions & Weight | |
| Width | 3.4 in |
| Depth | 5.1 in |
| Height | 4.9 in |
| Weight | 3.22 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.51 lbs |
