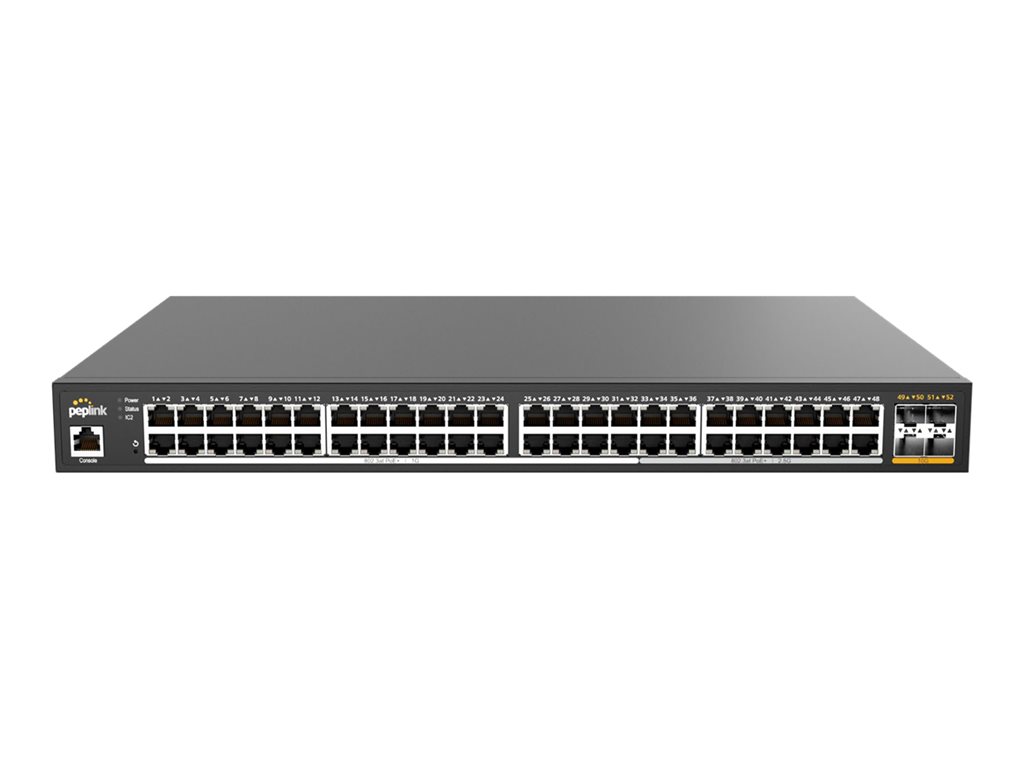

Switch - managed - 32 x 10/100/1000 (PoE+) + 16 x 2.5G (PoE+) + 4 x 10 Gigabit SFP+ - desktop - PoE+ (740 W) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Peplink Switch Series PLS-48-H2G-740W - switch - 48 ports - managed - TAA Compliant |
| Device Type | Switch - 48 ports - managed |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 32 x 10/100/1000 (PoE+) + 16 x 2.5G (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 224 Gbps ¦ Packet forwarding rate: 318 Mpps |
| MAC Address Table Size | 32000 entries |
| Features | Traffic monitoring, VLAN support, Inter-VLAN Routing, LACP, STP support, DHCP snooping, loop protection, RSTP, InControl Cloud Management, reset button |
| Compliant Standards | IEEE 802.3at |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 17.3 in x 12.2 in x 1.8 in |
| Weight | 10.8 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Desktop |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 32 x 10/100/1000 (PoE+) + 16 x 2.5G (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 224 Gbps ¦ Packet forwarding rate: 318 Mpps |
| MAC Address Table Size | 32000 entries |
| Features | Traffic monitoring, VLAN support, Inter-VLAN Routing, LACP, STP support, DHCP snooping, loop protection, RSTP, InControl Cloud Management, reset button |
| Compliant Standards | IEEE 802.3at |
| Status Indicators | Power, status |
| Expansion / Connectivity | |
| Interfaces | 32 x 1000Base-T RJ-45 PoE+ ¦ 16 x 2.5Gbit LAN RJ-45 PoE+ ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Rubber feet, mounting screws, mounting brackets |
| Cables Included | 1 x power cable |
| Compliant Standards | FCC, RoHS |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 900 Watt |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 64 Watt |
| Software / System Requirements | |
| Software Included | Peplink Switch Firmware |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 12.2 in |
| Height | 1.8 in |
| Weight | 10.8 lbs |
