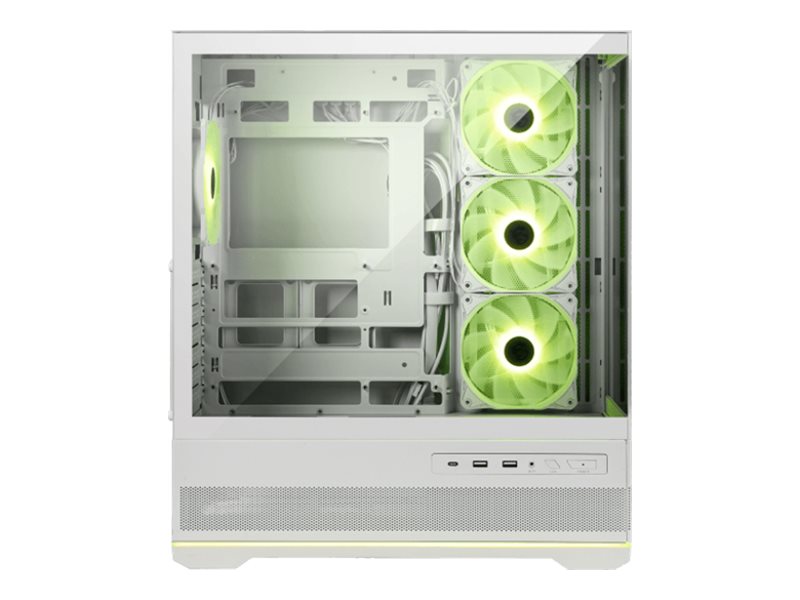

Mid tower - ATX - windowed side panel (tempered glass) - no power supply (ATX) - white - USB/Audio
| Main Specifications | |
|---|---|
| Product Description | MSI MAG PANO 110R PZ - mid tower - ATX |
| Product Type | System cabinet |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes, tempered glass |
| Color | White |
| I/O Connectors | 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x headphone/microphone |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| System Cabinet Features | Support back-connect motherboard, 270-degree panoramic glass display, ARGB controller, ARGB fans, top magnetic dust filter, bottom dust filter, cable management system (35 mm clearance), MSI RGB Mystic Light Sync |
| Power Device | No power supply (ATX) |
| Dimensions (WxDxH) | 8.9 in x 16.5 in x 19.1 in |
| General | |
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| Internal Bays Qty | 6 |
| Product Material | SPCC, tempered glass |
| Color | White |
| Cooling System | Side: 120 mm fan x 3 / ARGB fan, 2 x 140 mm fan supported or 120/140/240/280/360 mm radiator supported, Reverse blade ¦ Rear: 120 mm fan x 1 / ARGB fan, 120 mm radiator supported ¦ Top: 120 mm fan mount x 3 / 2 x 140 mm fan or 120/140/240/280/360mm radiator supported ¦ PSU shroud: 120 mm fan mount x 3 |
| CPU Cooler Max Height | 160 mm |
| Video Card Max Length | 400 mm |
| Power Supply Max Length | 200 mm |
| System Cabinet Features | Support back-connect motherboard, 270-degree panoramic glass display, ARGB controller, ARGB fans, top magnetic dust filter, bottom dust filter, cable management system (35 mm clearance), MSI RGB Mystic Light Sync |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x internal - 2.5" ¦ 2 (total) / 2 (free) x internal - 3.5" |
| Expansion Slots | 7 |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x headphone/microphone - mini-jack |
| Miscellaneous | |
| Included Accessories | Cable ties, Stand-Off mounting tool, screws |
| Power | |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Max Supported Qty | 1 |
| Dimensions & Weight | |
| Width | 8.9 in |
| Depth | 16.5 in |
| Height | 19.1 in |
