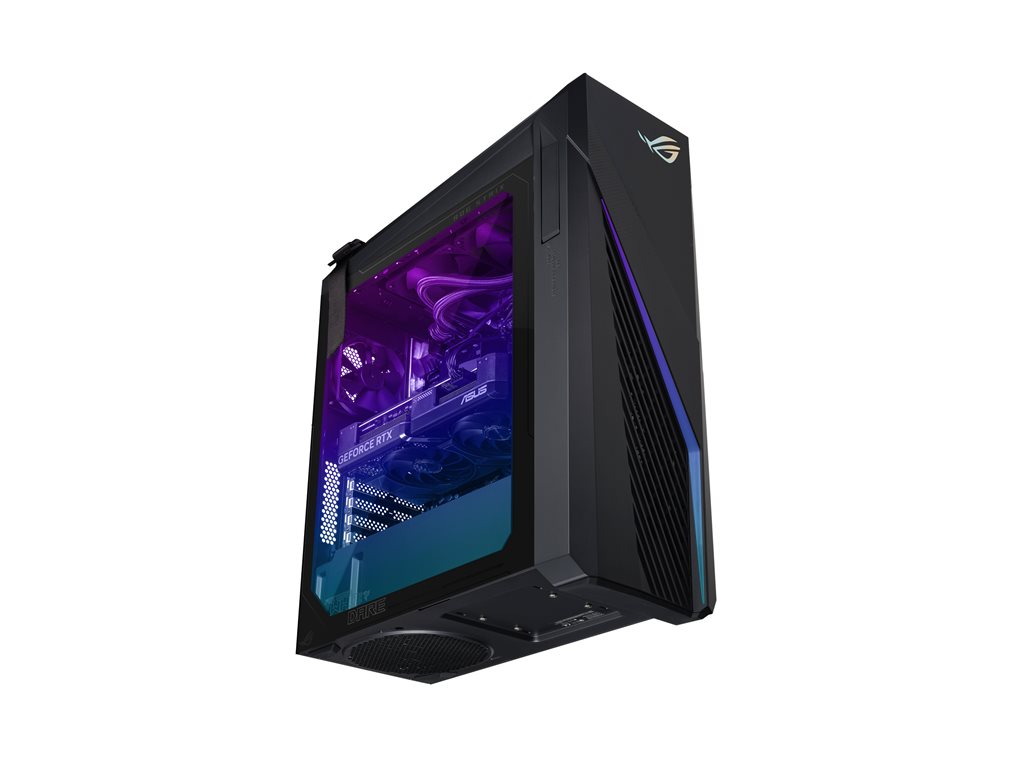

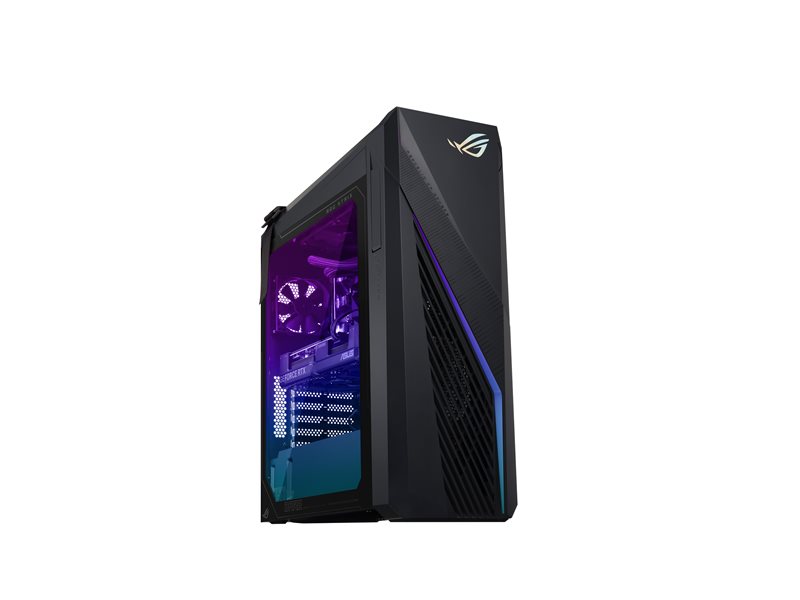

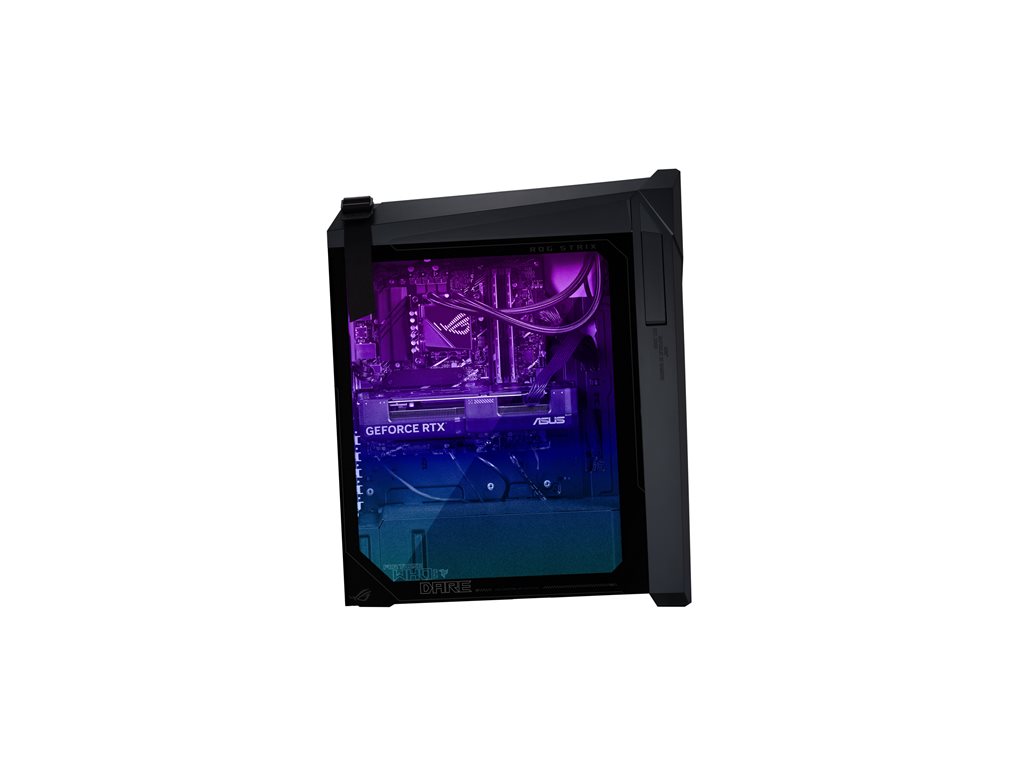

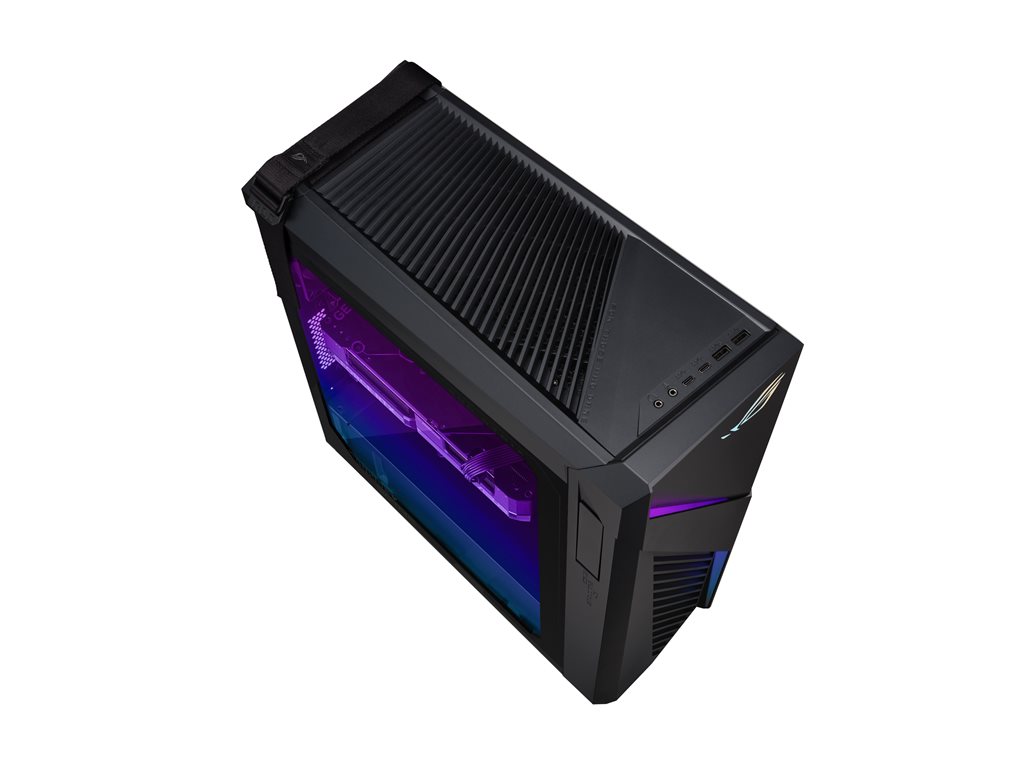

Mid tower gaming - Core i7 i7-14700F / up to 5.3 GHz - RAM 32 GB - SSD 1 TB - NVMe - GeForce RTX 4070 Super - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, Gigabit Ethernet, Bluetooth 5.3 - Win 11 Home - monitor: none - gray
| Main Specifications | |
|---|---|
| Product Description | ASUS ROG Strix G16CHR DS776S - mid tower Core i7 i7-14700F 2.1 GHz - 32 GB - SSD 1 TB |
| Type | Personal computer - mid tower |
| Processor | Intel Core i7 (14th Gen) i7-14700F / 2.1 GHz (up to 5.3 GHz, (20-core) |
| Processor Main Features | Intel Smart Cache, Intel Turbo Boost Technology 3 |
| Cache Memory | 33 MB |
| Cache Per Processor | 33 MB |
| RAM | 32 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 2280 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA GeForce RTX 4070 SUPER |
| Video Memory | 12 GB GDDR6X SDRAM |
| Gaming | Yes |
| Audio Output | 7.1 channel surround |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6E, 802.11b/g/n, Bluetooth, 1GbE, Bluetooth 5.3 |
| OS Provided | Windows 11 Home |
| Color | Gray |
| Dimensions (WxDxH) | 7.3 in x 16.6 in x 20.1 in |
| Weight | 24.25 lbs |
| General | |
| Type | Personal computer |
| Product Form Factor | Mid tower |
| Built-in Devices | Air cooling solution, LED lighting |
| Gaming | Yes |
| Color | Gray |
| Expansion / Connectivity | |
| Slots | 4 (total) / 3 (free) x PCIe 4.0 x16 ¦ 1 (total) / 0 (free) x M.2 Card (for wireless module) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage) |

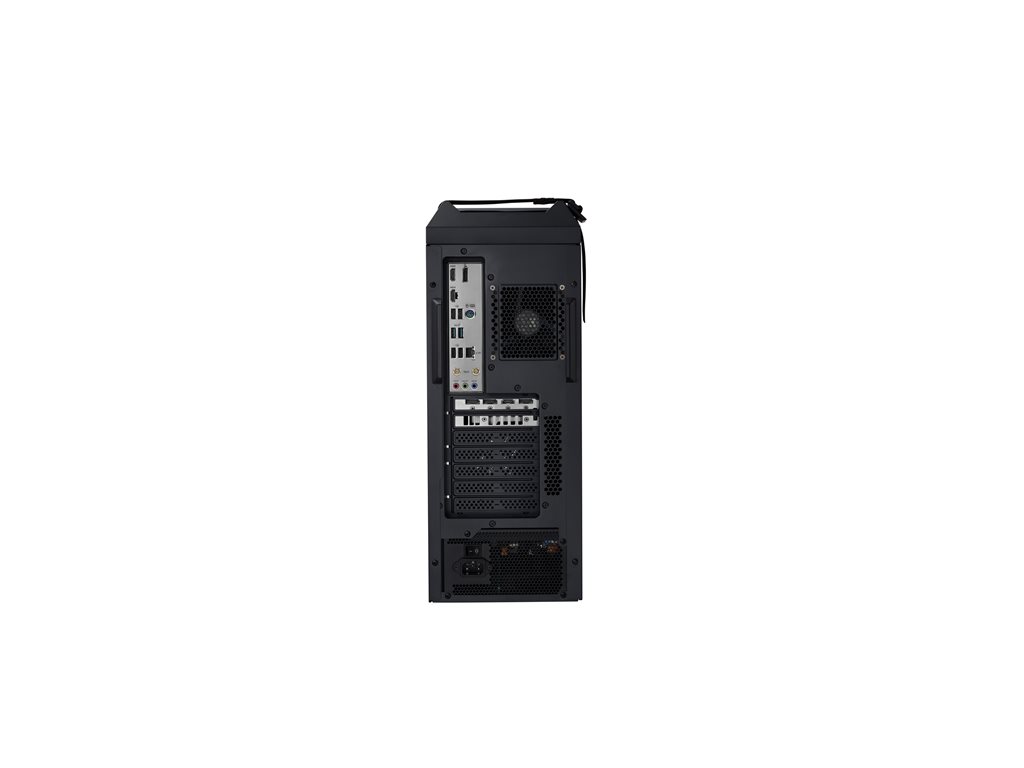

| Interfaces | 4 x USB 2.0 (4 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 3 x HDMI (3 rear) ¦ 4 x DisplayPort (4 rear) ¦ 1 x PS/2 keyboard / mouse (1 rear) ¦ 2 x USB 3.2 Gen 2 (2 rear) ¦ 1 x audio line-out (1 rear) ¦ 1 x audio line-in (1 rear) ¦ 2 x microphone (1 front, 1 rear) ¦ 1 x headphones (1 front) ¦ 2 x USB-C 3.2 Gen 1 (2 front) ¦ 2 x USB 3.2 Gen 1 (2 front) |
| Miscellaneous | |
| Gaming | Yes |
| Included Accessories | Carrying handle |
| Compliant Standards | RoHS |
| RAM | |
| Installed Size | 32 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.4, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power supply |
| Power Provided | 550 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 6 |
| Cache Memory | |
| Installed Size | 33 MB |
| Cache Per Processor | 33 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA GeForce RTX 4070 SUPER |
| Video Memory | 12 GB GDDR6X SDRAM |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 3 |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio, Dolby Atmos |
| Operating System / Software | |
| OS Provided | Windows 11 Home |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 7.3 in |
| Depth | 16.6 in |
| Height | 20.1 in |
| Weight | 24.25 lbs |
| Processor / Chipset | |
| CPU | Intel Core i7 (14th Gen) i7-14700F |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.3 GHz (P-core) / 4.2 GHz (E-core) |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache, Intel Turbo Boost Technology 3 |
| Chipset Type | Intel B760 |
