86" Diagonal Class Secure Series III LED-backlit LCD display - digital signage - 4K UHD (2160p) 3840 x 2160 - Direct LED - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Christie SUHD86-V3 Secure Series III - 86" LED-backlit LCD display - 4K - for digital signage - TAA Compliant |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 86" |
| Commercial Use | Yes - digital signage |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Connectivity | LAN |
| PC Interface | DisplayPort, VGA |
| LCD Backlight Technology | Direct LED |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Auto Source Switching, FailOver |
| Speaker System | 2 speakers |
| Included Accessories | Remote control, IR receiver, power cord, battery |
| Voltage | AC 100-240 V |
| Power Consumption Stand by | 0.4 Watt |
| Dimensions (WxDxH) - panel | 76.5 in x 3.4 in x 43.9 in |
| Weight | 112.43 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption (Max) | 468 Watt |
| Diagonal Class | 86" |
| Commercial Use | Yes - digital signage |
| Series | Secure Series III |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| PC Interface | DisplayPort, VGA |

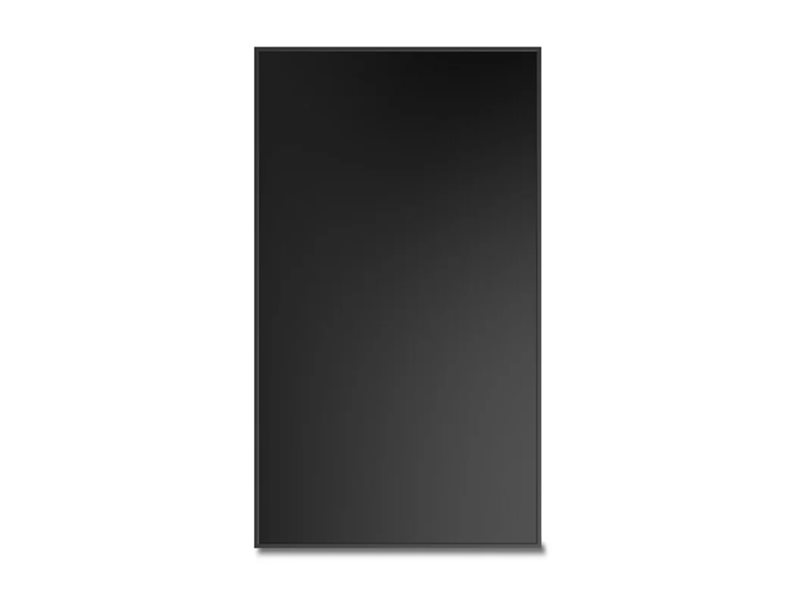

| Modes | Landscape mode, portrait mode |
| Dimensions | Panel |
| Width | 76.5 in |
| Depth | 3.4 in |
| Height | 43.9 in |
| Weight | 112.43 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | IR receiver, power cord, battery |
| Cables Included | HDMI cable - 6 ft |
| TAA Compliant | Yes |
| Compliant Standards | NDAA, ADA, CEC, CB, LVD, cTUVus, FCC, DisplayPort 1.2 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V |
| Power Consumption Stand by | 0.4 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Display | |
| Pixel Pitch | 0.493 mm |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED |
| Coating | Anti-glare |
| Image Contrast Ratio | 1200:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Backlight Life | 30,000 hour(s) |
| Commercial Features | Auto Source Switching, FailOver |
| Operation Hours / Days | 24 / 7 |
| Additional Features | 10-bit support, color space (CIE 1931) 72%, designed for 24/7 operation, picture-by-picture (PBP), picture-in-picture (PIP), Quadview |
| Connections | |
| Connector Type | 4 x HDMI input ¦ 2 x DisplayPort input ¦ USB (service only) ¦ RS-232 ¦ Infrared input ¦ Headphones ¦ LAN ¦ Audio line-out / SPDIF output ¦ VGA output |
| Remote Control | |
| Type | Remote control |
| Battery Included | Yes |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 10 Watt |
| Speakers | 2 x main channel speaker - 10 Watt |
| Dimensions & Weight (Shipping) | |
| Weight (Shipping) | 138.89 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Ethernet |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 600 mm |
| VESA Compatibility | Yes |
