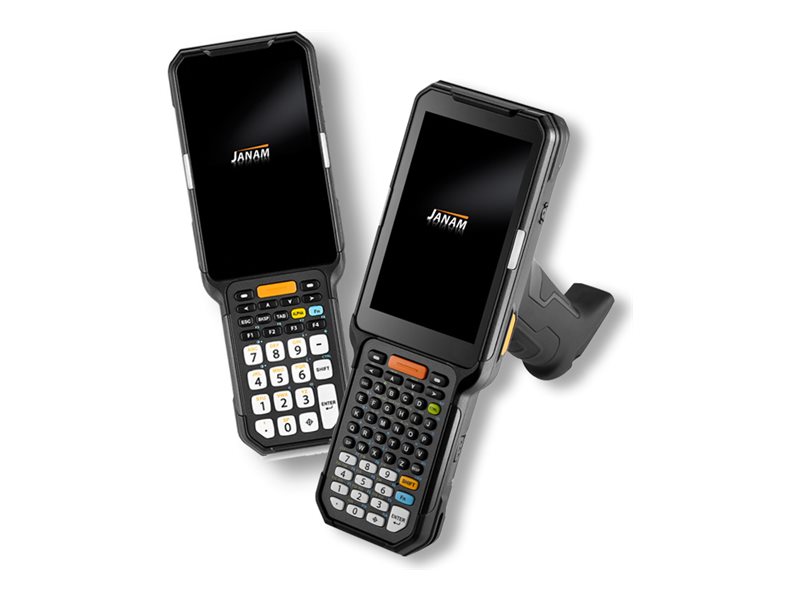

Data collection terminal - rugged - Android 13 - 128 GB - 4.3" IPS (480 x 800) - rear camera - barcode reader - (2D imager) - USB host - microSD slot - NFC, Wi-Fi 6, Bluetooth
| Main Specifications | |
|---|---|
| Product Description | Janam XG5 - data collection terminal - Android 13 - 128 GB - 4.3" |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 13 |
| Display | 4.3" IPS TFT - 480 x 800 - Multi-Touch |
| Processor | MediaTek MT8781 (8-core) |
| Processor Clock Speed | 2.2 GHz |
| Storage | 128 GB |
| RAM | 6 GB |
| Supported Flash Memory Cards | microSD, microSDXC |
| Wireless Connectivity | NFC, 802.11a/b/g/n/ac/d/h/i/k/r/v/ac/ax, Bluetooth 6.0 LE |
| Rear Camera | 13 Megapixel focus: automatic |
| Barcode Reader | Yes (2D imager) |
| RFID Specification | ISO 15693, Mifare, ISO 14443A, ISO 14443B |
| Features | USB host |
| Dimensions (WxDxH) | 3 in x 7.3 in x 8.5 in |
| Weight | 18.55 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 13 |
| Memory | |
| Storage | 128 GB |
| RAM | 6 GB |
| Supported Flash Memory Cards | microSD, microSDXC |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Sensors | Accelerometer, ambient light sensor, proximity sensor |
| Features | LED indicator, drop-resistant, Gun Form Factor, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), Honeywell EX30 near/far imager, 2x2 MU-MIMO technology, Honeywell N5703 imager |
| Vibrating Alert | Yes |
| Compliant Standards | IEC 60950, CB, EMC, IC, FCC, WEEE, IP67, IP65, SAR, RoHS |
| Processor | |
| Processor | MediaTek MT8781 |
| Processor Clock Speed | 2.2 GHz |
| Number of Cores | 8-core |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Software | |
| Preloaded Software | Google Mobile Services |
| Input Device | |
| Type | Alphanumeric keypad |
| Keys Qty | 52 |
| Battery | |
| Technology | Lithium ion |
| Capacity | 5700 mAh |
| Display | |
| Type | 4.3" IPS TFT |
| Resolution | 480 x 800 |
| Touchscreen | Multi-Touch |
| Features | Corning Gorilla glass 3, Daylight Mode, capacitive touch screen |
| Communications | |
| Wireless Connectivity | NFC, 802.11a/b/g/n/ac/d/h/i/k/r/v/ac/ax, Bluetooth 6.0 LE |
| Security Protocols & Features | LEAP, WEP, WPA, WPA2, TKIP, AES, Wi-Fi Direct, PEAP, CCXv4, WPA2-Enterprise, MS-CHAP, MS-CHAPv2, CCKM, WPA-Enterprise |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 7.3 in |
| Height | 8.5 in |
| Weight | 18.55 oz |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| RFID | |
| RFID Specification | ISO 15693, Mifare, ISO 14443A, ISO 14443B |
| Multimedia | |
| Audio | Microphone, speaker |
| Expansion and Connectivity | |
| Expansion Slots | 1 x microSD |
| Interfaces | 1 x USB-C |
| USB Host | Yes |
| Rear Camera | |
| Sensor Resolution | 13 Megapixel |
| Focus Adjustment | Automatic |
