Network surveillance camera - PTZ - outdoor - vandal resistant / impact resistant / weather resistant - color (Day&Night) - 3840 x 2160 - 4K UHD (3840 x 2160) - motorized - audio - GbE - AV1, H.264, H.265, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC, MJPEG - High PoE Class 6
| Main Specifications | |
|---|---|

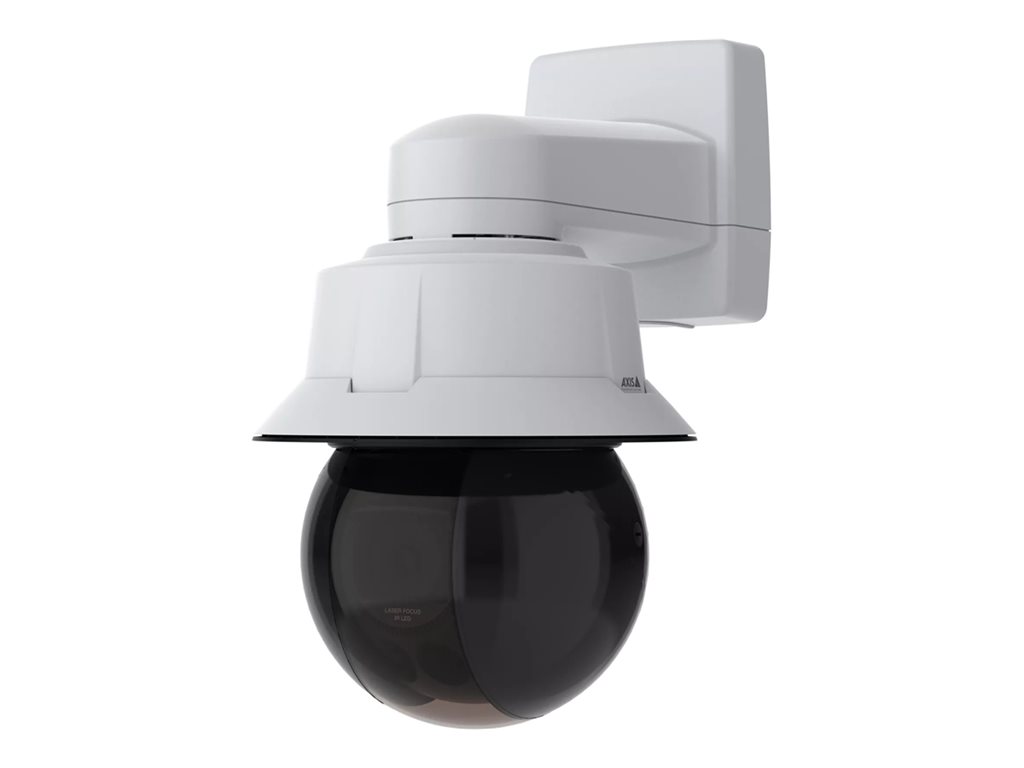

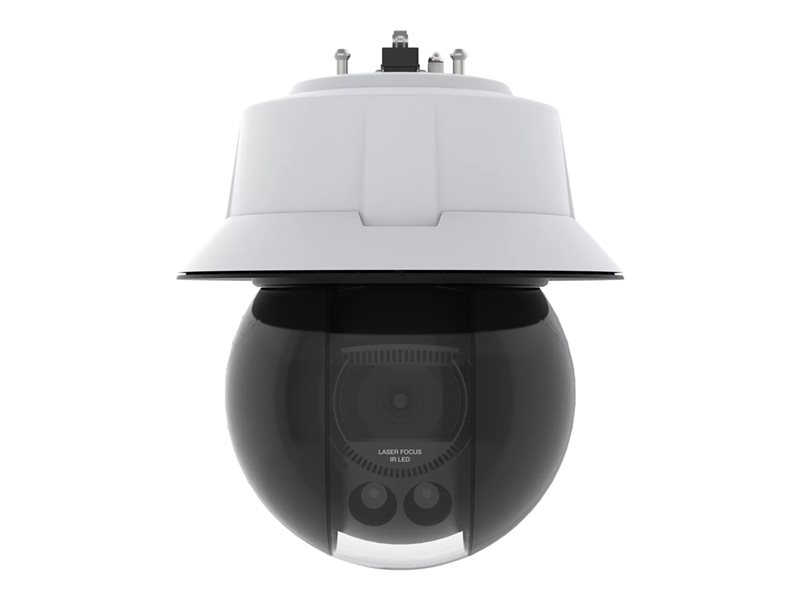

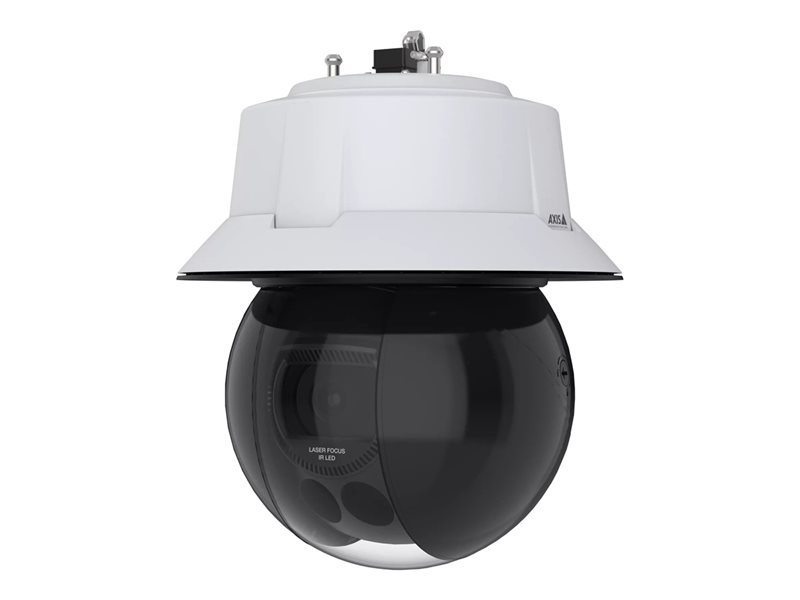

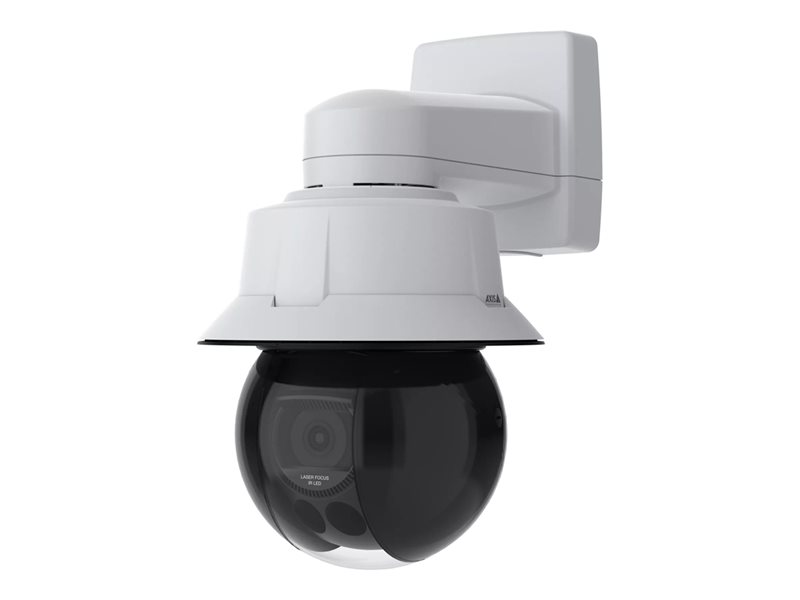

| Product Description | AXIS Q63 Series Q6358-LE - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - outdoor - vandal resistant / impact resistant / weather resistant |
| Audio | Yes |
| Dimensions (WxDxH) | 7.6 in x 7.6 in x 10.3 in |
| Weight | 9.7 lbs |
| Color | White, NCS S 1002-B |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 31 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| Motion Detection | Yes |
| Video Modes | 4K UHD (3840 x 2160) |
| Optical Sensor Type | Progressive Scan CMOS - 1/1.8" |
| Minimum Illumination | 0.1 lux - color - F1.36 - 30 IRE ¦ 0.005 lux - B&W - F1.36 - 30 IRE ¦ 0 lux - infrared LEDs on ¦ 0.2 lux - color - F1.36 - 50 IRE ¦ 0.009 lux - color - F1.36 - 50 IRE |
| Focal Length Control | Motorized zoom |
| Focal Length | 6.91 mm - 214.64 mm |
| Focus Adjustment | Automatic |
| Lens Iris | (P-Iris) |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -90 to +20 |
| Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | High PoE Class 6 |
| Features | AI-powered, Forensic WDR, Lightfinder technology, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, laser focus, infrared-cut filter, Nadir flip, quick-zoom, 300 preset positions, tour recording, control queue, on-screen directional indicator, speed dry, ARTPEC-9 chipset, deep learning processing unit (DLPU), >55 dB SNR, Adaptive Bitrate (ABR), brightness control, chameleon privacy masks, compression, contrast control, defogging, Electronic Image Stabilizer (EIS), exposure control, freeze on PTZ, low latency mode, Multi-Bitrate (MBR), polygon privacy masks, sharpness control, Variable Bitrate (VBR), video streaming indicator, white balance, human analytics, line-crossing detection, object in area, time in area, vehicle analytics, autotracking 2 |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -58 °F - 122 °F; 10 - 100% RH (condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Width | 7.6 in |
| Depth | 7.6 in |
| Height | 10.3 in |
| Weight | 9.7 lbs |
| Localization | United States |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Encryption Algorithm | EAP-TLS, PEAP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | IP66-rated network connector, template, paint paper, Axis High PoE 90 W midspan |
| Compliant Standards | EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, RCM, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1-1, IEC/EN 62471, IEC 60825-1 Class 1, IEC/EN 62262, IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X, NEMA TS-2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207, ISO 12944-6, NIST SP500-267, ETSI EN 303 645, FIPS 140-2 Level 2, EN 50121-4, AS/NZS CISPR 32 Class A, IEEE 802.1x, IP66, RoHS, Directive 2011/65/EU, IEC 63000:2018, REACH, IP67 |
| Color | White, NCS S 1002-B |
| Power | |
| Power Requirements | High PoE Class 6 |
| Power Device | Power injector - external 13.7 Watt |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license, AXIS Companion, AXIS Camera Station |
| Environmental Parameters | |
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - vandal resistant / impact resistant / weather resistant |
| Digital Video Format | AV1, H.264, H.265, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC, MJPEG |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K UHD (3840 x 2160) |
| Digital Zoom | 12 |
| Exposure Range | 1/111000 sec - 1/2 sec |
| Minimum Illumination | 0.1 lux - color - F1.36 - 30 IRE ¦ 0.005 lux - B&W - F1.36 - 30 IRE ¦ 0 lux - infrared LEDs on ¦ 0.2 lux - color - F1.36 - 50 IRE ¦ 0.009 lux - color - F1.36 - 50 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 984 ft |
| Digital Video Capture Resolution | 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| RAM | 4096 MB |
| Flash Memory | 8192 MB |
| Features | AI-powered, Forensic WDR, Lightfinder technology, OptimizedIR, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, laser focus, infrared-cut filter, Nadir flip, quick-zoom, 300 preset positions, tour recording, control queue, on-screen directional indicator, speed dry, ARTPEC-9 chipset, deep learning processing unit (DLPU), >55 dB SNR, Adaptive Bitrate (ABR), brightness control, chameleon privacy masks, compression, contrast control, defogging, Electronic Image Stabilizer (EIS), exposure control, freeze on PTZ, low latency mode, Multi-Bitrate (MBR), polygon privacy masks, sharpness control, Variable Bitrate (VBR), video streaming indicator, white balance, human analytics, line-crossing detection, object in area, time in area, vehicle analytics, autotracking 2 |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 31 x |
| Focal Length | 6.91 mm - 214.64 mm |
| Lens Iris | (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2 - 60.6 |
| Vertical Field of View (degree) | 1.1 - 36.5 |
| Image Sensor | |
| Type | Progressive Scan CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTP, RTCP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, DHCP, ARP, IGMPv2, IGMPv3, SSH, NTCIP, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 550 |
| Tilting | |
| Range (degree) | -90 to +20 |
| Speed (degree/sec) | Up to 500 |
