Analog mixer - 10-channel - rack-mountable
| Main Specifications | |
|---|---|

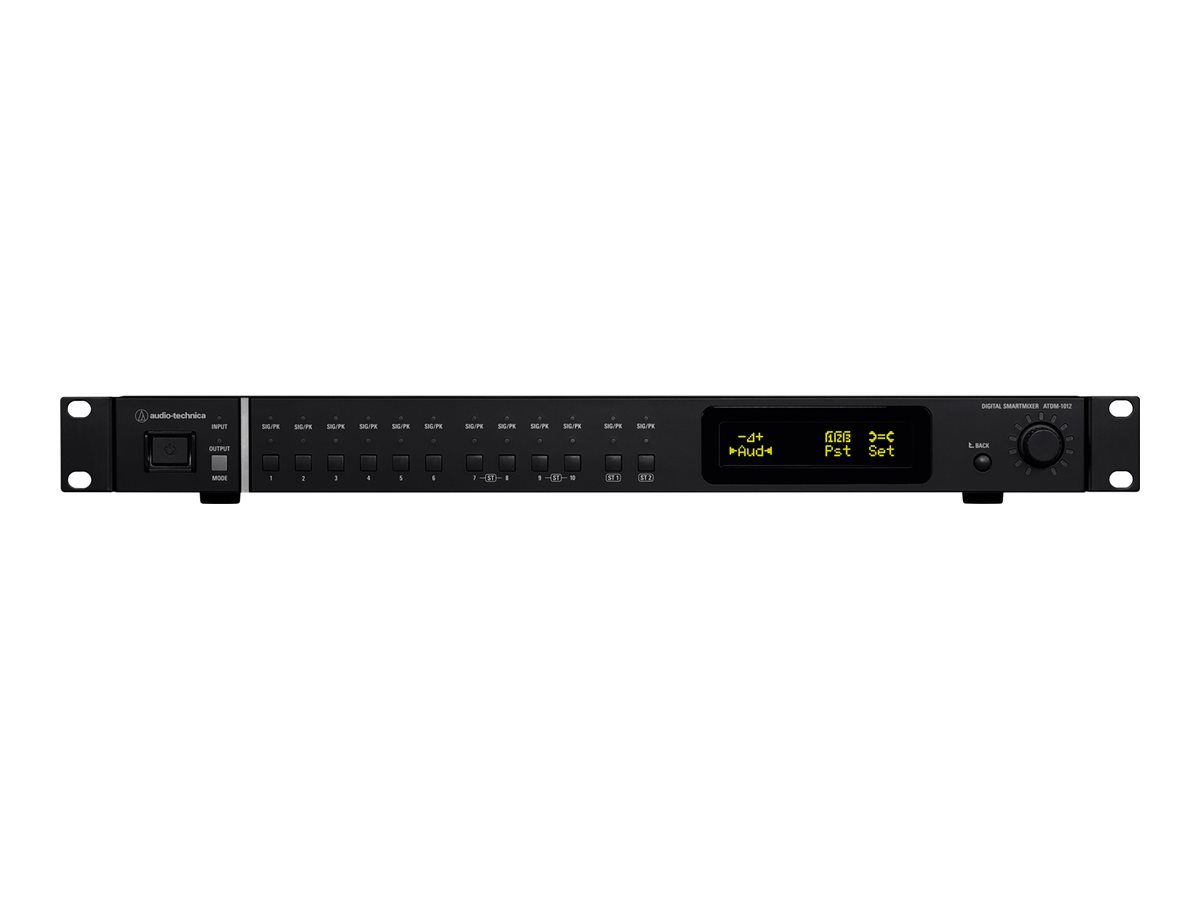

| Product Description | Audio-Technica Digital SmartMixer ATDM-1012 analog mixer - 10-channel |
| Type | Analog mixer - 10-channel - rack-mountable |
| Mic Channels | 10 stereo |
| Line Channels | 10 stereo |
| Mic Preamplifier Gain Level | 64 dB |
| Dimensions (WxDxH) | 19 in - 12.8 in - 1.7 in |
| Weight | 7.94 lbs |
| General | |
| Type | Analog mixer |
| Miscellaneous | |
| Included Accessories | Power cable, 22 Euroblock connectors |
| Connections | |
| Connector Type | 10 x microphone (3 pin terminal block) - rear ¦ 2 x audio line-in (stereo) (3 pin terminal block) - rear ¦ 8 x balanced audio output (3 pin terminal block) - rear ¦ 2 x unbalanced audio output (3 pin terminal block) - rear ¦ 1 x USB (4 pin USB Type B) - rear ¦ 4 x A/B/C/D terminal (RJ-45) - rear ¦ 1 x network (RJ-45) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 12.8 in |
| Height | 1.7 in |
| Weight | 7.94 lbs |
| Mixer | |
| Rack Mount | Rack-mountable |
| Channels Qty (total) | 10-channel |
| Control Types | Knobs |
| Channel Description | |
| Mic Channels | 10 stereo |
| Mic Channels Connector | Terminal block (clamp) |
| Line Channels | 10 stereo |
| Line Channels Connector | Terminal block (clamp) |
| Mic Preamplifier Gain Level | 64 dB |
