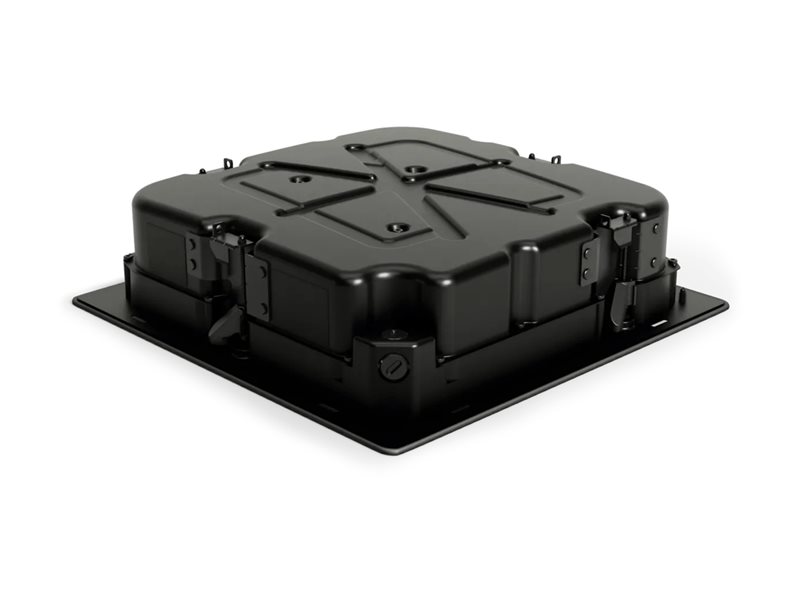

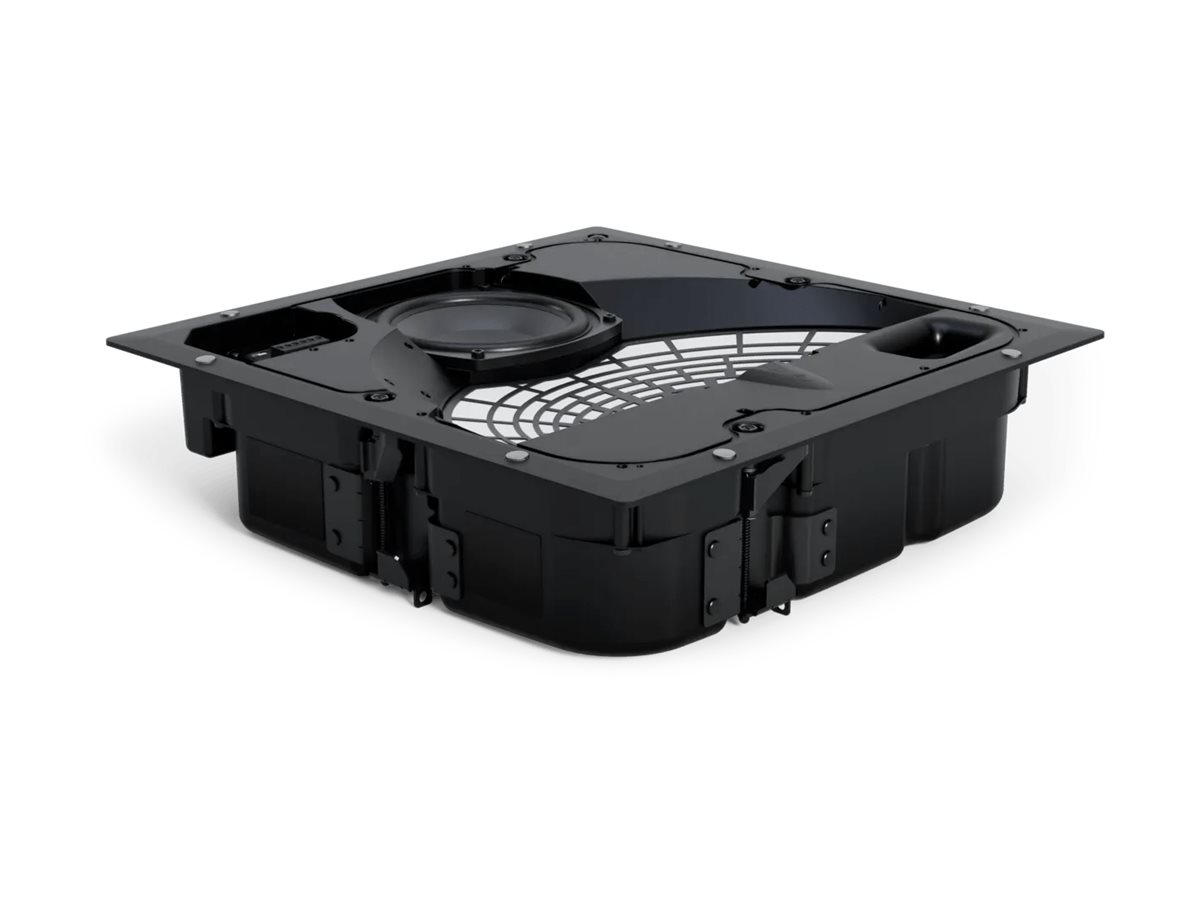

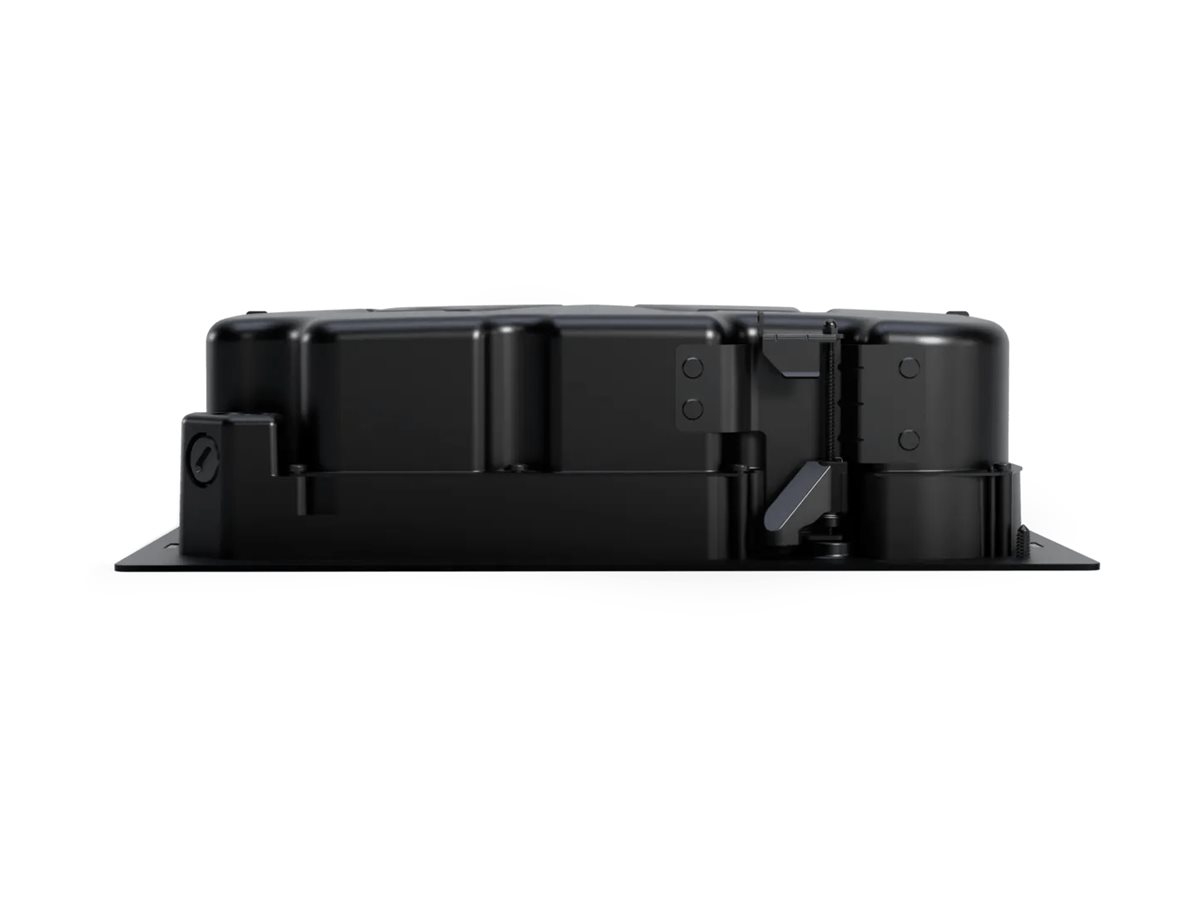

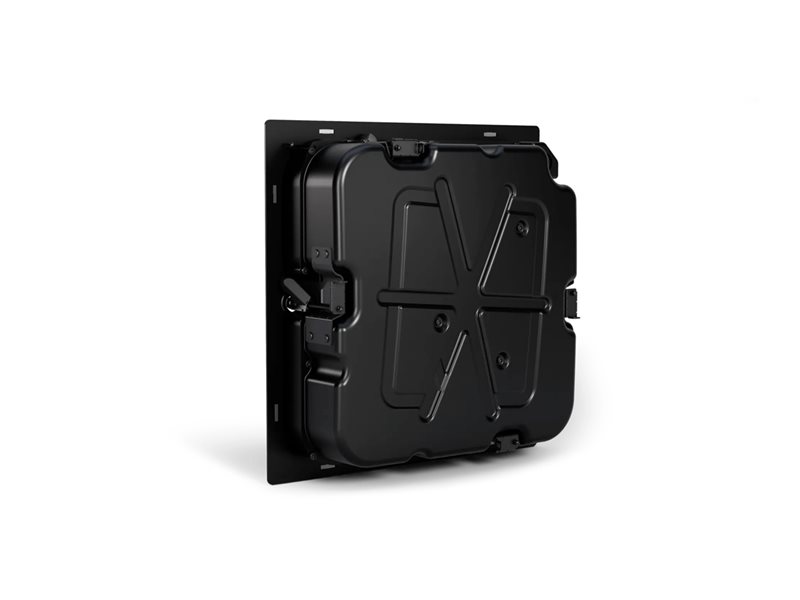

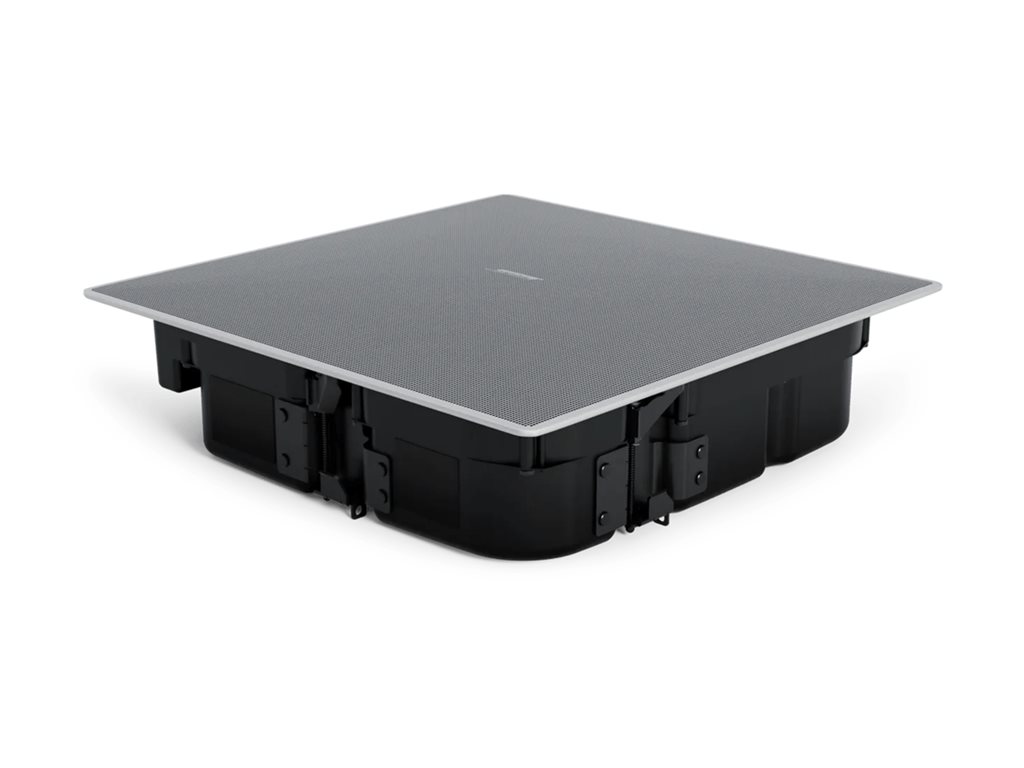

Speaker - for PA system - 32 Watt - 2-way - white, RAL 9003 (grille color - white)
| Main Specifications | |
|---|---|
| Product Description | Bose EdgeMax EM180-LP - speaker - for PA system |
| Product Type | Speaker - for PA system |
| Speaker Type | 2-way - passive |
| Continuous Power | 32 Watt |
| Peak Power | 128 Watt |
| Nominal Impedance | 8 Ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Depth | 3.9 in |
| Color | White, RAL 9003 |
| Dimensions (WxDxH) | 13.3 in x 3.9 in x 13.3 in |
| Weight | 16.75 lbs |
| General | |
| Product Type | Speaker - for PA system |
| Features | PhaseGuide |
| Enclosure Color | White, RAL 9003 |
| Enclosure Material | Engineering plastic, powder-coated steel grille |
| Design Features | Magnetically attached grilles, paintable |

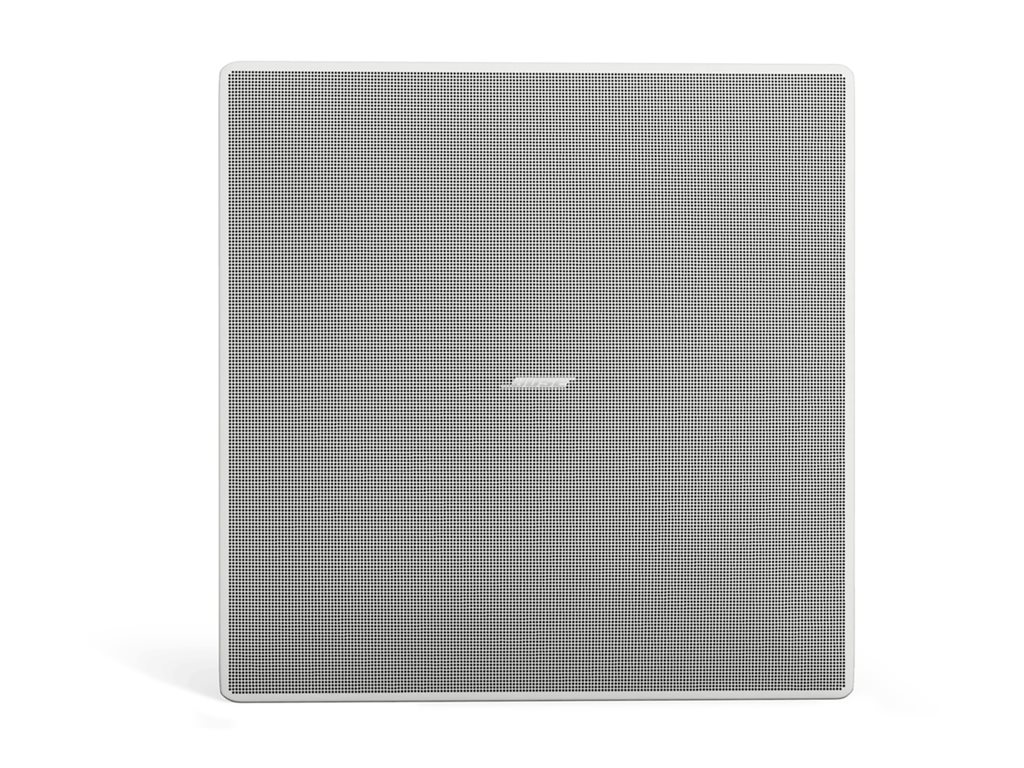

| Grille Color | White |
| Miscellaneous | |
| Included Accessories | Tile bridge, mounting template, paint shield |
| Compliant Standards | UL 1480A, UL 2043 |
| Connections | |
| Connector Type | Speaker input (6-pin Euroblock) |
| Dimensions & Weight | |
| Width | 13.3 in |
| Depth | 3.9 in |
| Height | 13.3 in |
| Weight | 16.75 lbs |
| Speaker System | |
| Speaker Type | 2-way - passive |
| Continuous Power | 32 Watt |
| Peak Power | 128 Watt |
| Frequency Response (-3dB) | 50 - 18000 Hz |
| Frequency Response (-10dB) | 45 - 19000 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 112 dB |
| Sensitivity | 91 dB (1W@1m) |
| Crossover Frequency | 1000Hz |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Coverage | 180° x 80° |
| Recommended Placing | In-ceiling mounted, corner mountable, indoor |
| Controls | Power selector |
| Detachable Grilles | Yes |
| Speaker System Details | |

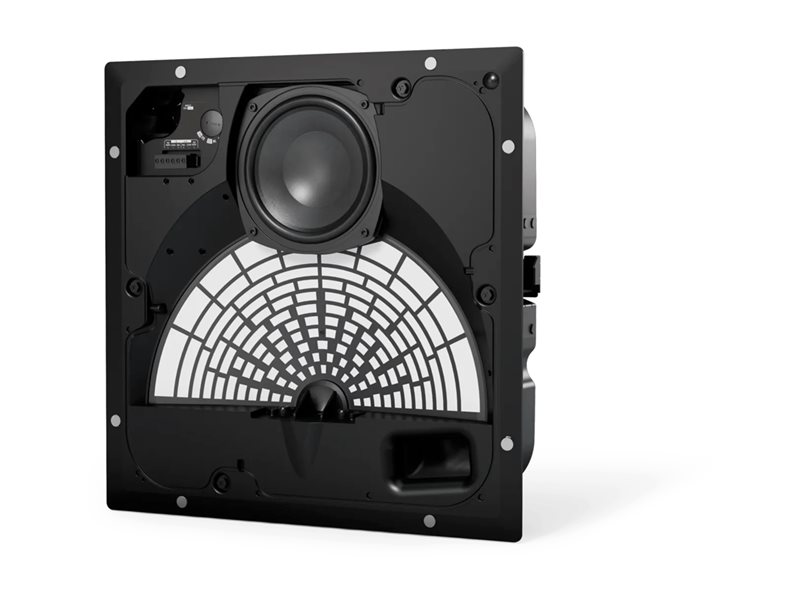

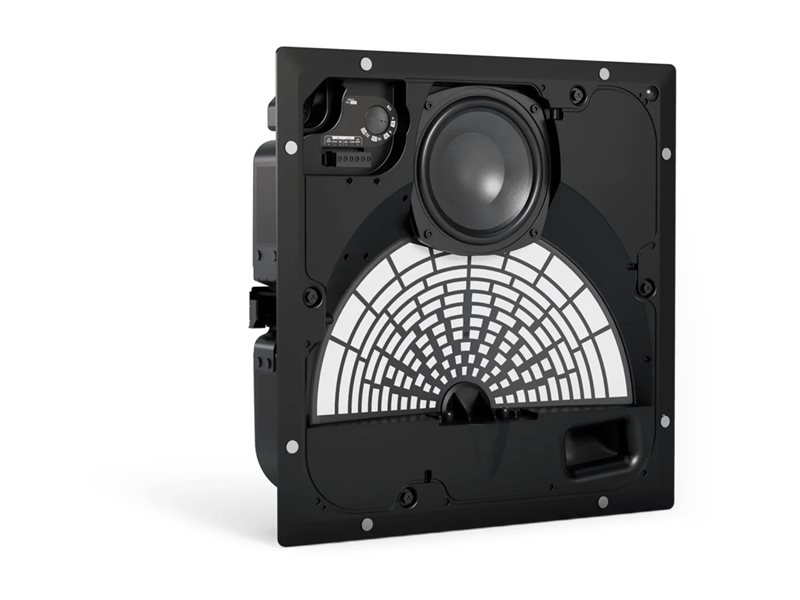

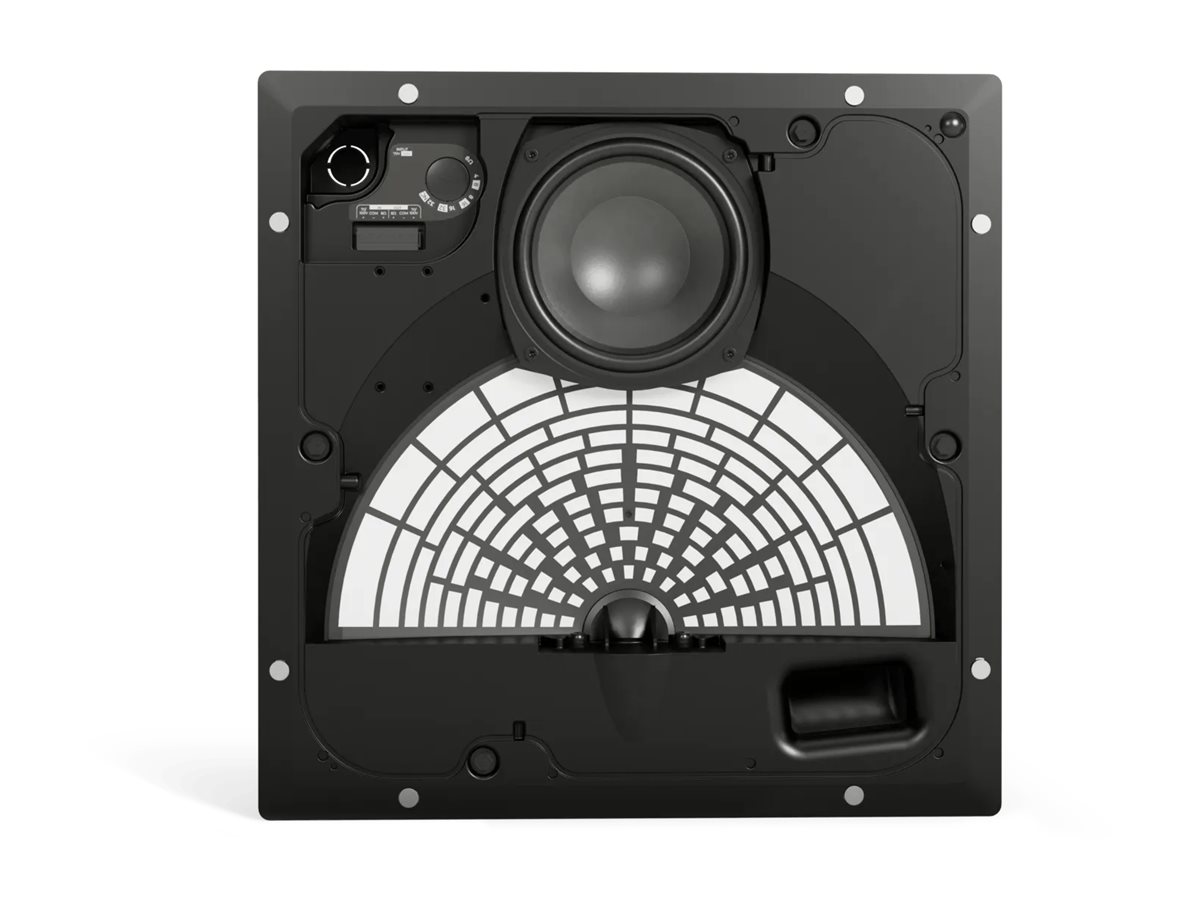

| Driver Details | Speaker: woofer driver - 5.25" ¦ Speaker: tweeter driver - 1.3" - compression driver |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 24.47 lbs |
| Cutout & Mounting Dimensions | |
| Width | 13.6 in |
| Height | 13.6 in |
| Depth | 3.9 in |
