Speakers - 100 Watt - 2-way - coaxial - white, RAL 9003
| Main Specifications | |
|---|---|

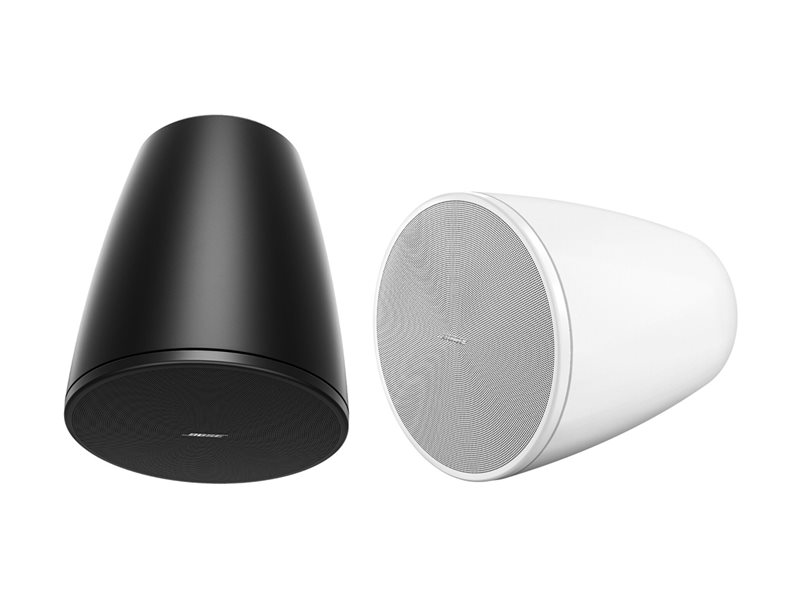

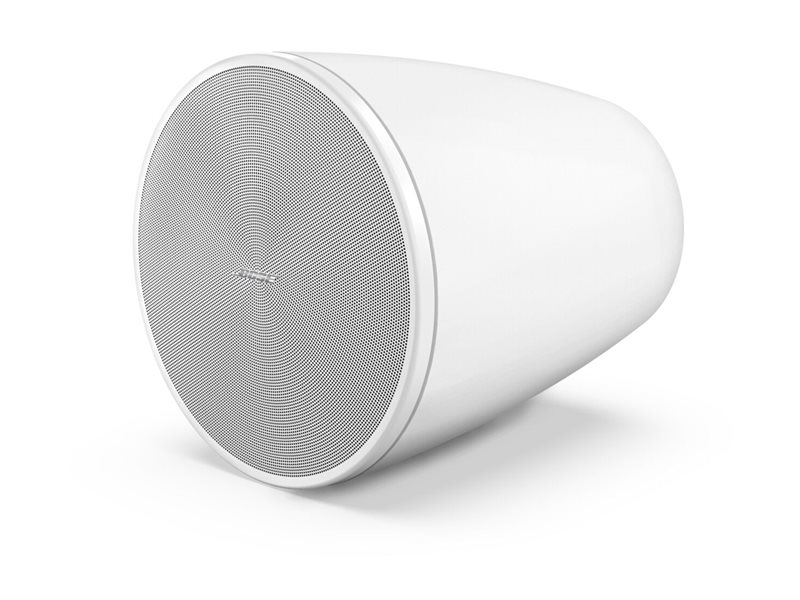

| Product Description | Bose DesignMax DM6PE - speakers |
| Product Type | Speakers |
| Protection | Weather-resistant, UV radiation resistant |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 100 watt |
| Peak Power | 400 watt |
| Nominal Impedance | 8 ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Color | White, RAL 9003 |
| Dimensions (WxDxH) | 14.8 in |
| Dimensions - Diameter | 12.1 in |
| Weight | 12.57 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Speakers |
| Protection | Weather-resistant, UV radiation resistant |
| Enclosure Color | White, RAL 9003 |
| Enclosure Material | Plastic, powder-coated steel grille, aluminum |
| Design Features | Paintable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | 4 cable ties, input panel cover, 2 suspension cable (4.5 m) |
| Compliant Standards | UL 1480A, UL 2239, NFPA 70, NFPA 90A, IEC 529/IP55 |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 149 °F |
| Connections | |
| Connector Type | Speaker input (6-pin Euroblock) |
| Dimensions & Weight | |
| Diameter | 12.1 in |
| Depth | 14.8 in |
| Weight | 12.57 lbs |
| Speaker System | |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 100 watt |
| Peak Power | 400 watt |
| Frequency Response (-3dB) | 75 - 20000 Hz |
| Frequency Response (-10dB) | 62 - 20000 Hz |
| Nominal Impedance | 8 ohm |
| Max Output Level (Max SPL) | 110 dB |
| Sensitivity | 89 dB (1W@1m) |
| Crossover Frequency | 1700Hz |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Coverage | 115° conical |
| Recommended Placing | Pendant, outdoor |
| Controls | Power selector |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 6.5" ¦ Speaker: tweeter driver - 1.25" - neodymium - dome |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 33.09 lbs |
