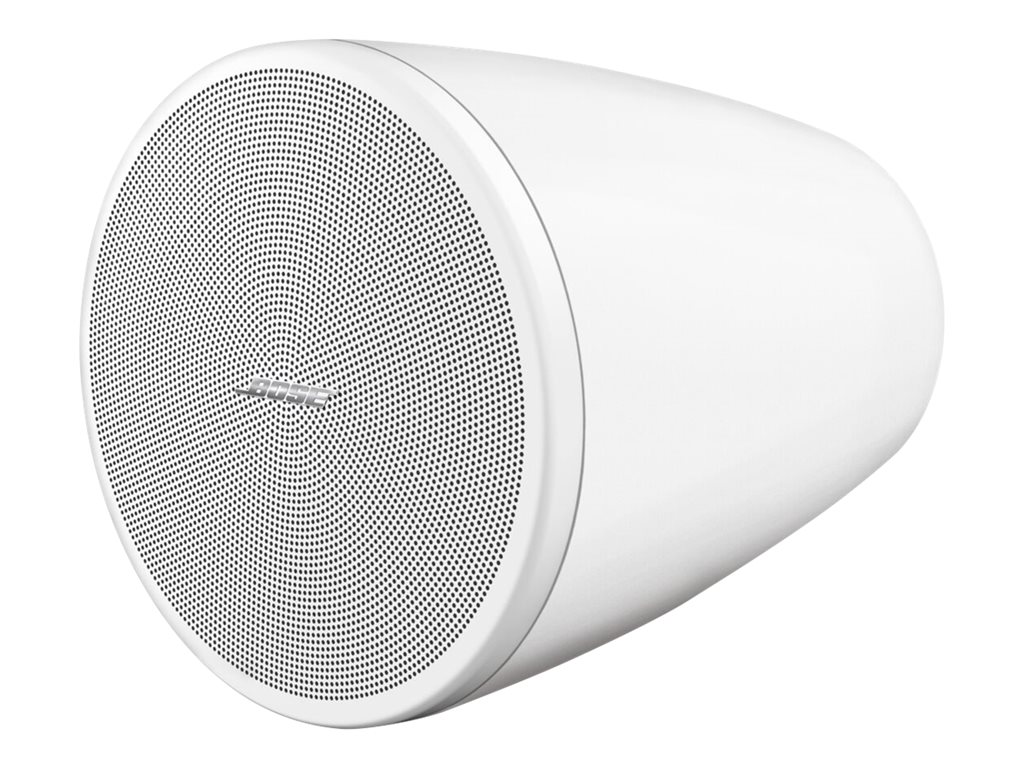

Speakers - 25 Watt - 2-way - coaxial - white, RAL 9003
| Main Specifications | |
|---|---|
| Product Description | Bose DesignMax DM3P - speakers |
| Product Type | Speakers |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 25 Watt |
| Peak Power | 100 Watt |
| Nominal Impedance | 8 Ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Color | White, RAL 9003 |
| Dimensions (WxDxH) | 9.8 in |
| Dimensions - Diameter | 8.1 in |
| Weight | 5.51 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Speakers |
| Enclosure Color | White, RAL 9003 |
| Enclosure Material | Plastic, powder-coated steel grille |
| Design Features | Paintable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | 2 suspension cables (4.5 m), 2 cable fasteners, 2 cable fastener tools, 8 cable ties |
| Compliant Standards | UL 1480A, UL 2239, NFPA 70, NFPA 90A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Connections | |
| Connector Type | Speaker input (6-pin Euroblock) |
| Dimensions & Weight | |
| Diameter | 8.1 in |
| Depth | 9.8 in |
| Weight | 5.51 lbs |
| Speaker System | |
| System Components | 2 speakers |
| Speaker Type | Coaxial - 2-way - passive |
| Continuous Power | 25 Watt |
| Peak Power | 100 Watt |
| Frequency Response (-3dB) | 85 - 20000 Hz |
| Frequency Response (-10dB) | 75 - 20000 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 99 dB |
| Sensitivity | 84 dB (1W@1m) |
| Crossover Frequency | 1700Hz |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Coverage | 130° conical |
| Recommended Placing | Pendant, indoor |
| Controls | Power selector |
| Speaker System Details | |
| Driver Details | Speaker: woofer driver - 3.25" ¦ Speaker: tweeter driver - 0.75" - neodymium - dome |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 15.43 lbs |
