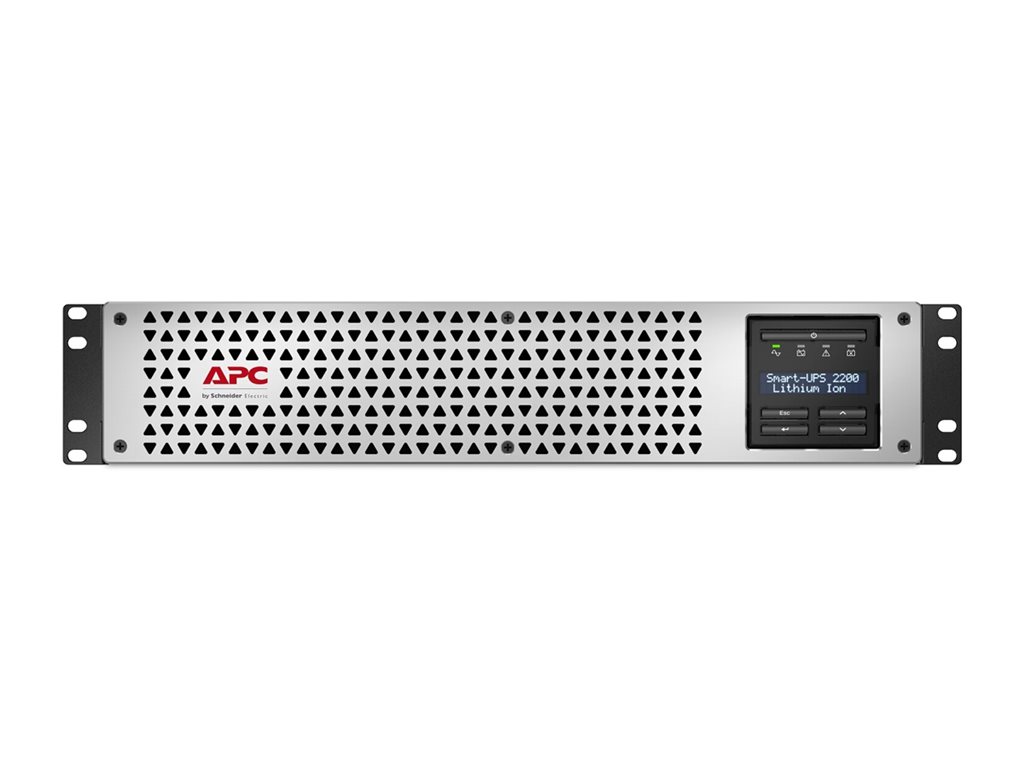

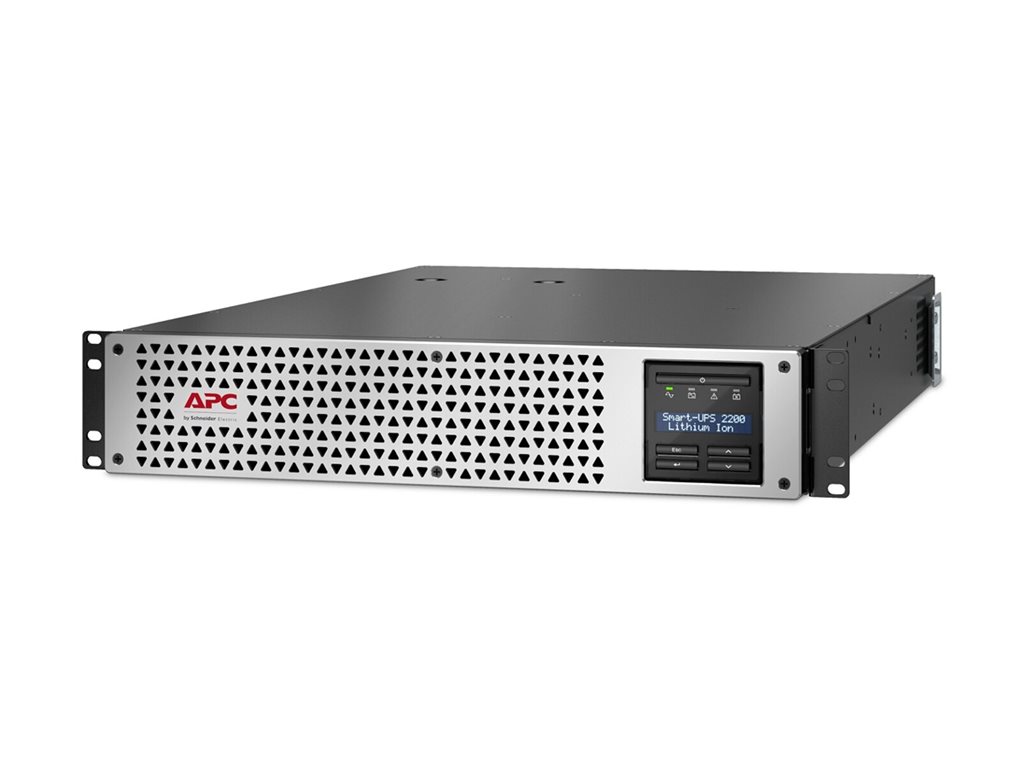

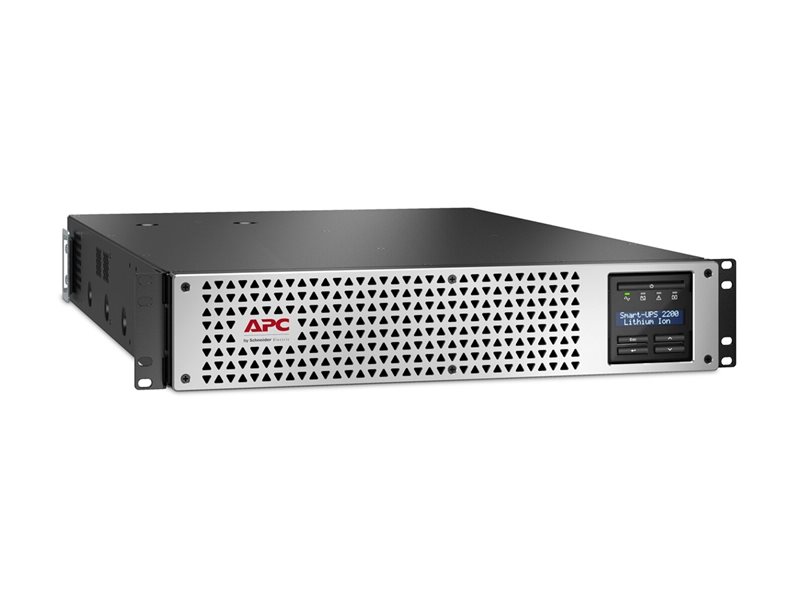

UPS (rack-mountable) - 2 NEMA 5-20R + 6 NEMA 5-15R outlets, LCD, line interactive, SmartConnect port, SmartSlot - AC 120 V - 1.98 kW - 2200 VA - 1-phase - lithium ion - output connectors: 8 - 2U - black with silver front bezel - APC Take-Back - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | APC Smart-UPS - UPS - 2 NEMA 5-20R + 6 NEMA 5-15R outlets, LCD, line interactive, SmartConnect port, SmartSlot - 1.98 kW - 2200 VA - Li-Ion - TAA Compliant |
| Device Type | UPS - rack-mountable |
| Rack Size | 2U |
| Weight | 70.33 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Power Capacity | 1.98 kW / 2200 VA |
| Input Connectors | 1 x power NEMA L5-30P |
| Output connectors | 2 x power NEMA 5-20R ¦ 6 x power NEMA 5-15R |
| Battery | Lithium ion lithium ion |
| Batteries Qty | 1 |
| Run Time (Up To) | 7.7 min at full load |
| Included Accessories | Rack mounting brackets |
| Color | Black with silver front bezel |
| Pricing Type | APC Take-Back |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17 in x 26.9 in x 3.4 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Color | Black with silver front bezel |
| Expansion / Connectivity | |
| Interfaces | 1 x SmartConnect ¦ USB |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years ¦ Limited warranty - battery - 2 years |
| Miscellaneous | |
| Included Accessories | Rack mounting brackets |
| Cables Included | Power cable - integrated - 8 ft |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 150000 US Dollars |
| Features | LCD display, audible alarm, visible alarm, emergency power off |
| Compliant Standards | cULus, Energy Star 2.0, IP20, EU RoHS, REACH |
| Pricing Type | APC Take-Back |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dB |
| Battery | |
| Quantity | 1 |
| Technology | Lithium ion lithium ion |
| Recharge Time | 2 hours |
| Transfer Time | 10 ms |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 2 x power NEMA 5-20R ¦ 6 x power NEMA 5-15R |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Capacity | 1.98 kW / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 530 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.6% at 25% Load, 98.8% at 50% Load, 98.7% at 75% Load, 98.4% at 100% Load |
| Total Harmonic Distortion (THD) | 5 % |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 26.9 in |
| Height | 3.4 in |
| Weight | 70.33 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 38.6 in |
| Shipping Depth | 23.6 in |
| Shipping Height | 10 in |
| Shipping Weight | 94.05 lbs |
| Sustainability Information | |
| ENERGY STAR | Yes |
