AI PC - tiny Core Ultra 5 225T / up to 4.9 GHz - RAM 32 GB - SSD 512 GB - TCG Opal Encryption, NVMe - Intel Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - raven black - Lenovo TopSeller
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkCentre M70q Gen 6 - tiny - AI PC - Core Ultra 5 225T 2.5 GHz - 32 GB - SSD 512 GB - English |
| Type | Personal computer - tiny - AI PC |
| Localization | Language: English / region: United States |
| Processor | Intel Core Ultra 5 (Series 2) 225T / 2.5 GHz (up to 4.9 GHz, (10-core) |
| Processor Main Features | Intel Smart Cache |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Cache Memory | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | 32 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 512 GB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption, NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel Graphics shared video memory (UMA) - up to 4 TOPS |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 |
| Keyboard | English |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | Lenovo AI Now |
| Microsoft Copilot | Yes |
| Color | Raven black |
| Dimensions (WxDxH) | 7 in x 7.2 in x 1.4 in |
| Weight | 2.6 lbs |
| Manufacturer Selling Program | Lenovo TopSeller |
| Environmental Standards | TCO Certified, generation 10, for desktops, ENERGY STAR Qualified EPEAT Gold |
| Carbon Footprint | 253 kg carbon emissions |
| Manufacturer Warranty | Limited warranty - 3 years - on-site |
| General | |
| Type | Personal computer |
| AI Level | AI PC |
| Product Form Factor | Tiny |
| Built-in Devices | Speaker |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Raven black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Slots | 1 (total) / 0 (free) x M.2 Card (for WLAN) ¦ 2 (total) / 1 (free) x M.2 Card (for SSD) |

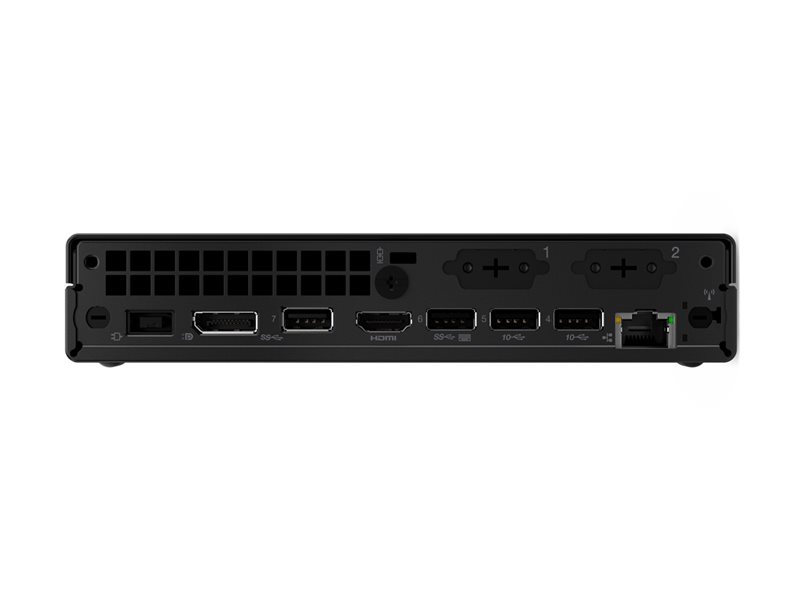

| Interfaces | 3 x USB 3.2 Gen 2 (1 front, 2 rear) ¦ 1 x USB 3.2 Gen 2 (1 in front) (Always On, fast-charging (5V, 2.1A)) ¦ 1 x USB-C 3.2 Gen 2 (1 in front) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x USB 3.2 Gen 1 (1 rear) (supports SmartPower On) ¦ 1 x USB 3.2 Gen 1 (1 rear) ¦ 1 x DisplayPort 1.4a ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 1 x DisplayPort 1.4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | Vertical stand |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, TCG Certified |
| Manufacturer Selling Program | Lenovo TopSeller |
| RAM | |
| Installed Size | 32 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Dual channel memory architecture |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Interface (Bus) Type | M.2 Card |
| Ethernet Controller | Intel I219-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Wake on LAN (WoL), dual stream (2x2) |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 90 watt |
| Efficiency | 89% |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
| Cache Memory | |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Graphics shared video memory (UMA) - up to 4 TOPS |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 3 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | Lenovo AI Now |
| Microsoft Copilot | Yes |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 x4 |
| Features | TCG Opal Encryption, NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 7.2 in |
| Height | 1.4 in |
| Weight | 2.6 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.5 in |
| Shipping Depth | 19.2 in |
| Shipping Height | 10.5 in |
| Shipping Weight | 6.88 lbs |
| Keyboard | |
| Keyboard Name | Lenovo Traditional Keyboard |
| Interface | USB |
| Localization & Layout | English |
| Mouse | |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 (Series 2) 225T |
| Clock Speed | 2.5 GHz (P-core) / 1.9 GHz (E-core) |
| Max Turbo Speed | 4.9 GHz (P-core) / 4.4 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 22 MB |
| Processor Main Features | Intel Smart Cache |
| Chipset Type | Intel Q870 |
| Sustainability Information | |
| TCO Certified | TCO Certified, generation 10, for desktops |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 9.0 |
| Carbon Footprint | 253 kg carbon emissions |
| Total CF/unit Standard Deviation (kg CO2e) | 52 |
| PAIA Version | 1.4.6 |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Total Processor Performance Up To (TOPS) | 23 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
