Wireless router 3-port switch - 1GbE - Wi-Fi 5 - Dual Band
| Main Specifications | |
|---|---|

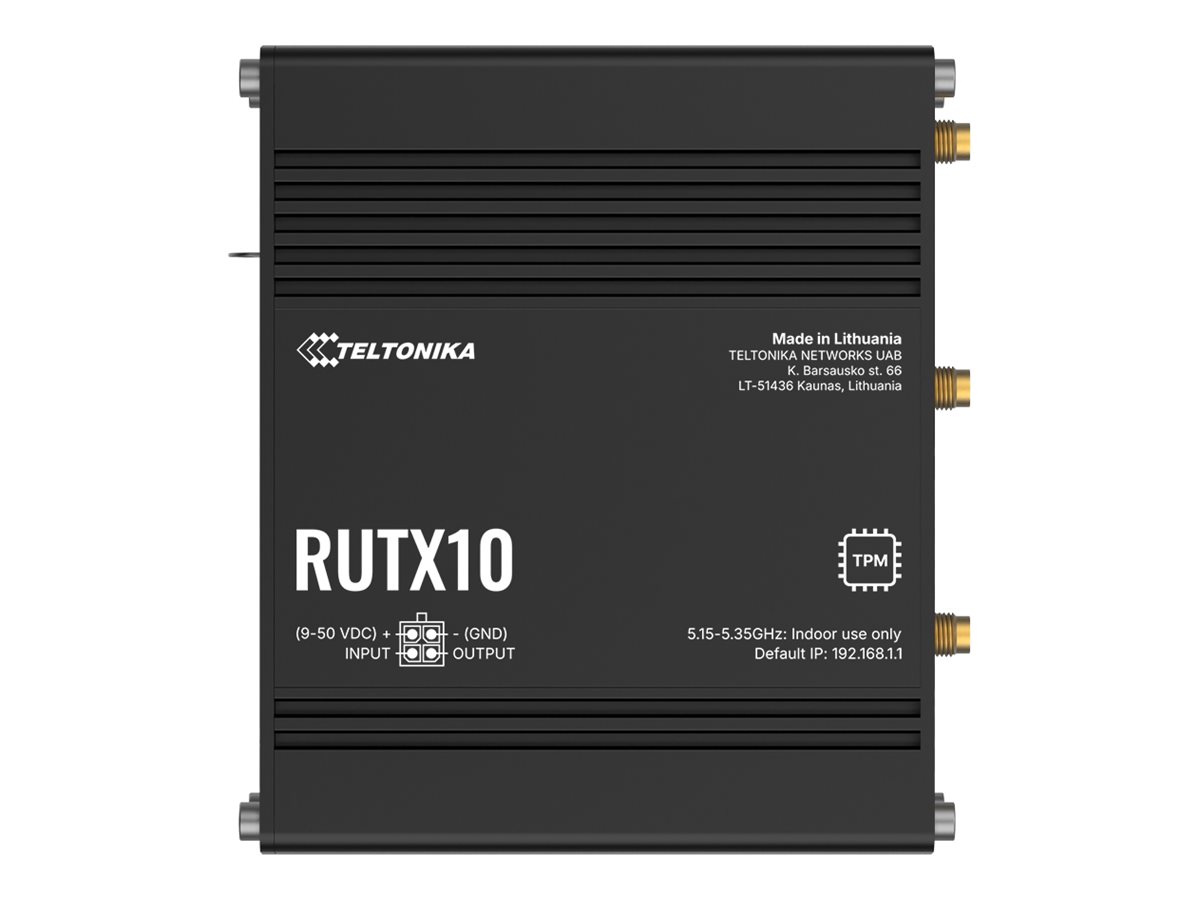

| Product Description | Teltonika RUTX10 - wireless router - Bluetooth, Wi-Fi 5 |
| Device Type | Wireless router - 3-port switch (integrated) |
| WAN Ports Qty | 1 |
| Data Link Protocol | IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.0 LE |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 867 Mbps |
| Capacity | Simultaneous connections: up to 150 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, PPTP, L2TP, IPSec |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, NHRP, policy-based routing (PBR), VRRP, VXLAN |
| Platform | ThingWorx, Cumulocity, Clouds of Things, Azure IoT Hub |
| Remote Management Protocol | CLI, SSH, Telnet, HTTP, HTTPS, SMPP, MQTT, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC |
| VoIP Protocols | H.323, SIP |
| Features | Auto-uplink (auto MDI/MDI-X), dual band, MU-MIMO technology, Access Point operational mode, station operational mode, ESSID stealth mode, allow/block list, BSS Coloring, wireless QR code generator, TravelMate, 802.1x authentication, DMZ support, NAT support, NAT64 support, DDos attack prevention, VLAN support, tag-based VLANs, Web Filtering, TPM 2.0, PPP, WOL, ICMP, port forwarding, hotspot captive portal, DHCP relay, DHCP server, dynamic IP mode, QoS, SQM, WMM support, DDNS, DNS over HTTPS, load balancing, network backup, OpenVPN client, OpenVPN server, SSHFS support, VRF, GRE tunneling, SSTP client instance support, Tinc encryption, WireGuard, ZeroTier VPN client support, Tailscale encryption, router mode, Modbus compatible, MQTT support, DNP3 outstation, DNP3 station, DLMS support, FOTA, SNMP trap, Teltonika RMS, NTRIP, anodized aluminum housing, DMVPN, traffic management |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11k, IEEE 802.11v, IEEE 802.1x, UPnP, IEEE 802.11e, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Power | DC 9 - 50 V |
| Dimensions (WxDxH) | 4.5 in x 3.7 in x 1.3 in |
| Weight | 12.52 oz |
| Localization | United States |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Wireless router - 3-port switch (integrated) |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.0 LE |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 867 Mbps |
| Capacity | Simultaneous connections: up to 150 |
| Network / Transport Protocol | TCP, UDP, IPv4, IPv6, NTP, DNS, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, PPTP, L2TP, IPSec |
| Routing Protocol | Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, NHRP, policy-based routing (PBR), VRRP, VXLAN |
| Remote Management Protocol | CLI, SSH, Telnet, HTTP, HTTPS, SMPP, MQTT, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC |
| Encryption Algorithm | WPA2-Enterprise, PEAP, WPA-PSK, WPA2-PSK, WPA-EAP, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12, TLS, SSL, 128-bit AES, 128-bit AES-GCM, 192-bit AES, 192-bit AES-GCM, 256-bit AES, 256-bit AES-GCM, 3DES, DES |
| Authentication Method | X.509 certificates, TACACS+, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Features | Auto-uplink (auto MDI/MDI-X), dual band, MU-MIMO technology, Access Point operational mode, station operational mode, ESSID stealth mode, allow/block list, BSS Coloring, wireless QR code generator, TravelMate, 802.1x authentication, DMZ support, NAT support, NAT64 support, DDos attack prevention, VLAN support, tag-based VLANs, Web Filtering, TPM 2.0, PPP, WOL, ICMP, port forwarding, hotspot captive portal, DHCP relay, DHCP server, dynamic IP mode, QoS, SQM, WMM support, DDNS, DNS over HTTPS, load balancing, network backup, OpenVPN client, OpenVPN server, SSHFS support, VRF, GRE tunneling, SSTP client instance support, Tinc encryption, WireGuard, ZeroTier VPN client support, Tailscale encryption, router mode, Modbus compatible, MQTT support, DNP3 outstation, DNP3 station, DLMS support, FOTA, SNMP trap, Teltonika RMS, NTRIP, anodized aluminum housing, DMVPN, traffic management |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11r, IEEE 802.11w, IEEE 802.11s, IEEE 802.11k, IEEE 802.11v, IEEE 802.1x, UPnP, IEEE 802.11e, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IP30, UKCA, FCC, EAC, UCRF, CITC, ICASA, ANRT, IC, NOM, UL, CSA, ANATEL, Giteki, CB, RCM, ETA, WPC, MTCTE, EN 61000-4-2:2009, EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 301 489-1 V2.2.3, EN 301 489-17 V3.3.1, EN 301 489-3 V2.3.2, EN 61000-3-3:2013 + A1:2019 + A2:2021, FCC 47 CFR Part 15 Subpart B, CISPR 32:2015 + A1:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-3:2006 + A1:2008 + A2:2010, EN IEC 61000-4-3:2020, ICES-003:2020 Issue 7, EN 61000-4-11:2004, EN 61000-4-11:2020, EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 300 440 V2.2.1, AS/NZS 4268:2017+A1:2021, AS/NZS 62368.1:2022, EN IEC 62311:2020, EN IEC 62368-1:2020 + A11:2020, FCC 47 CFR Part 15 Subpart C, FCC 47 CFR Part 15 Subpart E, IEC 62368-1:2018, RSS-102 Issue 6, USB / USB 2.0 |
| Processor | 1 x ARM Quad Core Cortex-A7 717 MHz |
| RAM | 256 MB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | LAN, power, 2.4 GHz, 5 GHz |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Antenna: 2 x RP-SMA - Wi-Fi ¦ Antenna: 1 x RP-SMA - Bluetooth ¦ Digital input: 1 x 4 pin power ¦ Digital output: 1 x 4 pin power ¦ USB: 1 x 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | 2 x Wi-Fi antennas, Bluetooth antenna, power adapter (US) |
| Cables Included | Network cable - 5 ft |
| Localization | United States |
| Power | |
| Power Device | External power adapter - 18 watt |
| Voltage Required | DC 9 - 50 V |
| Software / System Requirements | |
| OS Provided | RutOS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 3.7 in |
| Height | 1.3 in |
| Weight | 12.52 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.6 in |
| Shipping Depth | 4.2 in |
| Shipping Height | 1.4 in |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | ThingWorx, Cumulocity, Clouds of Things, Azure IoT Hub |
| Communications Technology | Wi-Fi |
