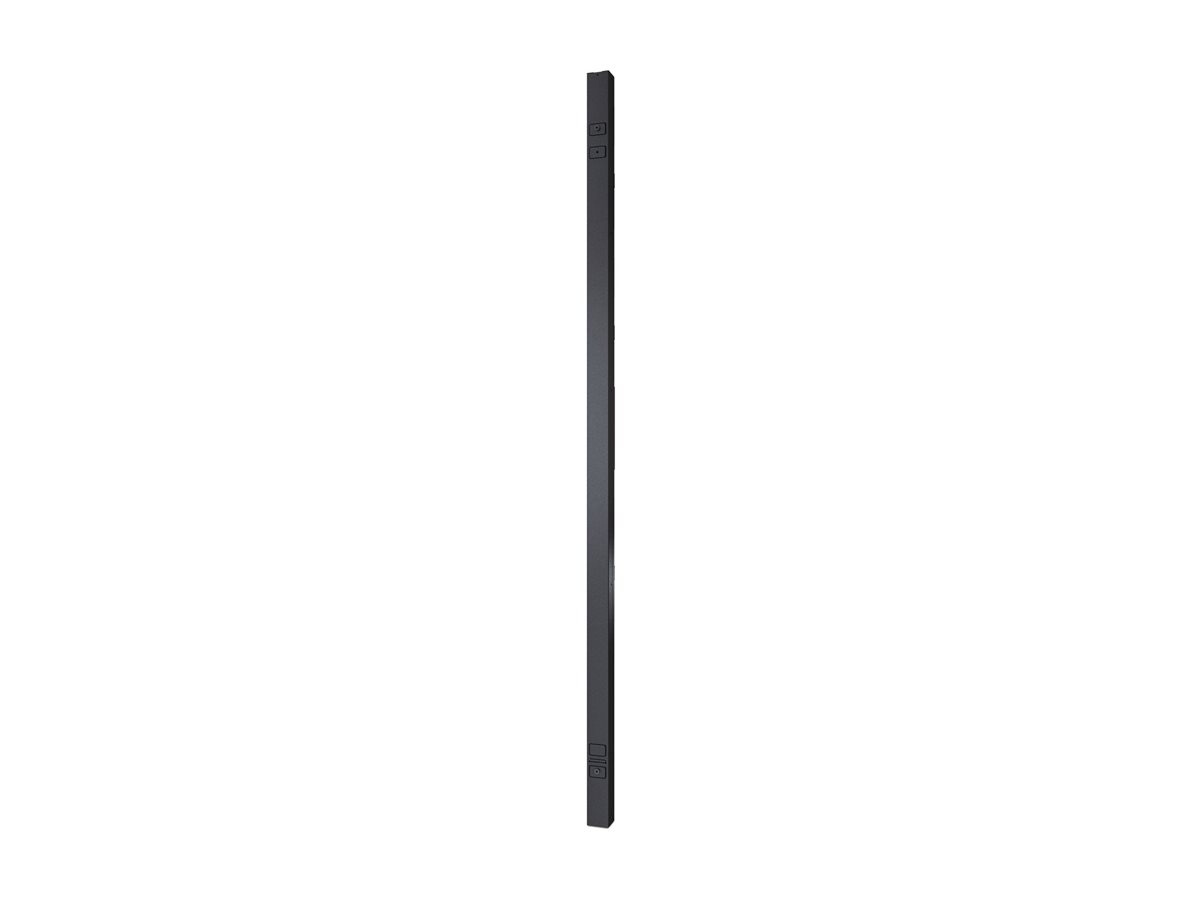

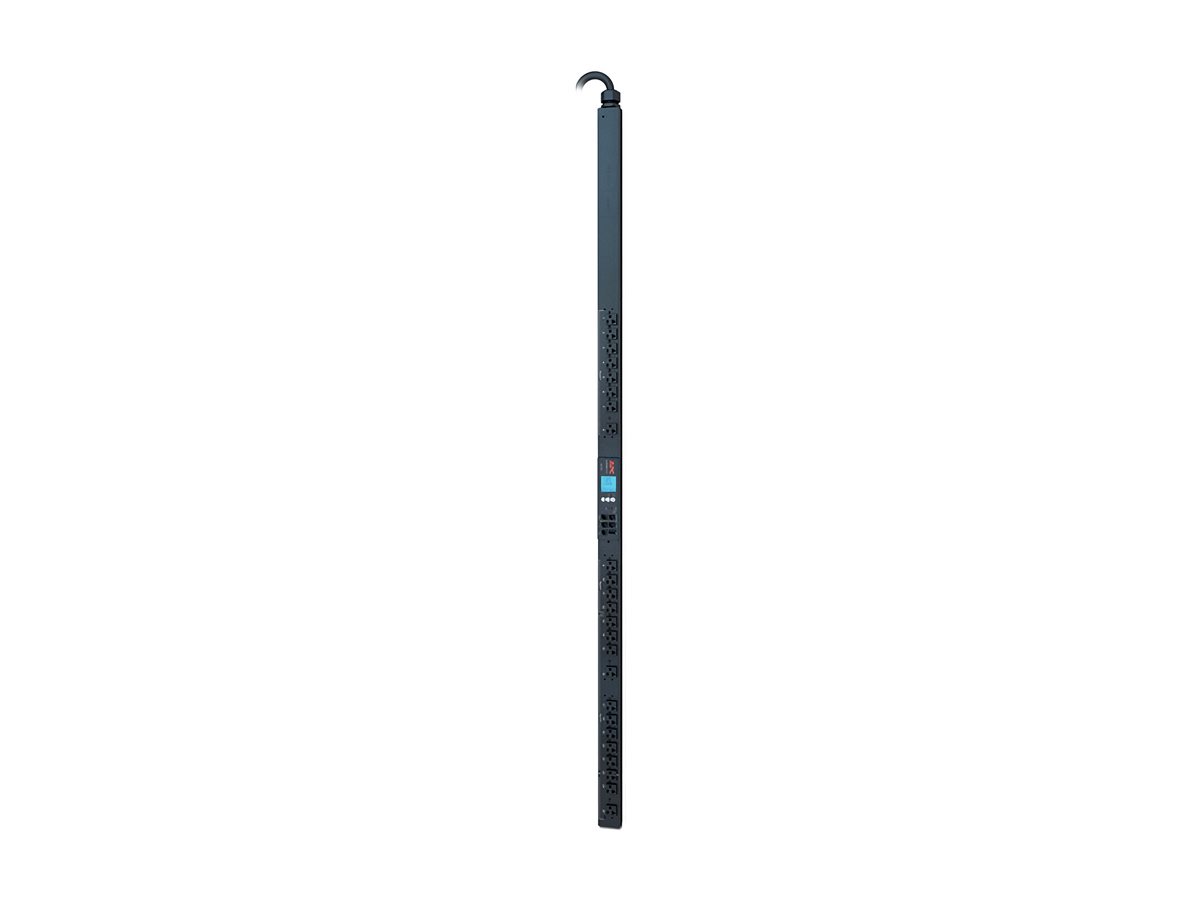

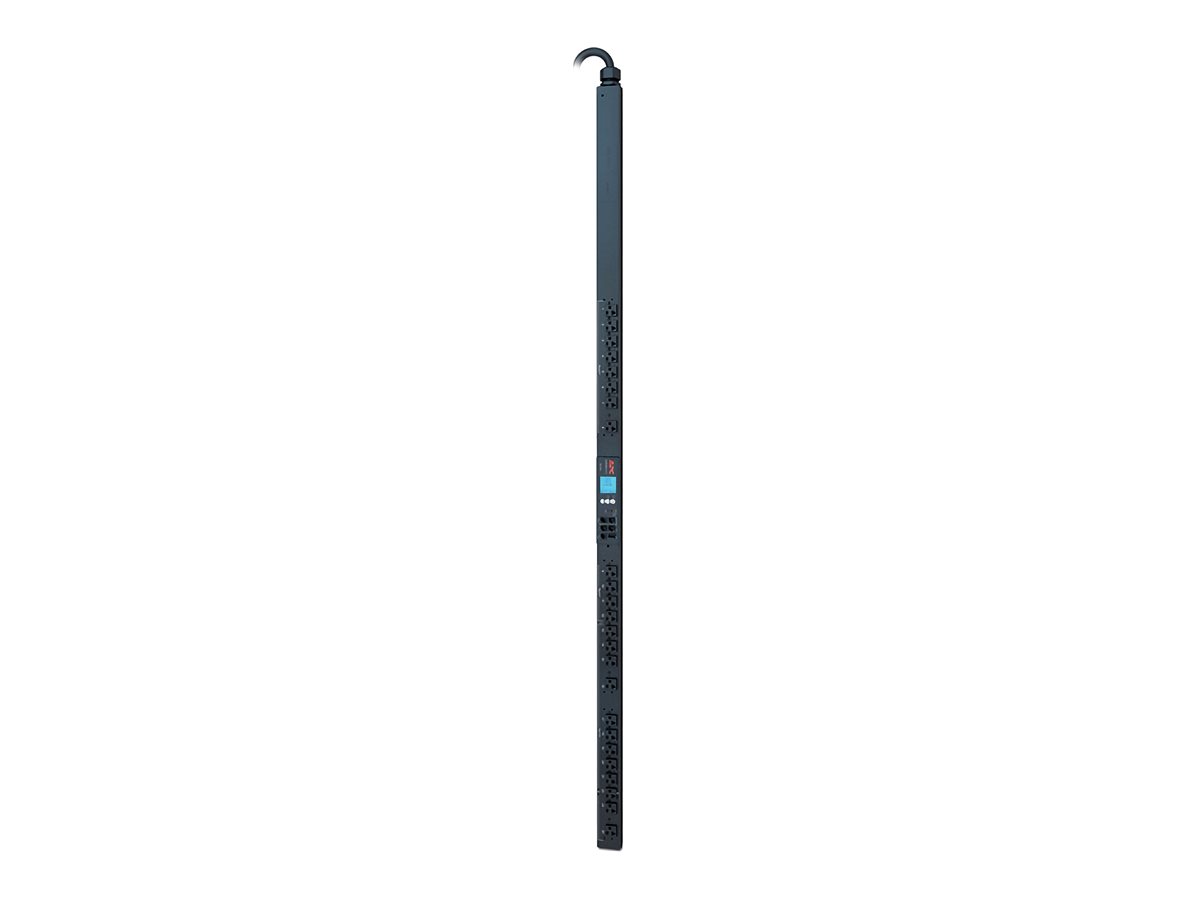

Power distribution unit (rack-mountable) - switched, 20A - AC 208 V - 6 kW - 6000 VA - 3-phase - Ethernet 10/100, USB, serial - input: NEMA L21-20P - output connectors: 24 (NEMA 5-20R) - 0U - 6 ft cord - United States - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | APC NetShelter - power distribution unit - switched, 20A - 6 kW - 6000 VA - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 6 ft |
| Rack Size | 0U |
| Weight | 15.37 lbs |
| Localization | United States |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 120 V |
| Power Capacity | 6 kW / 6000 VA |
| Input Connectors | 1 x power NEMA L21-20P |
| Output connectors | 24 x power NEMA 5-20R |
| Networking | Ethernet 10/100, USB, serial |
| Remote Management Protocol | SNMP, CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, RADIUS, Telnet |
| Included Accessories | Rack mounting brackets |
| Color | Black |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 2.2 in x 1.7 in x 70.5 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 6 ft |
| Color | Black |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x sensor ¦ 1 x USB - 4 pin USB Type A ¦ 1 x serial - RJ-12 ¦ 2 x PDU link |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Miscellaneous | |
| Included Accessories | Rack mounting brackets |
| Cables Included | AC input cable 6 ft ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, reset button, LCD display, daisy chain functionality |
| Compliant Standards | cUL, FCC Part 15 A, ICES-003, UL 60950-1, EU RoHS, REACH |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB, serial |
| Remote Management Protocol | SNMP, CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, RADIUS, Telnet |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-20P |
| Power Output Connectors Details | 24 x power NEMA 5-20R |
| Output Voltage | AC 120 V |
| Max Electric Current | 16 A |
| Power Capacity | 6 kW / 6000 VA |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 1.7 in |
| Height | 70.5 in |
| Weight | 15.37 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.3 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 79 in |
| Shipping Weight | 20.94 lbs |
