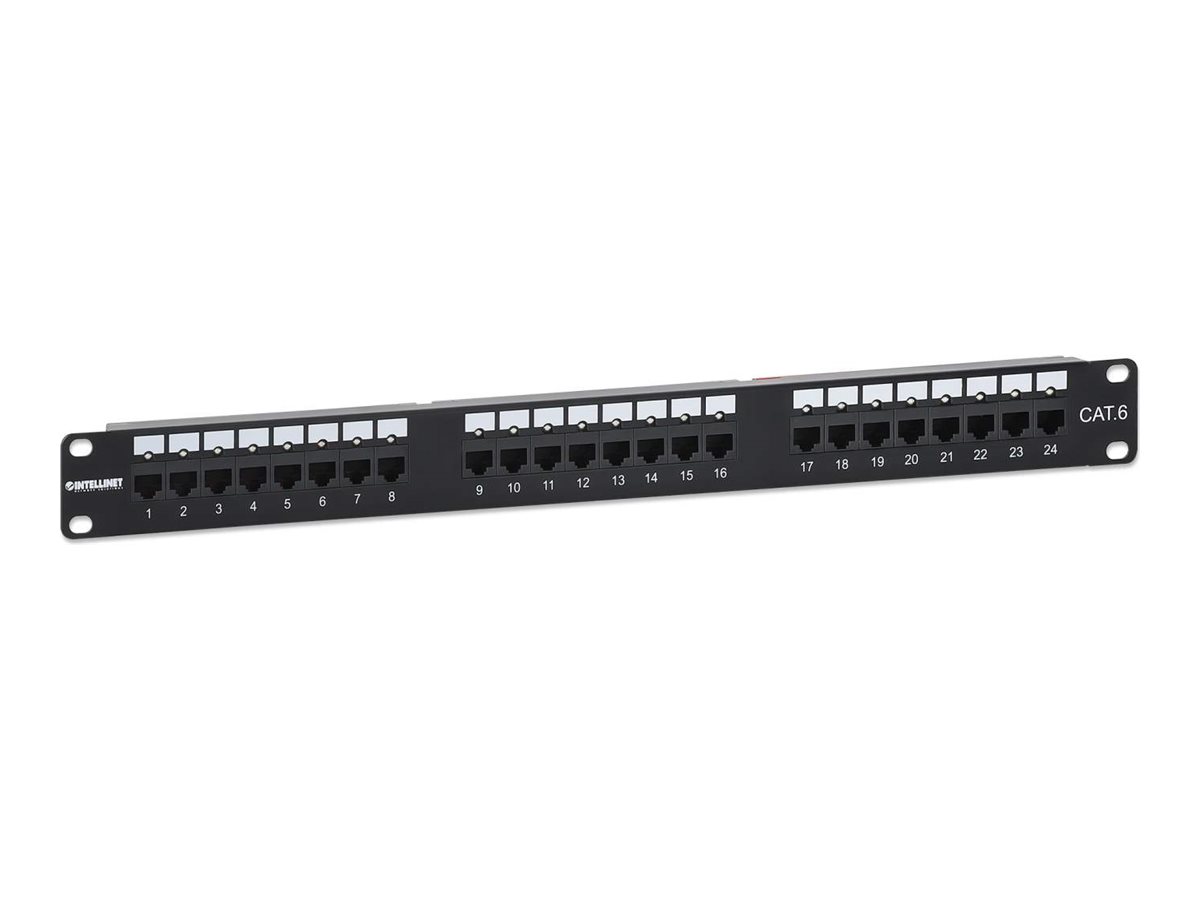

Patch panel - rack mountable - CAT 6 - UTP - RJ-45 X 24 - black - 1U - 19"
| Main Specifications | |
|---|---|
| Product Description | Intellinet patch panel - 1U - 19" |
| Product Type | Patch panel - CAT 6 - RJ-45 X 24 |
| Placing / Mounting | Rack mountable |
| Package Content | Cage nuts |
| Dimensions (WxDxH) | 19 in x 1.3 in x 1.7 in |
| Weight | 22.57 oz |
| Product Material | Steel |
| Color | Black |
| Port Qty | 24 ports |
| Height (Rack Units) | 1U |
| Compliant Standards | UL 94 V-0, RoHS, ISO/IEC 11801, IEC 60603-7-41, ANSI/TIA-568-D, UL, REACH, UKCA |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Patch panel - CAT 6 |
| Placing / Mounting | Rack mountable |
| Package Content | Cage nuts |
| Product Material | Steel |
| Height (Rack Units) | 1U |
| Width | 19 in |
| Depth | 1.3 in |
| Height | 1.7 in |
| Weight | 22.57 oz |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Rack Size | 19" |
| Features | Gold plated pins, phosphor bronze plated connectors, LED indicator |
| Compliant Standards | UL 94 V-0, RoHS, ISO/IEC 11801, IEC 60603-7-41, ANSI/TIA-568-D, UL, REACH, UKCA |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 24 ports |
| Technology | Unshielded twisted pair (UTP) |
| Features | #23-26 AWG |
| Connector Provided | 24 x RJ-45 female |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 26.1 oz |
