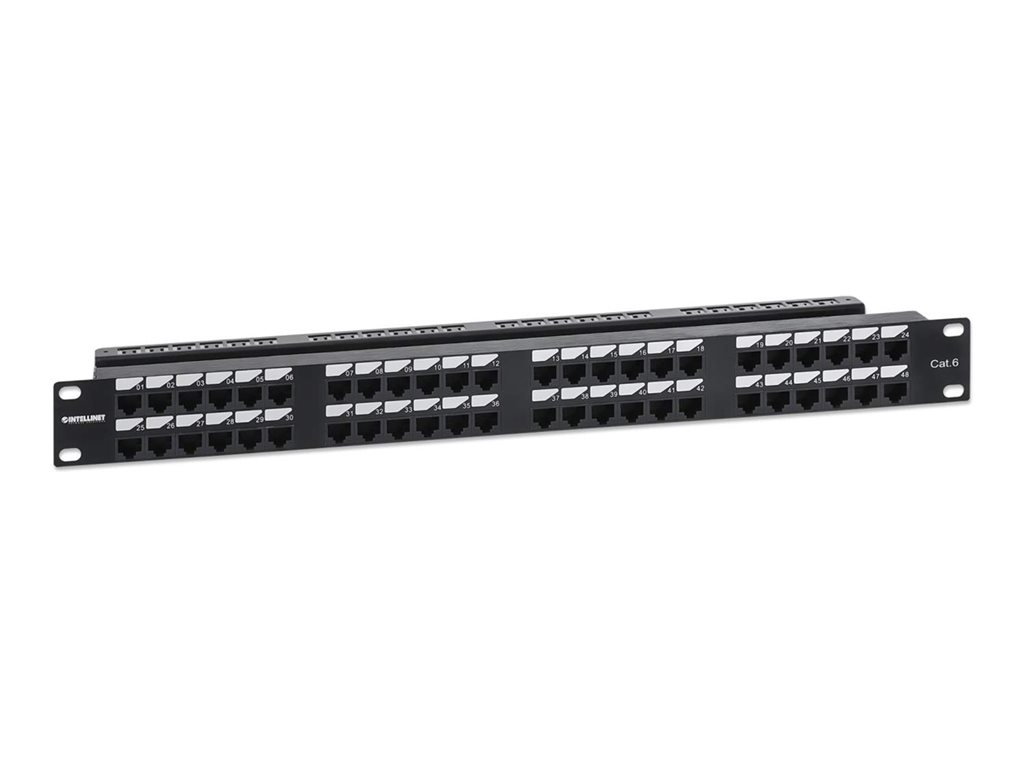

Patch panel - rack mountable - CAT 6 - UTP - RJ-45 X 48 - black - 1U - 19"
| Main Specifications | |
|---|---|
| Product Description | Intellinet patch panel - 1U - 19" |
| Product Type | Patch panel - CAT 6 - RJ-45 X 48 |
| Placing / Mounting | Rack mountable |
| Package Content | 48 x cable ties, cage nut mounting kit |
| Dimensions (WxDxH) | 19 in x 5 in x 1.7 in |
| Weight | 26.81 oz |
| Product Material | Anodized aluminum, SPCC cold rolled steel |
| Color | Black |
| Port Qty | 48 ports |
| Height (Rack Units) | 1U |
| Wiring Scheme | T568A/B |
| Compliant Standards | RoHS, ISO/IEC 11801, IEC 60603-7-41, ANSI/TIA-568-D, UL, REACH, UKCA, 4PPoE, Ultra PoE, UL 94 V-0, NDAA, EIA-310, IEC 60297 / IEEE 802.3bt |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Product Type | Patch panel - CAT 6 |
| Placing / Mounting | Rack mountable |
| Package Content | 48 x cable ties, cage nut mounting kit |
| Product Material | Anodized aluminum, SPCC cold rolled steel |
| Height (Rack Units) | 1U |
| Width | 19 in |
| Depth | 5 in |
| Height | 1.7 in |
| Weight | 26.81 oz |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Rack Size | 19" |
| Features | Aluminum housing, flame retardant |
| Compliant Standards | RoHS, ISO/IEC 11801, IEC 60603-7-41, ANSI/TIA-568-D, UL, REACH, UKCA, 4PPoE, Ultra PoE, UL 94 V-0, NDAA, EIA-310, IEC 60297 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 48 ports |
| Termination Type | LSA (Krone) |
| Technology | Unshielded twisted pair (UTP) |
| Wiring Scheme | T568A/B |
| Features | Gold-plated contacts, PoE++ support, phosphor bronze contacts, for 23 - 26 AWG solid wire |
| Compliant Standards | IEEE 802.3bt |
| Connector Provided | 48 x RJ-45 female |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 30.68 oz |
