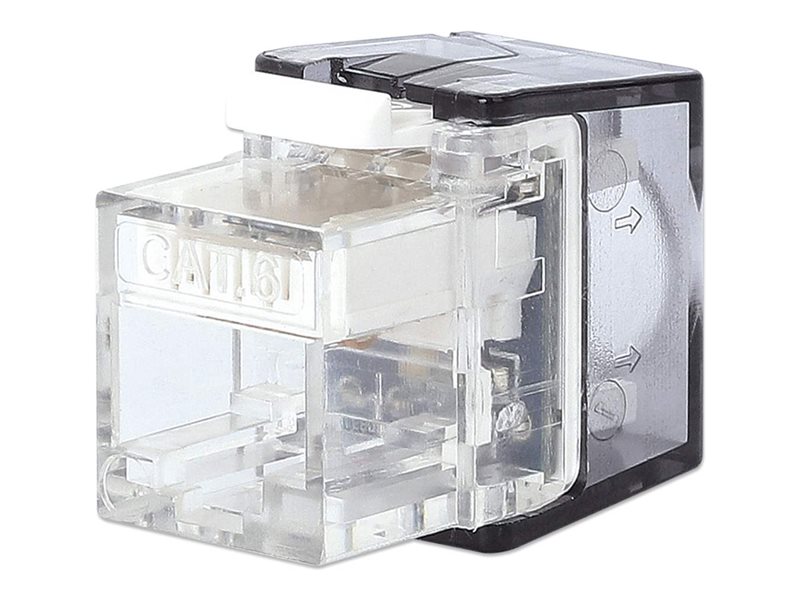

Modular insert - port identifier, toolless, with LED - patch panel mountable, box mountable - CAT 6 - UTP - RJ-45 - transparent (pack of 25)
| Main Specifications | |
|---|---|
| Product Description | Intellinet modular insert - port identifier, toolless, with LED |
| Product Type | Modular insert - CAT 6 - RJ-45 - port identifier, toolless, with LED |
| Packaged Quantity | 25 (specifications are for single item) |
| Placing / Mounting | Patch panel mountable, box mountable |
| Package Content | Dust cover |
| Dimensions (WxDxH) | 0.6 in x 1.2 in x 0.9 in |
| Weight | 0.28 oz |
| Product Material | ABS plastic |
| Color | Transparent |
| Port Qty | 1 port |
| Wiring Scheme | T568A/B |
| Compliant Standards | ISO/IEC 11801, NDAA, 4PPoE, Ultra PoE, UL, RoHS, IEC 60603-7-41, ANSI/TIA-568-D, REACH, UKCA, UL 94 V-0, UL 94 V-2 / IEEE 802.3bt |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Packaged Quantity | 25 (specifications are for single item) |
| Product Type | Modular insert - CAT 6 - port identifier, toolless, with LED |
| Placing / Mounting | Patch panel mountable, box mountable |
| Package Content | Dust cover |
| Product Material | ABS plastic |
| Width | 0.6 in |
| Depth | 1.2 in |
| Height | 0.9 in |
| Weight | 0.28 oz |
| Enclosure Color | Transparent |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | 10GbE compatible, LED indicator, tool-less, easy & quick installation |
| Compliant Standards | ISO/IEC 11801, NDAA, 4PPoE, Ultra PoE, UL, RoHS, IEC 60603-7-41, ANSI/TIA-568-D, REACH, UKCA, UL 94 V-0, UL 94 V-2 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Cabling & Wiring | |
| Port Qty | 1 port |
| Technology | Unshielded twisted pair (UTP) |
| Wiring Scheme | T568A/B |
| Features | Keystone type, PoE++ support, for 23 - 26 AWG solid wire, gold-plated contacts, phosphor bronze contacts |
| Compliant Standards | IEEE 802.3bt |
| Connector Provided | 1 x RJ-45 female |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.52 oz |
