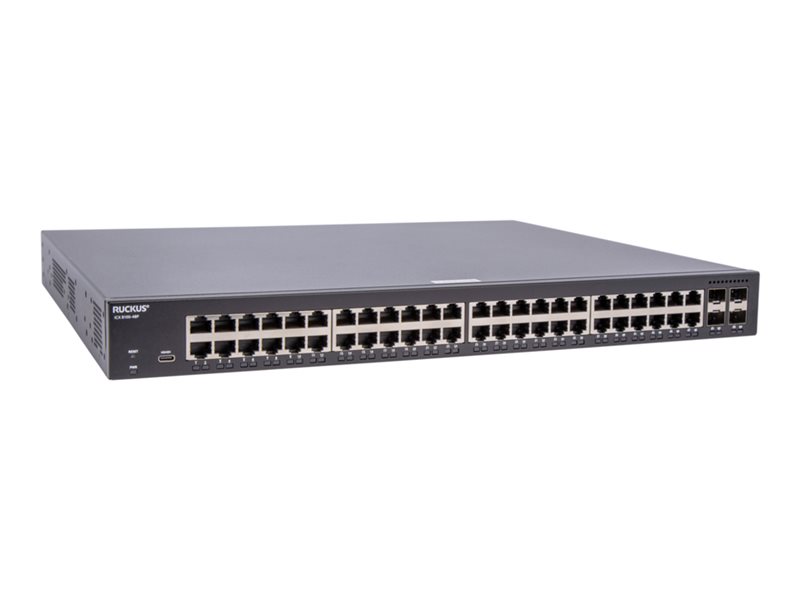

Switch - managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (740 W)
| Main Specifications | |
|---|---|
| Product Description | Ruckus ICX 8100-48PF - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding capacity: 132 Mpps |
| Capacity | Packet buffer size: 4 MB ¦ Maximum number of VLANs: 4095 ¦ PVLANs supported: 32 ¦ STP instances: 254 ¦ ARP entries: 8192 ¦ Link aggregation groups: 128 ¦ Maximum member ports per LAG: 8 ¦ QoS priority queues per port: 8 ¦ IGMP multicast groups: 4096 ¦ MLD multicast groups: 512 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMPv3, IGMP, MLD, PIM-SM, PIM-SMv6 |
| Remote Management Protocol | DHCP, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, NTP, SCP, BOOTP, Telnet, TFTP, CLI, SSH, SSH-2 |
| Features | sFlow, EEE, CoS, DSCP/ToS mapping, QoS, traffic management, 802.1x authentication, MAC address authentication, Flexible authentication, Web authentication, DHCP snooping, DAI, IPv6 Neighbor Discovery Inspection, AAA, DoS protection, MAC address blocking, SCP, protected ports, CoA, TPM, Syslog support, layer 2 switching, High Availability, auto-uplink (auto MDI/MDI-X), BPDU Guard, double VLAN mode, GVRP, IGMP fast leave, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, IPG adjustment, LFS, MAC address filtering, MAC based VLAN, MAC Learning Disable, MLD snooping, MLD snooping v2, PVST, PVST+, PIM-SM snooping, Port Loop Detection, port mirroring, Private VLAN, Q-in-Q tunneling, RFN, Root Guard, UDLD, VLAN mapping, DHCP server, DHCP relay, RSPAN |
| Compliant Standards | IEEE 802.3at, IEEE 802.3az, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1 AVB, IEEE 802.1BR, IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 14.6 in x 1.7 in |
| Weight | 14.09 lbs |
| Localization | Asia, Australia, New Zealand, EMEA, Latin America, North America |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 176 Gbps ¦ Forwarding capacity: 132 Mpps |
| Capacity | Packet buffer size: 4 MB ¦ Maximum number of VLANs: 4095 ¦ PVLANs supported: 32 ¦ STP instances: 254 ¦ ARP entries: 8192 ¦ Link aggregation groups: 128 ¦ Maximum member ports per LAG: 8 ¦ QoS priority queues per port: 8 ¦ IGMP multicast groups: 4096 ¦ MLD multicast groups: 512 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMPv3, IGMP, MLD, PIM-SM, PIM-SMv6 |
| Remote Management Protocol | DHCP, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, NTP, SCP, BOOTP, Telnet, TFTP, CLI, SSH, SSH-2 |
| Encryption Algorithm | AES |
| Authentication Method | Secure Shell v.2 (SSH2), RADIUS, TACACS, TACACS+, RADSEC |
| Features | sFlow, EEE, CoS, DSCP/ToS mapping, QoS, traffic management, 802.1x authentication, MAC address authentication, Flexible authentication, Web authentication, DHCP snooping, DAI, IPv6 Neighbor Discovery Inspection, AAA, DoS protection, MAC address blocking, SCP, protected ports, CoA, TPM, Syslog support, layer 2 switching, High Availability, auto-uplink (auto MDI/MDI-X), BPDU Guard, double VLAN mode, GVRP, IGMP fast leave, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, IPG adjustment, LFS, MAC address filtering, MAC based VLAN, MAC Learning Disable, MLD snooping, MLD snooping v2, PVST, PVST+, PIM-SM snooping, Port Loop Detection, port mirroring, Private VLAN, Q-in-Q tunneling, RFN, Root Guard, UDLD, VLAN mapping, DHCP server, DHCP relay, RSPAN |
| Compliant Standards | IEEE 802.3at, IEEE 802.3az, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1 AVB, IEEE 802.1BR, IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T (PoE+) RJ-45 30 W ¦ 4 x 10Gbit LAN SFP+ uplink ¦ 1 x console USB Type-C ¦ 24 x 10/100/1000 Base-T (PoE+) RJ-45 15.4 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, China RoHS, UK RoHS, FCC Part 15 B Class A, EN 55032 Class A, EN 55035, EN55024, ICES-003 Class A, VCCI Class A, EN 300 386, CNS 15936-1 Class A, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, EN 61000-3-2, EN 61000-3-3, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 60825, EN 60950-1, IEC 60950-1, EN 62368-1, CNS 15598-1, BSMI CNS 15663, China RoHS SJ/T 11363-2006, China RoHS SJ/T 11364-2006, Directive 1907/2006/EC, Directive 2006/66/EC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 30/2011/TT-BCT, Directive 94/62/EC, EU REACH, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 2011/65/EU, WEEE 2012/19/EU |
| Localization | Asia, Australia, New Zealand, EMEA, Latin America, North America |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Provided | 920 Watt |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 14.6 in |
| Height | 1.7 in |
| Weight | 14.09 lbs |
