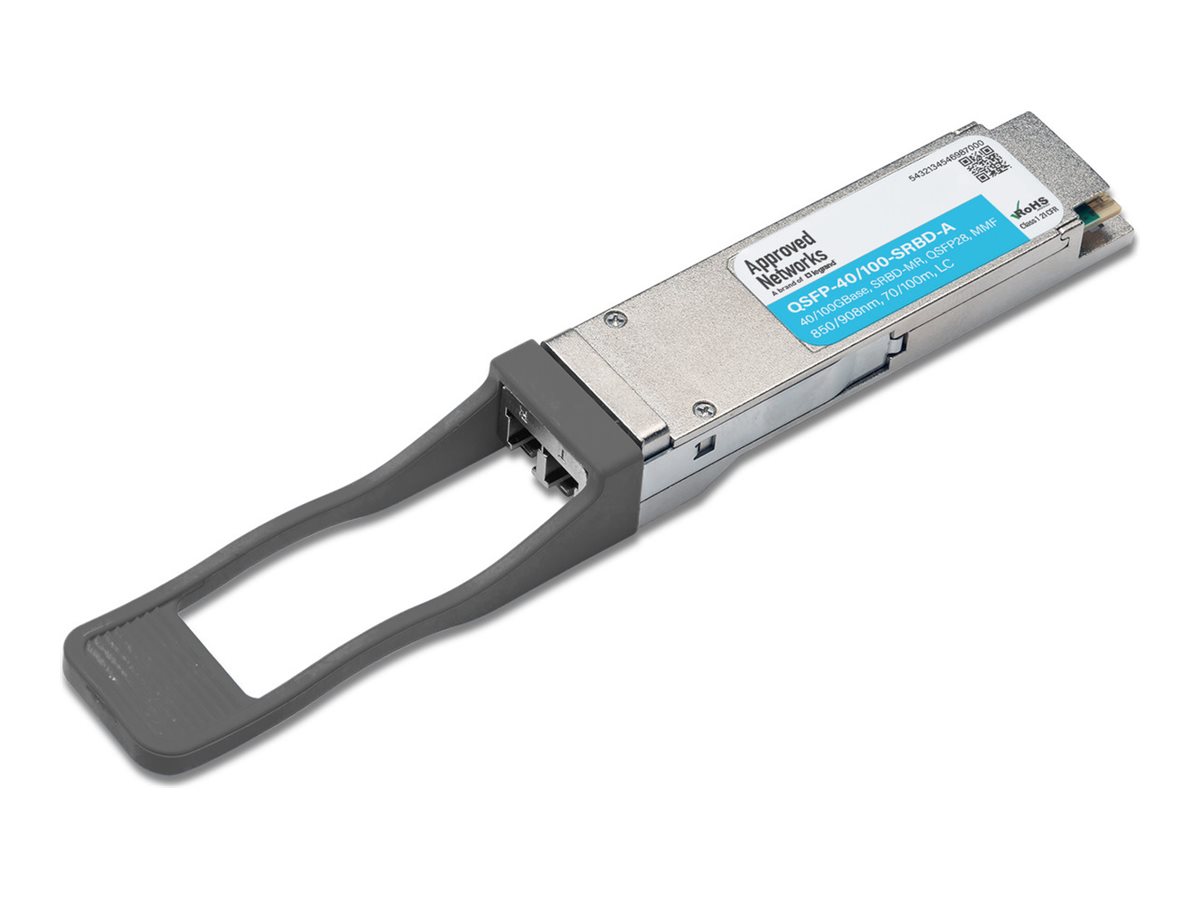

QSFP28 transceiver module (equivalent to: Cisco QSFP-40/100G-SRBD-A) - 40GbE, 100GbE - 40GBase-SRBD, 100GBase-SRBD - LC multi-mode - up to 328 ft - 850 nm / 908 nm
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - QSFP28 transceiver module - 40GbE, 100GbE |
| Device Type | QSFP28 transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 40GBase-SRBD, 100GBase-SRBD |
| Data Transfer Rate | 103.1 Gbps |
| Optical Wave Length | 850 nm / 908 nm |
| Data Link Protocol | 40GbE, 100GbE |
| Max Transfer Distance | 328 ft |
| OEM Manufacturer Equivalent Part Number | Cisco QSFP-40/100G-SRBD-A |
| Dimensions (WxDxH) | 0.7 in x 5.2 in |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBase-SRBD/100GBase-SRBD - LC multi-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | OM3, OM4, MSA, RoHS, SFF-8665 |
| OEM Manufacturer Equivalent Part Number | Cisco QSFP-40/100G-SRBD-A |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 40GBase-SRBD, 100GBase-SRBD |
| Data Link Protocol | 40GbE, 100GbE |
| Data Transfer Rate | 103.1 Gbps |
| Optical Wave Length | 850 nm / 908 nm |
| Max Transfer Distance | 328 ft |
| Features | Bi-Directional (BiDi), Digital Diagnostics Monitoring (DDM), Vertical Cavity Surface Emitting Laser (VCSEL), 70 m transmission distance using OM3, 100 m transmission distance on OM4, C-Temp, 5 dB power budget, transmit min -3 dBm / max 4 dBm, -8 dBm sensitivity |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 0.7 in |
| Depth | 5.2 in |
