Graphics card - GeForce RTX 5060 Ti - 8 GB GDDR7 - PCIe 5.0 x16 - HDMI, 3 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | MSI GeForce RTX 5060 Ti 8G VENTUS 2X PLUS - graphics card - GeForce RTX 5060 Ti - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 (x8 mode) |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Memory | 8 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock | 2572 MHz |
| CUDA Cores | 4608 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

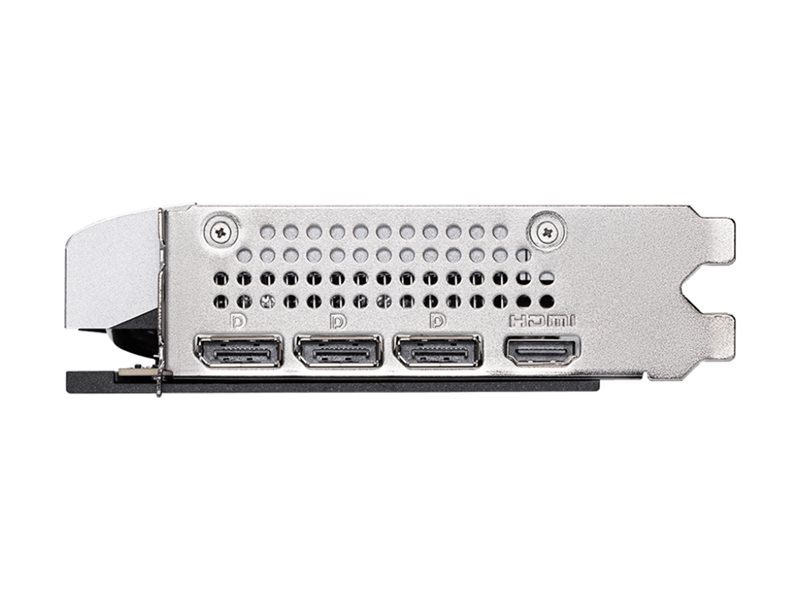

| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6, DirectX 12 Ultimate |
| Dimensions (WxDxH) | 8.9 in x 5 in |
| Cable Length | 4.1 cm |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 (x8 mode) |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Boost Clock | 2572 MHz |
| CUDA Cores | 4608 |
| Max Resolution | 7680 x 4320 at 120 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6, DirectX 12 Ultimate |
| Features | Dual Fan Design, NVIDIA G-Sync ready, DrMOS, MSI Zero Frozr technology, Nvidia Studio, Nvidia Broadcast, anti-bending plate, Custom PCB, NVIDIA DLSS 4, NVIDIA Blackwell GPU architecture, NVIDIA Reflex 2, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, 9th Gen NVIDIA Encoder, NVIDIA Avatar Cloud Engine (ACE), NVIDIA Multi Frame Generation, NVIDIA Frame Warp, MSI Stormforce fan, HDCP |
| Memory | |
| Size | 8 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Power Consumption Operational | 180 Watt |
| Software Included | MSI Afterburner, Norton 360 (30 days trial), MSI APP Player, NVIDIA Studio drivers, MSI Center, Adobe Creative Cloud All Apps (1 month membership), GeForce Game Ready Drivers |
| Compliant Standards | DisplayPort 2.1b |
| Depth | 8.9 in |
| Height | 5 in |
| Cable Length | 4.1 cm |
| Weight | 20.21 oz |
| Shipping Weight | 29.42 oz |
| System Requirements | |
| Required Power Supply | 600 W |
| Additional Requirements | 8 pin PCI Express power connector |
