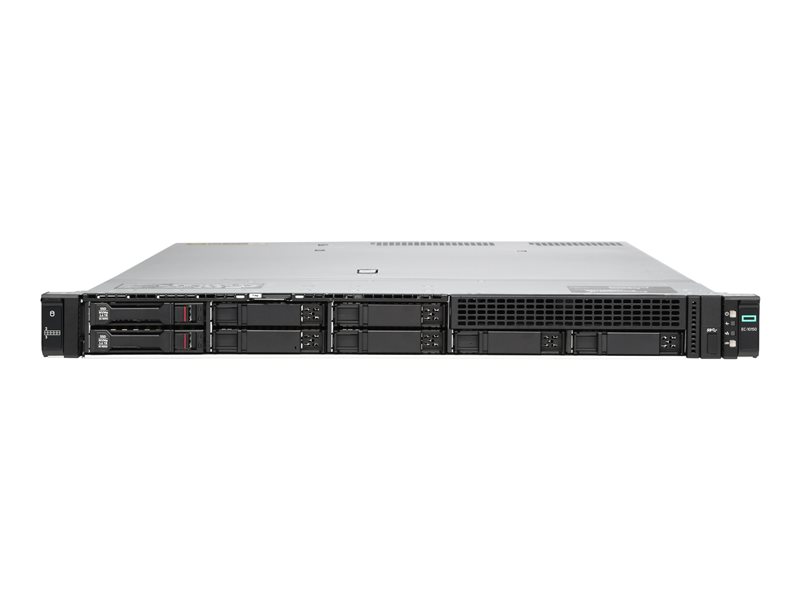

SD-WAN gateway - 10GbE, 25GbE - 1U - cloud-managed - BTO - desktop / rack mountable
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking EdgeConnect 10150 SD-WAN Gateway - SD-WAN gateway - cloud-managed |
| Device Type | SD-WAN gateway |
| Form Factor | Desktop / rack mountable - 1U |
| Localization | English / United States |
| Hard Drive | 480 GB x 2 - NVM Express |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | Recommended WAN optimization: 8 Gbps ¦ WAN bandwidth: up to 12 Gbps |
| Capacity | Simultaneous connections: 2000000 ¦ Maximum fabric peers: 4096 ¦ Maximum tunnels: 10000 ¦ VLANs supported: 128 |
| Included Accessories | 2 power cords, 4 post tool-less sliding rail kit |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Pricing Type | BTO |
| Dimensions (WxDxH) | 17.1 in x 25.6 in x 1.7 in |
| Weight | 32.41 lbs |
| General | |
| Device Type | SD-WAN gateway |
| Height (Rack Units) | 1U |
| Width | 17.1 in |
| Depth | 25.6 in |
| Height | 1.7 in |
| Weight | 32.41 lbs |
| Localization | English / United States |
| Expansion / Connectivity | |
| Interfaces | 2 x 10/100/1000Base-T - RJ-45 (WAN / LAN) ¦ 8 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28 (WAN / LAN) ¦ 2 x management - RJ-45 ¦ 1 x console - DB-9 |
| Miscellaneous | |
| Included Accessories | 2 power cords, 4 post tool-less sliding rail kit |
| MTBF | 300,236 hours |
| Compliant Standards | EMC, EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, UL, cUL, EN 60950, EN 62368, FIPS 140-2 Level 1, FCC CFR 47 Part 15 Class B, ICES-003 issue 7 Class A, EN 55032 Class A, EN55035, EN IEC 61000-3-2, IEC/EN 61000-3-3, VCCI Class A, CISPR 32 Class B, CISPR 35, IEC/EN 60950-1, IEC/EN 62368-1 Second Edition, IEC/EN 62368-1 Third Edition, UL 62368-1 Third Edition, CSA C22.2 No. 62368-1:19 Third Edition |
| Pricing Type | BTO |
| Networking | |
| Form Factor | Desktop / rack mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Routing Protocol | BGP, OSPF, VRRP |
| Remote Management Protocol | SNMP 2c, SNMP 3, SSH, HTTPS, CLI |
| Cloud-Managed | Yes |
| Performance | Recommended WAN optimization: 8 Gbps ¦ WAN bandwidth: up to 12 Gbps |
| Capacity | Simultaneous connections: 2000000 ¦ Maximum fabric peers: 4096 ¦ Maximum tunnels: 10000 ¦ VLANs supported: 128 |
| Features | Trusted Platform Module 2.0 (TPM 2.0), MPLS support |
| Encryption Algorithm | 128-bit AES, 256-bit AES, TLS 1.2 |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3ab, IEEE 802.3i, IEEE 802.1AX |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 800 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | SSD 480 GB x 2 - NVM Express |
