Docking station - Thunderbolt 5 - DP, HDMI, 2 x Thunderbolt - 2.5GbE
| Main Specifications | |
|---|---|
| Product Description | Anker Prime A83B5 - docking station - Thunderbolt 5 - DP, HDMI, 2 x Thunderbolt - 2.5GbE |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 5 |
| Video Interfaces | DP, HDMI, 2 x Thunderbolt |
| Dimensions (WxDxH) | 4.6 in x 4.6 in x 3 in |
| Weight | 2.38 lbs |
| Networking | 2.5 Gigabit Ethernet |
| Power | Power adapter |
| Manufacturer Warranty | 18-month warranty |
| General | |
| Product Type | Docking station |
| Width | 4.6 in |
| Depth | 4.6 in |
| Height | 3 in |
| Weight | 2.38 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |

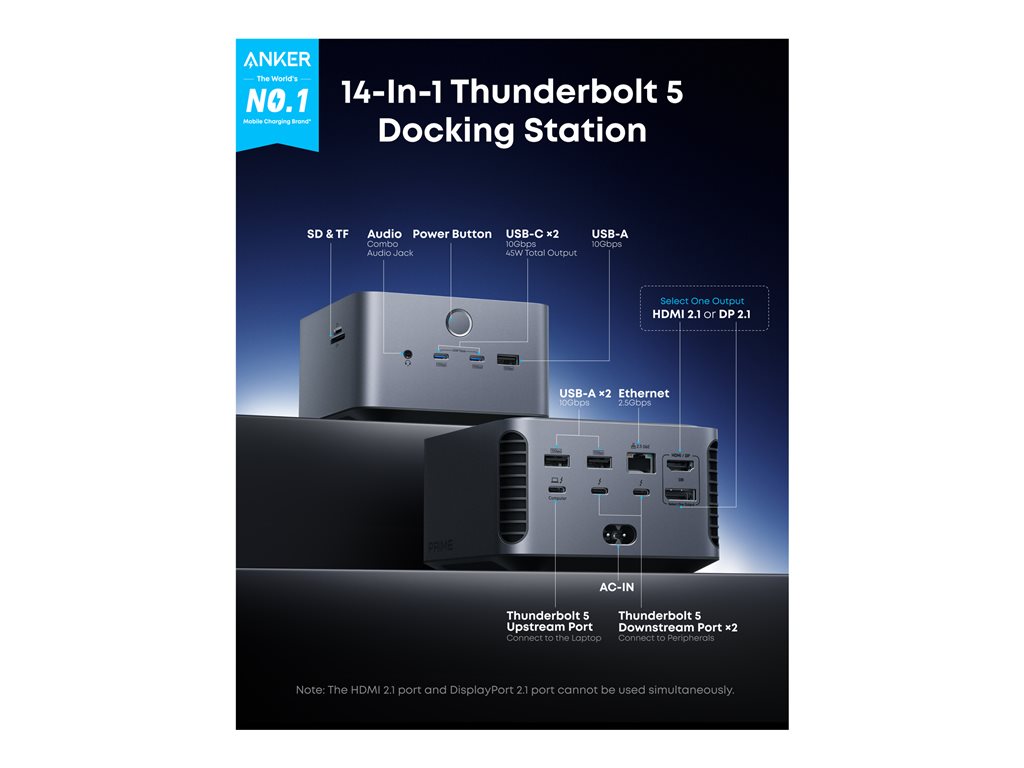

| Interfaces | 2 x Thunderbolt 5 - 24 pin USB-C ¦ 3 x USB-A 3.2 - 9 pin USB Type A ¦ 2 x USB-C 3.2 - 24 pin USB-C ¦ 1 x audio - input / output - mini-phone stereo 3.5 mm ¦ 1 x network - 2.5G Gigabit Ethernet - RJ-45 ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 18 months |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 5 cable - external |
| Features | DisplayPort Alt Mode, up to 140W power delivery, LED lighting |
| Compliant Standards | DisplayPort 2.1 |
| Networking | |
| Data Link Protocol | 2.5 Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Video | |
| Max Resolution Details | 8K - 60 Hz (Thunderbolt only) ¦ 8K - 60 Hz (Single Display (DisplayPort / HDMI)) |
| System Requirements | |
| OS Required | Apple macOS 15, Microsoft Windows 10 / 11 |
