Network surveillance camera (no lens) - color (Day&Night) - 4x2MP - 2592 x 1944 - audio - HDMI, USB - GbE - MJPEG, H.264, H.265 - DC 12 V / PoE Plus Class 4
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision P Series PNM-C20000QB - network surveillance camera (no lens) |
| Device Type | Network surveillance camera (no lens) - fixed |
| Audio | Yes |
| Dimensions (WxDxH) | 7.9 in x 5.7 in x 1.5 in |
| Weight | 2.24 lbs |
| Color | Black, RAL 9005 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | 4x2MP |
| Interfaces | HDMI, USB, Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voltage | DC 12 V / PoE Plus Class 4 |
| Features | Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, shock detection, enter area detection, exit area detection, loitering detection, Directional Detection, intrusion detection, Virtual Line detection, Multicast Streaming, WiseStream support, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), Defog, privacy masking (up to 16 areas), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, plastic housing |
| Environmental Parameters (operating) | 14 °F - 113 °F; 0 - 90% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera (no lens) |
| Audio Support | Yes |
| Audio Formats | G.726, G.711, AAC-LC, ADPCM, PCM |
| Connectivity Technology | Wired |
| Width | 7.9 in |
| Depth | 5.7 in |
| Height | 1.5 in |
| Weight | 2.24 lbs |
| Expansion / Connectivity | |

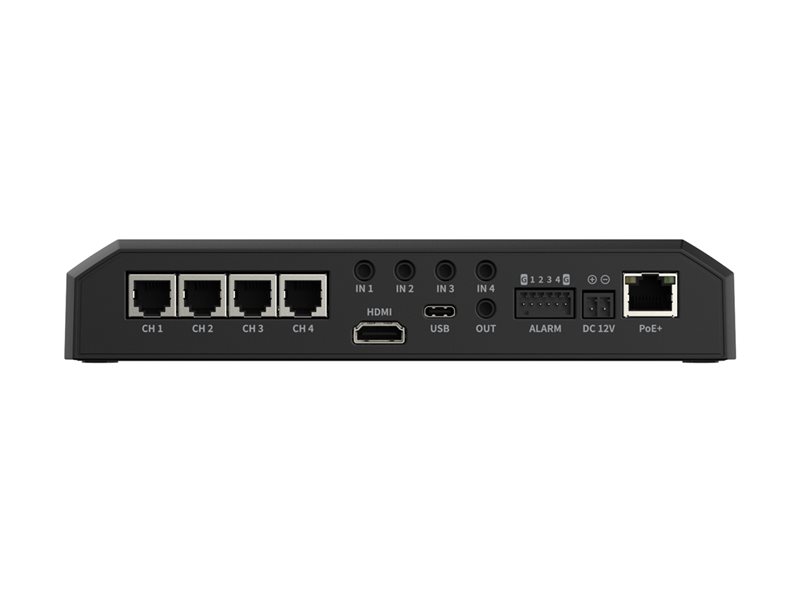

| Ports | 4 x audio line in ¦ Audio line out ¦ HDMI ¦ USB-C |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Miscellaneous | |
| Compliant Standards | EAC, FCC, cULus, NDAA, FIPS 140-3 Level 3, CC EAL6+, FCC 47 CFR Part 15 B Class A, UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR32, RCM, UL 62368-1, IEC 62471, RoHS, EN 63000:2018, REACH |
| Color | Black, RAL 9005 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Power Device | 25.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Relative Humidity (operating) | 0 - 90% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 2 sec - 1/12000 sec |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
| Frame Rate (max) | 30 frames per second |
| RAM | 8 GB |
| Flash Memory | 8 GB |
| Features | Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, shock detection, enter area detection, exit area detection, loitering detection, Directional Detection, intrusion detection, Virtual Line detection, Multicast Streaming, WiseStream support, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), Defog, privacy masking (up to 16 areas), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, plastic housing |
| Image Sensor | |
| Type | 4x2MP |
| Interfaces | |
| Video | HDMI, USB |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SSM, EAP, PIM-SM, LLDP |
| Alarm Inputs Qty | 4 |
| Alarm Outputs Qty | 4 |
