Wireless router - WWAN 4-port switch - 1GbE, 2.5GbE Dual Band - 5G, 4G, 3G - wall-mountable
| Main Specifications | |
|---|---|

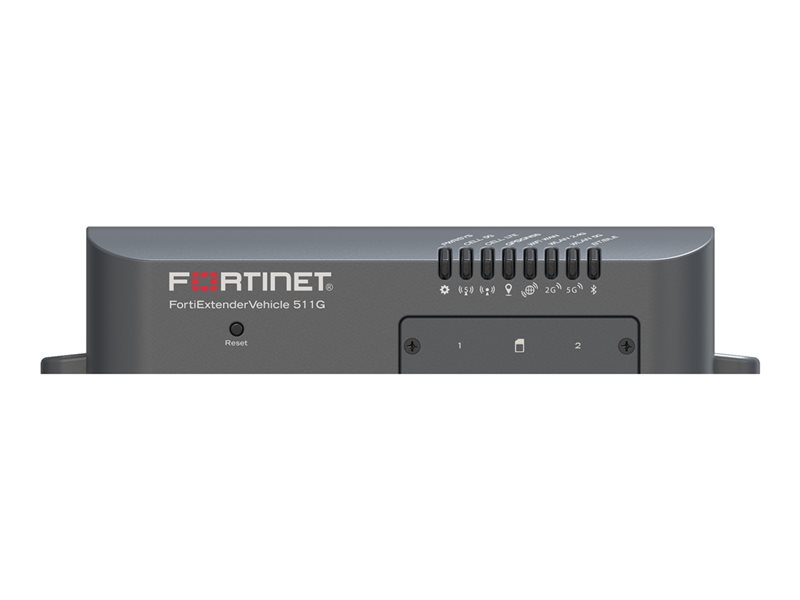

| Product Description | Fortinet FortiExtenderVehicle 511G - wireless router - WWAN - Wi-Fi 6, Bluetooth - 5G, 4G, 3G - desktop, wall-mountable |
| Device Type | Wireless router - wireless cellular modem - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Cellular Protocol | 5G, LTE, UMTS, HSPA+, WCDMA |
| Generation | 5G, 4G, 3G |
| Cellular Band | 5G NR NSA n1, 5G NR NSA n12, 5G NR NSA n13, 5G NR NSA n14, 5G NR NSA n18, 5G NR NSA n2, 5G NR NSA n20, 5G NR NSA n25, 5G NR NSA n26, 5G NR NSA n28, 5G NR NSA n29, 5G NR NSA n3, 5G NR NSA n30, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n41, 5G NR NSA n48, 5G NR NSA n5, 5G NR NSA n66, 5G NR NSA n7, 5G NR NSA n71, 5G NR NSA n75, 5G NR NSA n76, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n79, 5G NR NSA n8, 5G NR SA n1, 5G NR SA n12, 5G NR SA n13, 5G NR SA n14, 5G NR SA n18, 5G NR SA n2, 5G NR SA n20, 5G NR SA n25, 5G NR SA n26, 5G NR SA n28, 5G NR SA n29, 5G NR SA n3, 5G NR SA n30, 5G NR SA n38, 5G NR SA n40, 5G NR SA n41, 5G NR SA n48, 5G NR SA n5, 5G NR SA n66, 5G NR SA n7, 5G NR SA n71, 5G NR SA n75, 5G NR SA n76, 5G NR SA n77, 5G NR SA n78, 5G NR SA n79, 5G NR SA n8, LTE B1, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B2, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B3, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71, LTE B8, UMTS B1, UMTS B19, UMTS B2, UMTS B4, UMTS B5, UMTS B6, UMTS B8, HSPA+ B1, HSPA+ B19, HSPA+ B2, HSPA+ B4, HSPA+ B5, HSPA+ B6, HSPA+ B8, WCDMA B1, WCDMA B19, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8 |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.0 LE |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.8 Gbps |
| Performance | VPN throughput (IPSec, wired): 850 Mbps ¦ VPN throughput (IPSec, 5G/LTE): 400 Mbps ¦ Lan-Extension throughput: 600 Mbps ¦ LAN-to-LAN layer-2 frames throughput: 950 Mbps ¦ LAN-to-WAN NAT 'ed Layer-3 IP packets throughput: 940 Mbps ¦ 5G downlink bandwidth: 3.4 Gbps ¦ 5G uplink bandwidth: 460 Mbps |
| Capacity | Wan uplinks supported: 1 |
| Routing Protocol | VXLAN |
| Features | DIN rail mountable, GNSS Bias, 2x2 MIMO technology, 4x4 MIMO technology, receiver diversity, receiver equalization, eSIM support, reset button, VLAN support, CAPWAP support, High Availability |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax |
| Dimensions (WxDxH) | 7.6 in x 5.1 in x 1.8 in |
| Weight | 33.86 oz |
| Localization | Philippines, Singapore, Macao, Malaysia, Vietnam |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.0 LE |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1.8 Gbps |
| Performance | VPN throughput (IPSec, wired): 850 Mbps ¦ VPN throughput (IPSec, 5G/LTE): 400 Mbps ¦ Lan-Extension throughput: 600 Mbps ¦ LAN-to-LAN layer-2 frames throughput: 950 Mbps ¦ LAN-to-WAN NAT 'ed Layer-3 IP packets throughput: 940 Mbps ¦ 5G downlink bandwidth: 3.4 Gbps ¦ 5G uplink bandwidth: 460 Mbps |
| Capacity | Wan uplinks supported: 1 |
| Routing Protocol | VXLAN |
| Features | DIN rail mountable, GNSS Bias, 2x2 MIMO technology, 4x4 MIMO technology, receiver diversity, receiver equalization, eSIM support, reset button, VLAN support, CAPWAP support, High Availability |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax, FCC Part 15 B, FCC Part 15 C, FCC Part 15 E, FCC 2.1091, ICES-003, RSS-247, RSS-102, EMC 2014/30/EU, EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 301 489-19, EN 301 489-52, RED 2014/53/EU, EN 300 328, EN 301 893, EN 300.440, EN 303 413, EN 301 908-1, EN 301 908-13, EN 301 908-2, EN 301 908-25, EN IEC 62311, EN 50665, EN 50385, LVD 2014/35/EU, EN 62368-1, UL/CSA 62368-1, IEC/EN 62368-1, IP64, MIL-STD-810H |
| Processor | A53 IPQ6010 1.8 GHz |
| Built-in Devices | GPS, GNSS receiver |
| Status Indicators | Power, 5G, LTE, GPS, WWAN, 2.4 GHz, 5 GHz, Bluetooth Low Energy (BLE) |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x 2.5GBase-T - RJ-45 ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ Antenna: 8 x SMA ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Console: 1 x 9 pin D-Sub (DB-9) |
| Expansion Slots | 2 (total) / 2 (free) x Micro-SIM |
| Miscellaneous | |
| Localization | Philippines, Singapore, Macao, Malaysia, Vietnam |
| Power | |
| Power Consumption Operational | 18.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | 5G, LTE, UMTS, HSPA+, WCDMA |
| Generation | 5G, 4G, 3G |
| Cellular Band | 5G NR NSA n1, 5G NR NSA n12, 5G NR NSA n13, 5G NR NSA n14, 5G NR NSA n18, 5G NR NSA n2, 5G NR NSA n20, 5G NR NSA n25, 5G NR NSA n26, 5G NR NSA n28, 5G NR NSA n29, 5G NR NSA n3, 5G NR NSA n30, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n41, 5G NR NSA n48, 5G NR NSA n5, 5G NR NSA n66, 5G NR NSA n7, 5G NR NSA n71, 5G NR NSA n75, 5G NR NSA n76, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n79, 5G NR NSA n8, 5G NR SA n1, 5G NR SA n12, 5G NR SA n13, 5G NR SA n14, 5G NR SA n18, 5G NR SA n2, 5G NR SA n20, 5G NR SA n25, 5G NR SA n26, 5G NR SA n28, 5G NR SA n29, 5G NR SA n3, 5G NR SA n30, 5G NR SA n38, 5G NR SA n40, 5G NR SA n41, 5G NR SA n48, 5G NR SA n5, 5G NR SA n66, 5G NR SA n7, 5G NR SA n71, 5G NR SA n75, 5G NR SA n76, 5G NR SA n77, 5G NR SA n78, 5G NR SA n79, 5G NR SA n8, LTE B1, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B2, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B3, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B4, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71, LTE B8, UMTS B1, UMTS B19, UMTS B2, UMTS B4, UMTS B5, UMTS B6, UMTS B8, HSPA+ B1, HSPA+ B19, HSPA+ B2, HSPA+ B4, HSPA+ B5, HSPA+ B6, HSPA+ B8, WCDMA B1, WCDMA B19, WCDMA B2, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8 |
| Dimensions & Weight | |
| Width | 7.6 in |
| Depth | 5.1 in |
| Height | 1.8 in |
| Weight | 33.86 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 7 |
