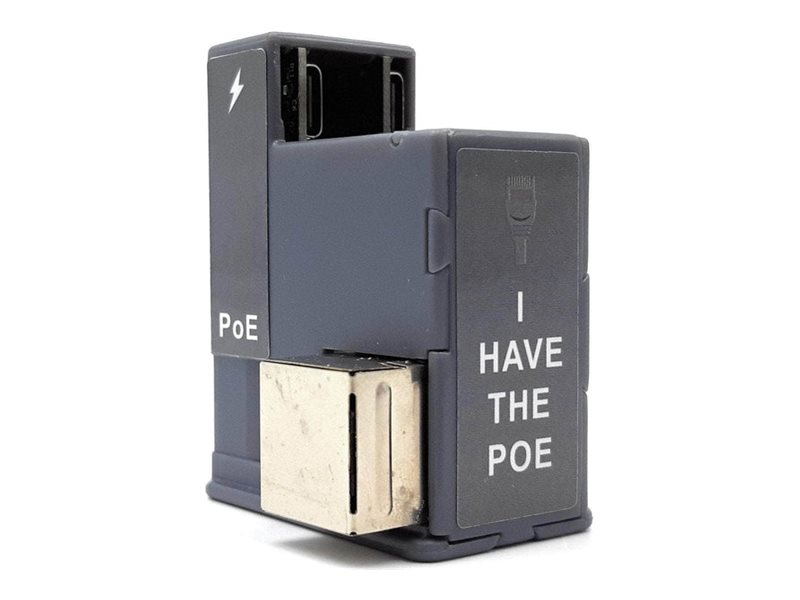

PoE injector (wall mountable) - PoE+ to USB-C, power and data delivery - 44 - 57 V - 25 Watt - output connectors: 2
| Main Specifications | |
|---|---|
| Product Description | POE Texas - PoE injector - PoE+ to USB-C, power and data delivery - 25 Watt |
| Device Type | PoE injector - wall mountable |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 1.75 oz |
| Input Voltage | 44 - 57 V |
| Output Voltage | 5 / 9 / 12 / 15 / 20 V |
| Power Capacity | 25 Watt |
| Input Connectors | 1 x 24 pin USB-C (PD) |
| Output connectors | 1 x 24 pin USB-C - 20 V 2.6 A 25 W ¦ 1 x RJ-45 25 W |
| Dimensions (WxDxH) | 1.3 in x 1.8 in x 2.3 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | PoE injector - wall mountable |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN (PoE+) - RJ-45 ¦ 2 x USB - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year ¦ Limited warranty - money back guarantee - 30 days |
| Miscellaneous | |
| Cables Included | In-wall mountable |
| Features | Data transfer, junction box mountable, Power Delivery (PD), 10/100Mbps Data Rate support, Fast Charge technology, passive PoE Mode B (-7,8 +4,5 pinout), active PoE Mode A (-1,2 +3,6 pinout) |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, Plug and Play |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Power Device | |
| Input Voltage | 44 - 57 V |
| Input Connectors | 1 x 24 pin USB-C (PD) |
| Power Output Connectors Details | 1 x 24 pin USB-C - 20 V 2.6 A 25 W ¦ 1 x RJ-45 25 W |
| Output Voltage | 5 / 9 / 12 / 15 / 20 V |
| Max Electric Current | 2.6 A |
| Power Capacity | 25 Watt |
| Dimensions & Weight | |
| Width | 1.3 in |
| Depth | 1.8 in |
| Height | 2.3 in |
| Weight | 1.75 oz |
