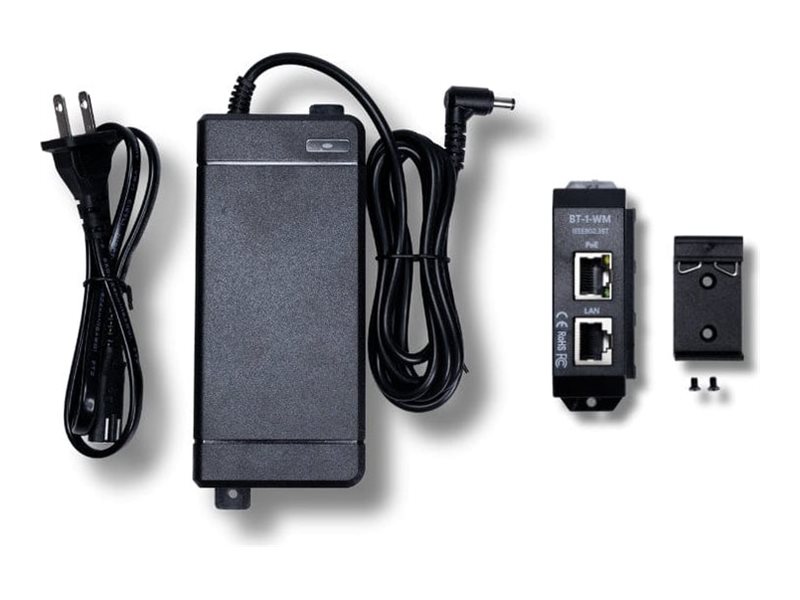

PoE injector + power adapter (DIN rail mountable / wall) - single port, 2.5 Gigabit PoE++, 56V - AC 120-240 V - 90 Watt - output connectors: 1
| Main Specifications | |
|---|---|
| Product Description | POE Texas - PoE injector + power adapter - single port, 2.5 Gigabit PoE++, 56V - 90 Watt |
| Device Type | PoE injector + power adapter - DIN rail mountable / wall |
| Power Over Ethernet (PoE) | PoE++ |
| Input Voltage | AC 120-240 V |
| Output Voltage | DC 56 V |
| Power Capacity | 90 Watt |
| Input Connectors | Power IEC C14 |
| Output connectors | 1 x RJ-45 - 56 V 90 W |
| Included Accessories | DIN-rail brackets, power adapter (120W) |
| Dimensions (WxDxH) | 1.2 in x 2 in x 3.5 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | PoE injector + power adapter - DIN rail mountable / wall |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5 Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | DIN-rail brackets, power adapter (120W) |
| Cables Included | Power cable 3 ft |
| Features | Active PoE Mode A (-1,2 +3,6 pinout), passive PoE Mode B (-7,8 +4,5 pinout), LED indicators |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, FCC, RoHS, UL |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 80% |
| Power Device | |
| Input Voltage | AC 120-240 V |
| Input Connectors | Power IEC C14 |
| Power Output Connectors Details | 1 x RJ-45 - 56 V 90 W |
| Output Voltage | DC 56 V |
| Max Electric Current | 2 A |
| Power Capacity | 90 Watt |
| Efficiency | 99% |
| Dimensions & Weight | |
| Width | 1.2 in |
| Depth | 2 in |
| Height | 3.5 in |
