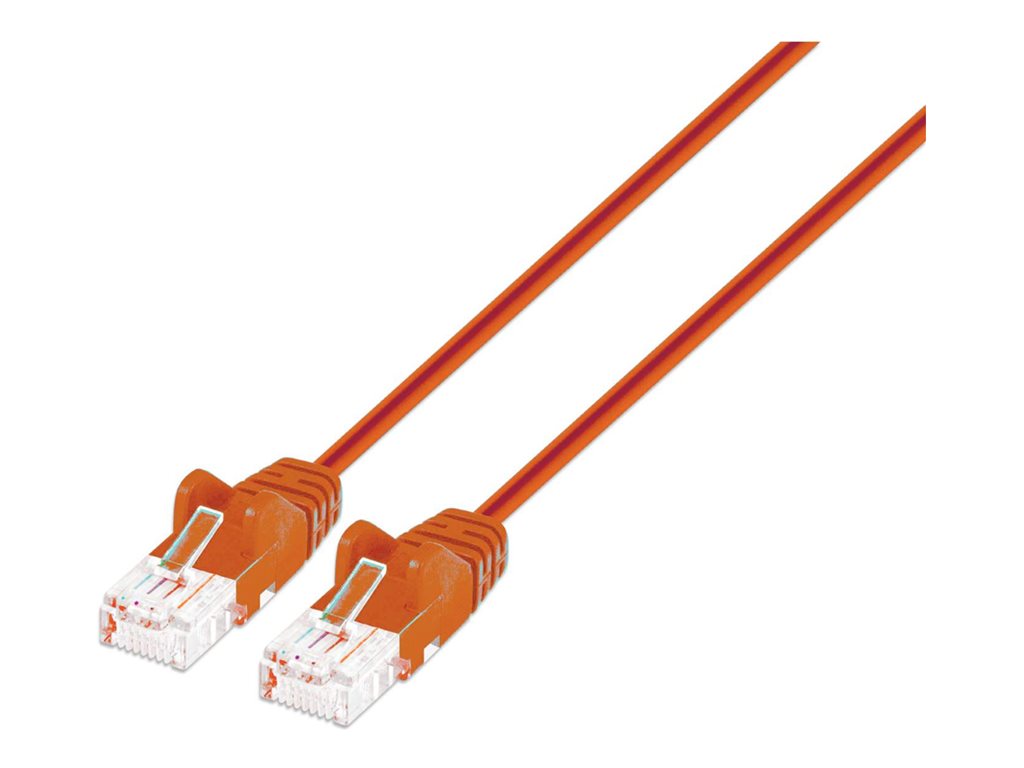

Patch cable - RJ-45 (M) to RJ-45 (M) - 5 m - 0.1 in - UTP - CAT 6 - IEEE 802.3bt - CM - molded, round, snagless, stranded, ultra-thin, up to 10 Gbps data transfer rate, slim - orange
| Main Specifications | |
|---|---|
| Product Description | Intellinet patch cable - 5 m - orange |
| Type | Patch cable - CAT 6 - IEEE 802.3bt - CM |
| Technology | UTP |
| Wires per Cable | 8 wires |
| Features | Molded, round, snagless, stranded, ultra-thin, up to 10 Gbps data transfer rate, slim, strain relief, PoE++ ready, UPoE ready, corrosion-resistant, pure bare copper conductors, 4PPoE ready, 6 microinch gold-plated contacts |
| Cable Length | 5 m |
| Diameter | 0.1 in |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Color | Orange |
| Package Type | Bag |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | Patch cable - CAT 6 - IEEE 802.3bt - CM |
| Technology | UTP |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 30 |
| Wires per Cable | 8 wires |
| Plated Connector | Gold |
| Features | Molded, round, snagless, stranded, ultra-thin, up to 10 Gbps data transfer rate, slim, strain relief, PoE++ ready, UPoE ready, corrosion-resistant, pure bare copper conductors, 4PPoE ready, 6 microinch gold-plated contacts |
| Cable Length | 5 m |
| Diameter | 0.1 in |
| Width | 0.5 in |
| Height | 0.6 in |
| Weight | 2.61 oz |
| Color | Orange |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| Compliant Standards | RoHS, ISO/IEC 11801, REACH, EN 50288, ANSI/TIA-568.2-D - up to 250 MHz |
| Package Details | Bag |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.68 oz |
