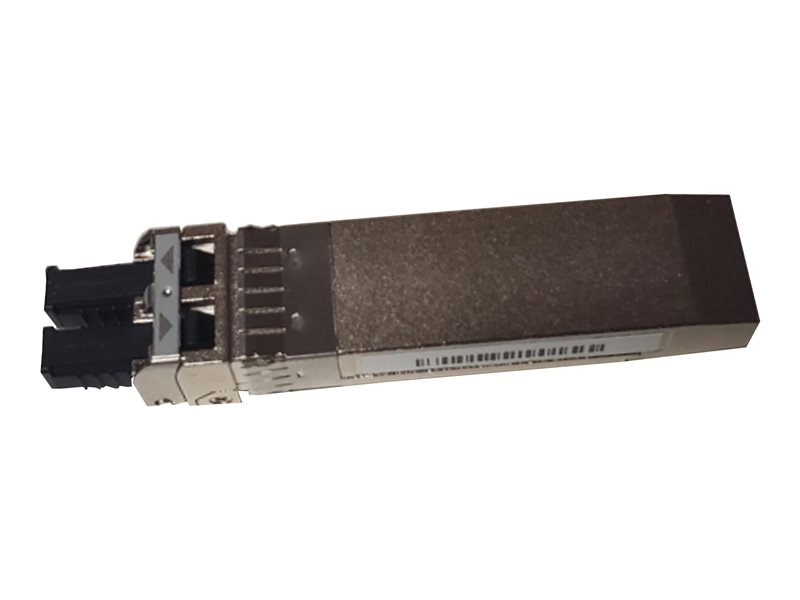

SFP (mini-GBIC) transceiver module - 1GbE, SONET/SDH - LC single-mode - up to 9.3 miles - OC-3/STM-1 - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Cisco - SFP (mini-GBIC) transceiver module - 1GbE, SONET/SDH |
| Device Type | SFP (mini-GBIC) transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Data Transfer Rate | 155 Mbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 1GbE, SONET/SDH |
| Max Transfer Distance | 9.3 miles |
| Dimensions (WxDxH) | 2.2 in x 0.5 in x 0.3 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x OC-3/STM-1 - LC single-mode x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | CDRH Class 1, FDA Class 1, IEC 60825 Class 1, GR-253-CORE, RoHS, WEEE |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE, SONET/SDH |
| Data Transfer Rate | 155 Mbps |
| Optical Wave Length | 1310 nm |
| Line Rate | OC-3/STM-1 |
| Max Transfer Distance | 9.3 miles |
| Features | Channelized SoP, Digital Optical Monitoring (DOM) support, yellow bale-latch |
| Compliant Standards | ITU-T G.652, ITU-T G.957, IEEE 802.3 |
| Power | |
| Power Consumption Operational | 1.28 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 0.5 in |
| Height | 0.3 in |
