Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

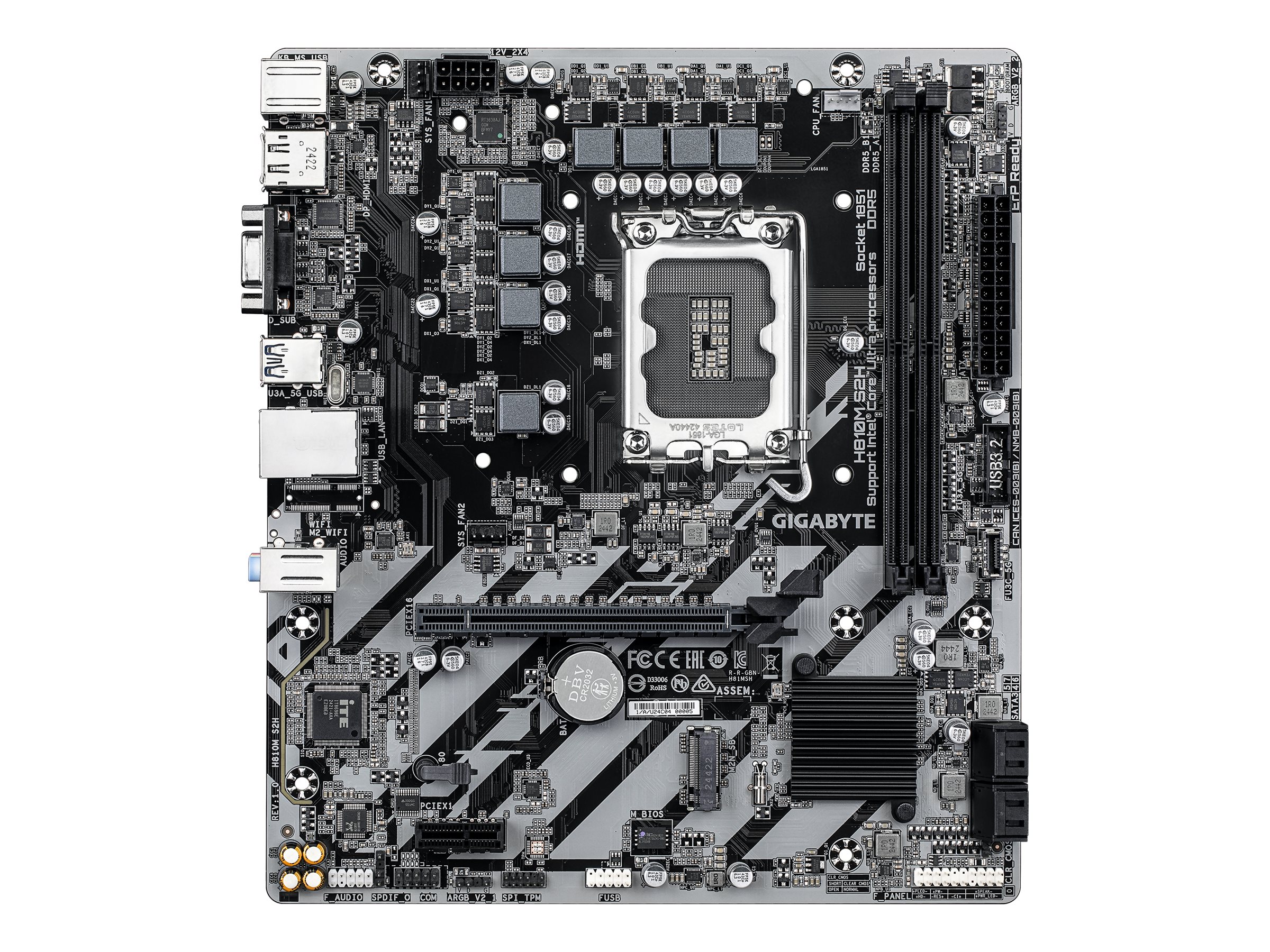

| Product Description | Gigabyte H810M S2H - motherboard - micro ATX - LGA1851 Socket - H810 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H810 Express |
| Processor Socket | 1 x LGA1851 Socket |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Max RAM Size | 128 GB |
| RAM Supported | 2 DIMM slots - DDR5, ECC (operate in non-ECC mode), non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire Ports | 1 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H810 Express |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x USB 3.2 Gen 1 ¦ 5 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center, HWiNFO |
| Compliant Standards | DisplayPort 2.1, HDCP 2.3 |
| Width | 9.6 in |
| Depth | 8.5 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection, water cooling flow rate |
| Hardware Features | Q-Flash, DIY Friendly Design, chipset heatsink, RGB FUSION, PCIe EZ Latch, EZ Debug LED, VRM heatsink design, GIGABYTE Smart Fan 6, Ultra Durable |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Supported RAM | |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 3200 MHz, 2800 MHz |
| Supported RAM Integrity Check | ECC (operate in non-ECC mode), non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP), dual channel memory architecture, supported ECC modules operate in non-ECC mode |
