SSD - Enterprise - encrypted - 30.72 TB - internal - E1.L 9.5mm - FIPS 140-3 Level 2, SHA-512 - Self-Encrypting Drive (SED), TCG Opal Encryption 2.02, FIPS (Federal Information Processing Standards)
| Main Specifications | |
|---|---|

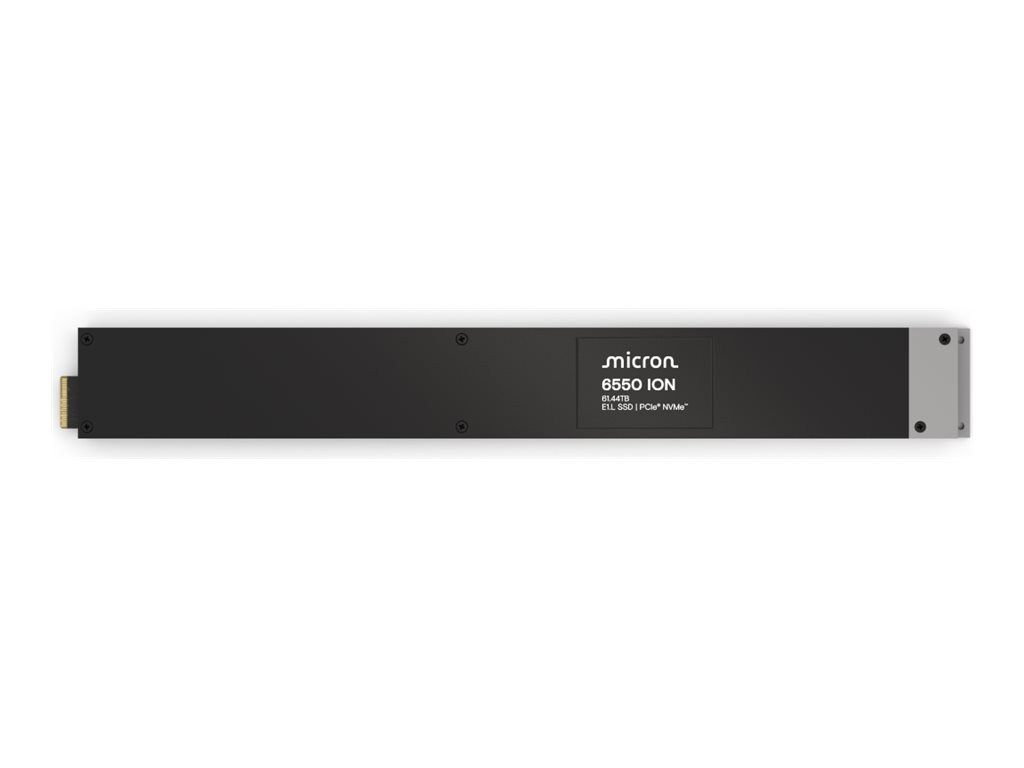

| Product Description | Micron 6550 ION - SSD - Enterprise - 30.72 TB |
| Type | Solid state drive - internal |
| Capacity | 30.72 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | FIPS 140-3 Level 2, SHA-512 |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | E1.L 9.5mm |
| Drive Class | Enterprise |
| Features | NVM Express (NVMe) 2.0b, Security Protection Data Model (SPDM) 1.2, low power consumption, Open Compute Project 2.5, Data Path Protection, RAIN technology, NVMe Management Interface (NVMe-MI), Firmware Activate without Reset, Secure Erase function, Secure Boot, Hardware Root of Trust, Secure Signed Firmware, Active Garbage Collection, TRIM support, Power Loss Protection (PLP) |
| Dimensions (WxDxH) | 1.5 in x 12.6 in x 0.4 in |
| Weight | 8.54 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 30.72 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | FIPS 140-3 Level 2, SHA-512 |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | E1.L 9.5mm |
| Bytes per Sector | 512 |
| Features | NVM Express (NVMe) 2.0b, Security Protection Data Model (SPDM) 1.2, low power consumption, Open Compute Project 2.5, Data Path Protection, RAIN technology, NVMe Management Interface (NVMe-MI), Firmware Activate without Reset, Secure Erase function, Secure Boot, Hardware Root of Trust, Secure Signed Firmware, Active Garbage Collection, TRIM support, Power Loss Protection (PLP) |
| Width | 1.5 in |
| Depth | 12.6 in |
| Height | 0.4 in |
| Weight | 8.54 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | Micron Green Standard, FCC, UL/cUL, BSMI, RCM, KC RRL, WEEE, TUV, VCCI, IC, Morocco, UkrSEPRO, UKCA, PCI-SIG |
| Package Details | Tray |
| Power | |
| Power Consumption | 20 watt (active) ¦ 25 watt (active max) ¦ 5 watt (active idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| SSD Endurance | 14000 TB |
| Drive Class | Enterprise |
| Internal Data Rate | 14000 MBps (read) / 8000 MBps (write) |
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 18.5 in |
| Shipping Depth | 0.8 in |
| Shipping Height | 12.6 in |
| Shipping Weight | 3.11 lbs |
| Expansion & Connectivity | |
| Compatible Bay | E1.L 9.5mm |
