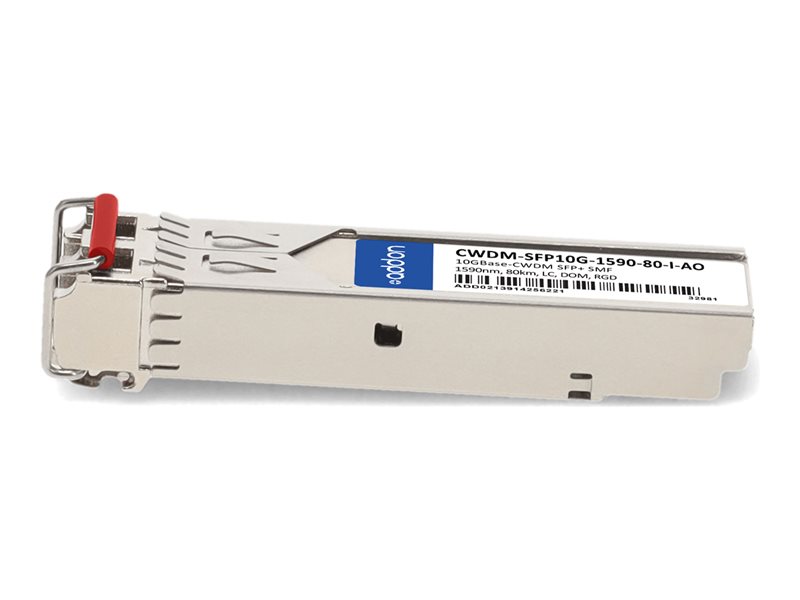

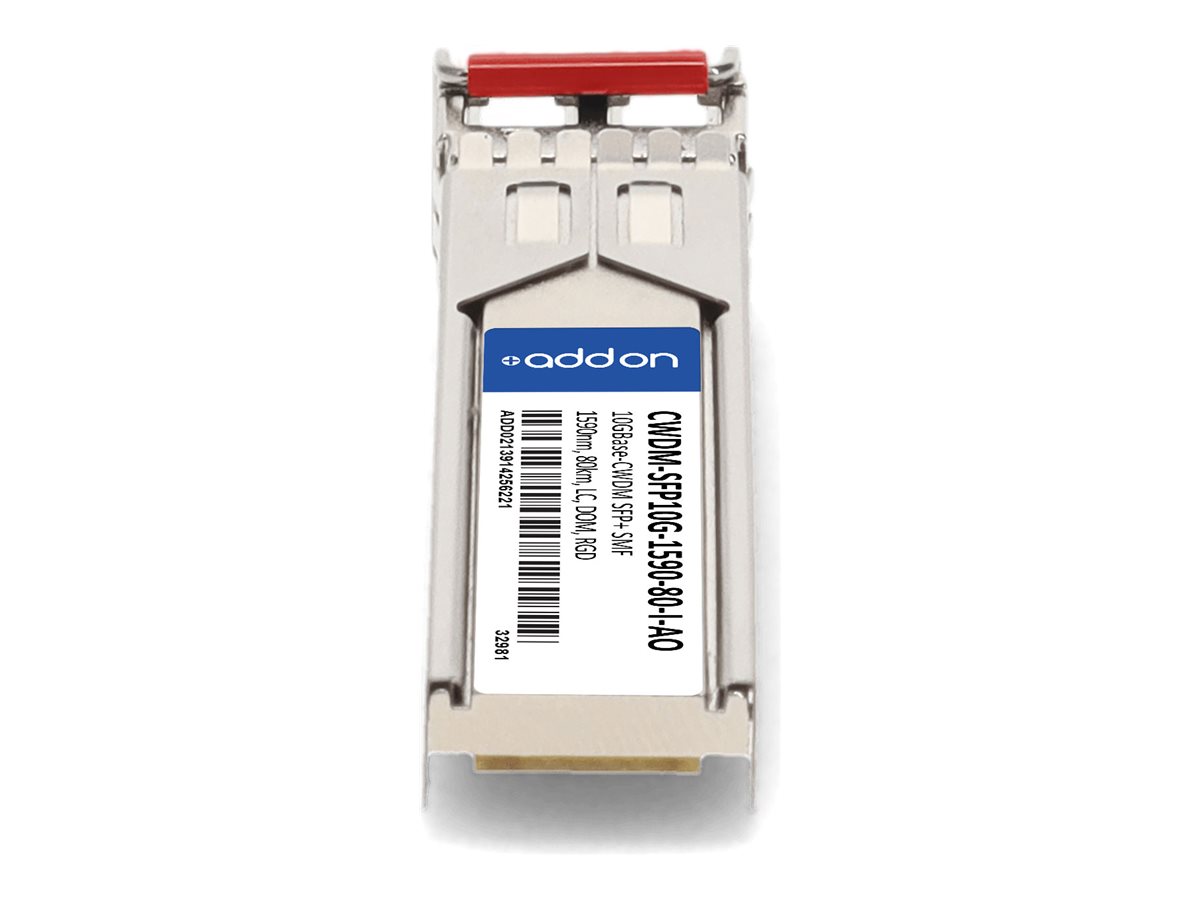

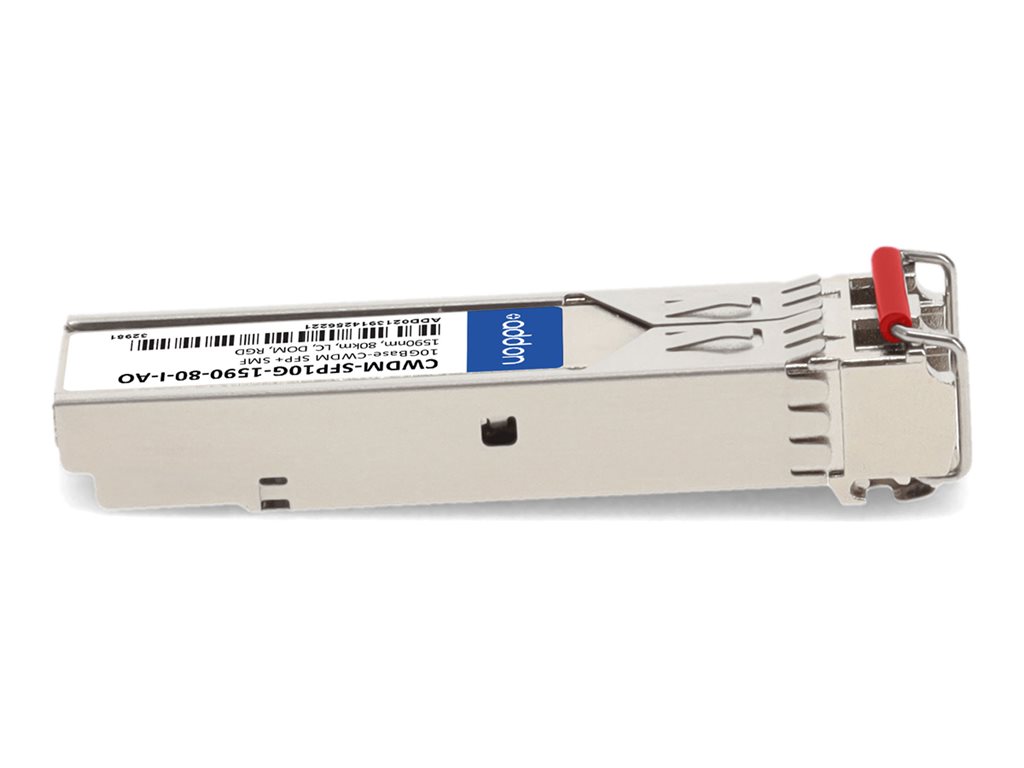

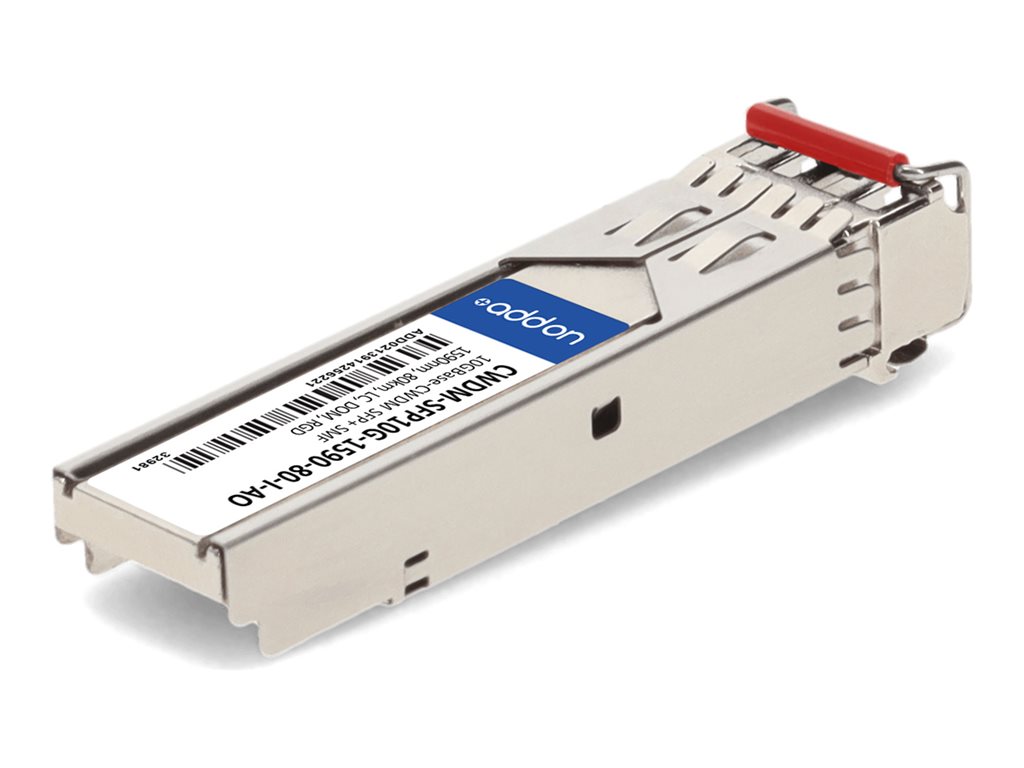

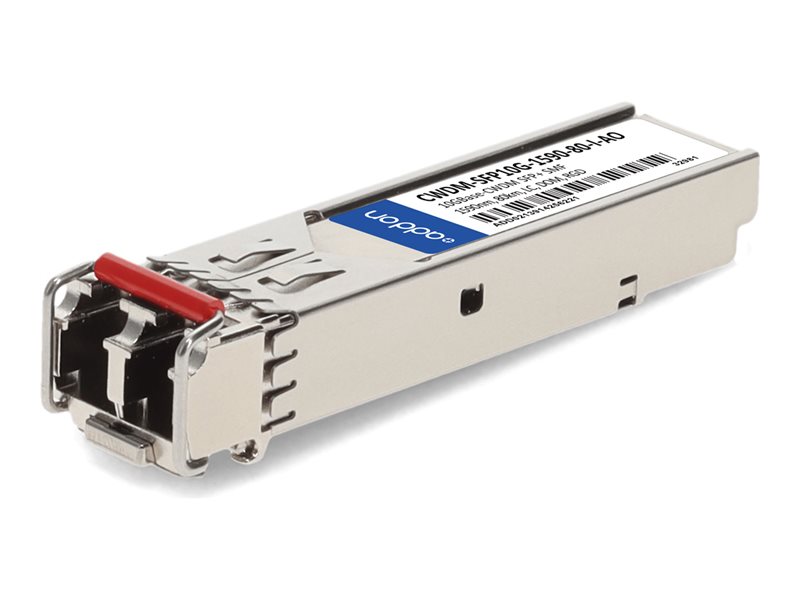

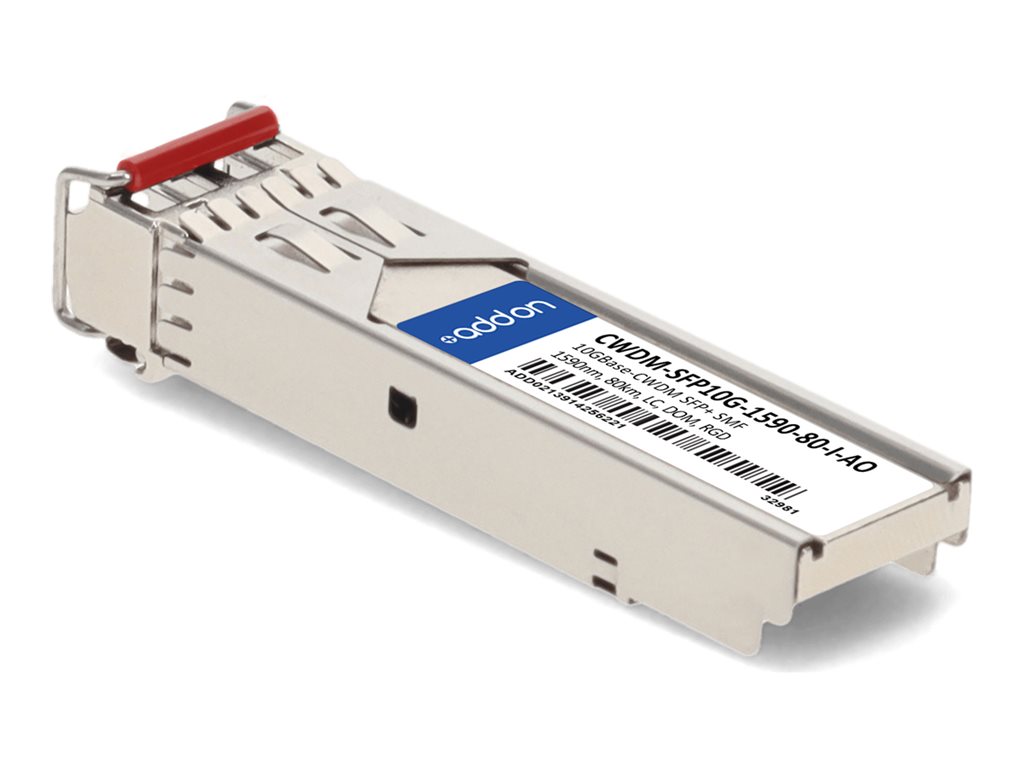

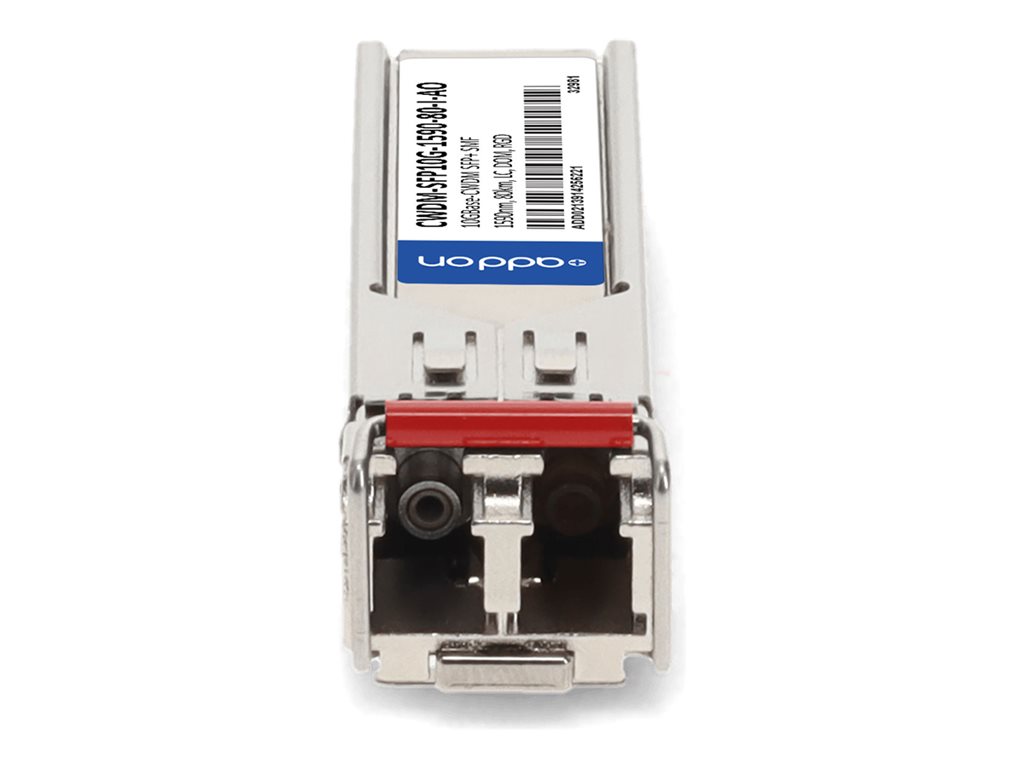

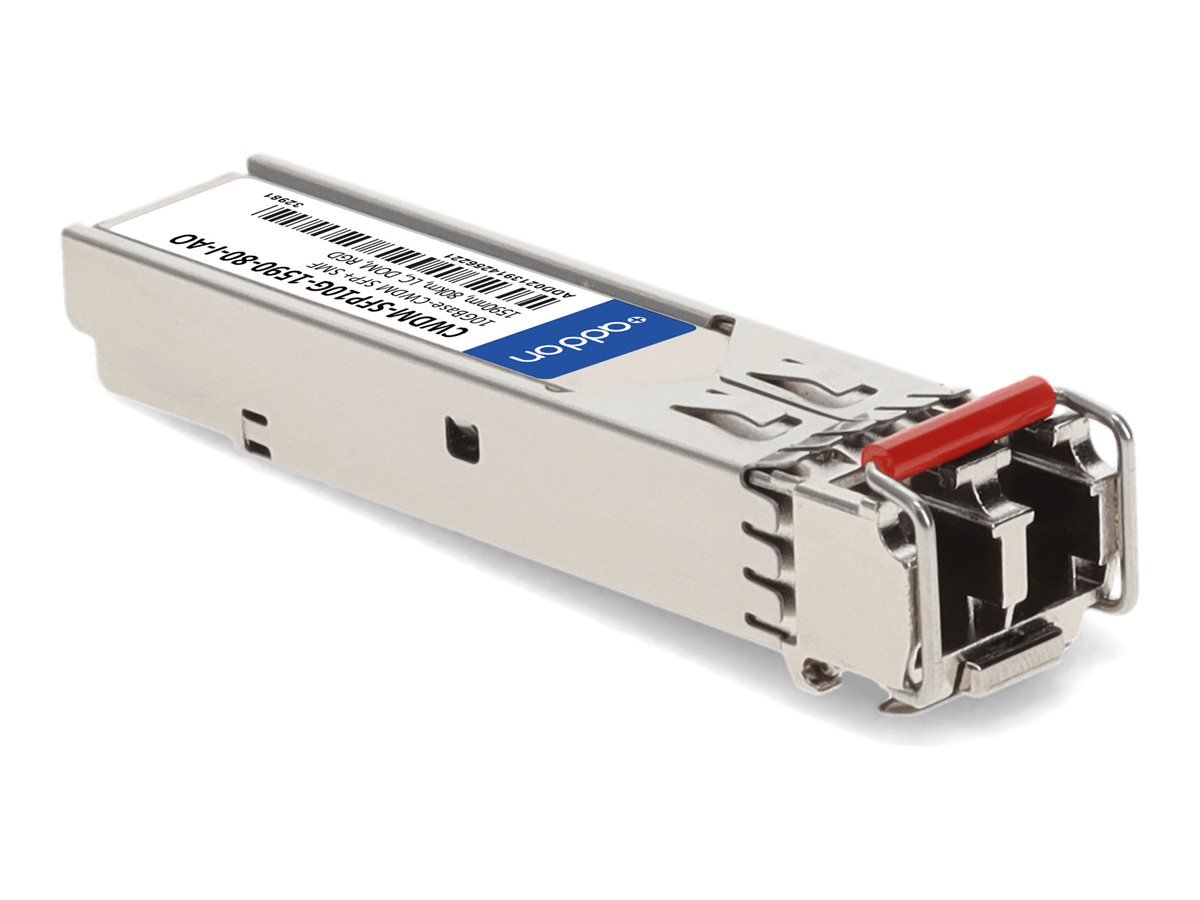

SFP+ transceiver module (equivalent to: Cisco CWDM-SFP10G-1590-80-I) - 10GbE - 10GBase-CWDM - LC single-mode - up to 49.7 miles - 1590 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AddOn - SFP+ transceiver module - 10GbE - TAA Compliant |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-CWDM |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1590 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 49.7 miles |
| OEM Manufacturer Equivalent Part Number | Cisco CWDM-SFP10G-1590-80-I |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-CWDM - LC single-mode x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, Lead-Free |
| OEM Manufacturer Equivalent Part Number | Cisco CWDM-SFP10G-1590-80-I |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-CWDM |
| Data Link Protocol | 10GbE |
| Fibre Channel | SMF |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1590 nm |
| Max Transfer Distance | 49.7 miles |
| Features | Digital Optical Monitoring (DOM) support, ESD Protector, hot-pluggable |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 2.8 in |
| Shipping Depth | 4.8 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 6.38 oz |
