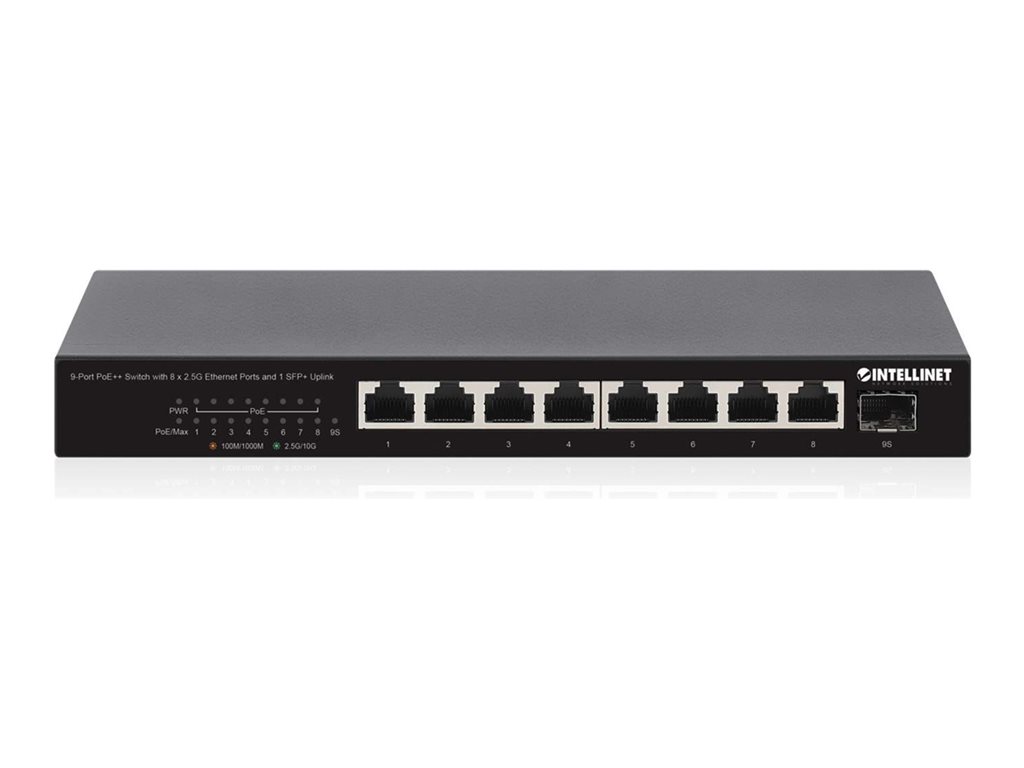

Switch - unmanaged - 8 x 10/100/1000/2.5G (PoE+) + 1 x 10 Gigabit SFP+ (uplink) - desktop, wall-mountable - 4PPoE / PoE++ (100 W) - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Intellinet - switch - 9 ports - unmanaged - TAA Compliant |
| Device Type | Switch - 9 ports - unmanaged |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 8 x 10/100/1000/2.5G (PoE+) + 1 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | 4PPoE / PoE++ |
| PoE Budget | 100 W |
| Performance | Forwarding rate: 44.14 Mpps ¦ Switching capacity: 60 Gbps ¦ Buffer memory: 8.1 Mbit |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 12KB |
| Features | Store and forward, auto-negotiation, fanless, metal housing, full duplex mode, half duplex mode, LED status indicators |
| Compliant Standards | IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.1AX |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 9.4 in x 4.1 in x 1.1 in |
| Weight | 24.34 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 9 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 8 x 10/100/1000/2.5G (PoE+) + 1 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | 4PPoE / PoE++ |
| PoE Budget | 100 W |
| Performance | Forwarding rate: 44.14 Mpps ¦ Switching capacity: 60 Gbps ¦ Buffer memory: 8.1 Mbit |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 12KB |
| Features | Store and forward, auto-negotiation, fanless, metal housing, full duplex mode, half duplex mode, LED status indicators |
| Compliant Standards | IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.1AX |
| Status Indicators | Power, link, PoE, alert |
| Expansion / Connectivity | |
| Interfaces | 8 x 2.5GBase-T RJ-45 PoE++ ¦ 1 x Gigabit LAN SFP+ uplink |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, UKCA, NDAA, REACH |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Power Provided | DC 54 V - 2.2 A |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Consumption Operational | 120 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 9.4 in |
| Depth | 4.1 in |
| Height | 1.1 in |
| Weight | 24.34 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.22 lbs |
