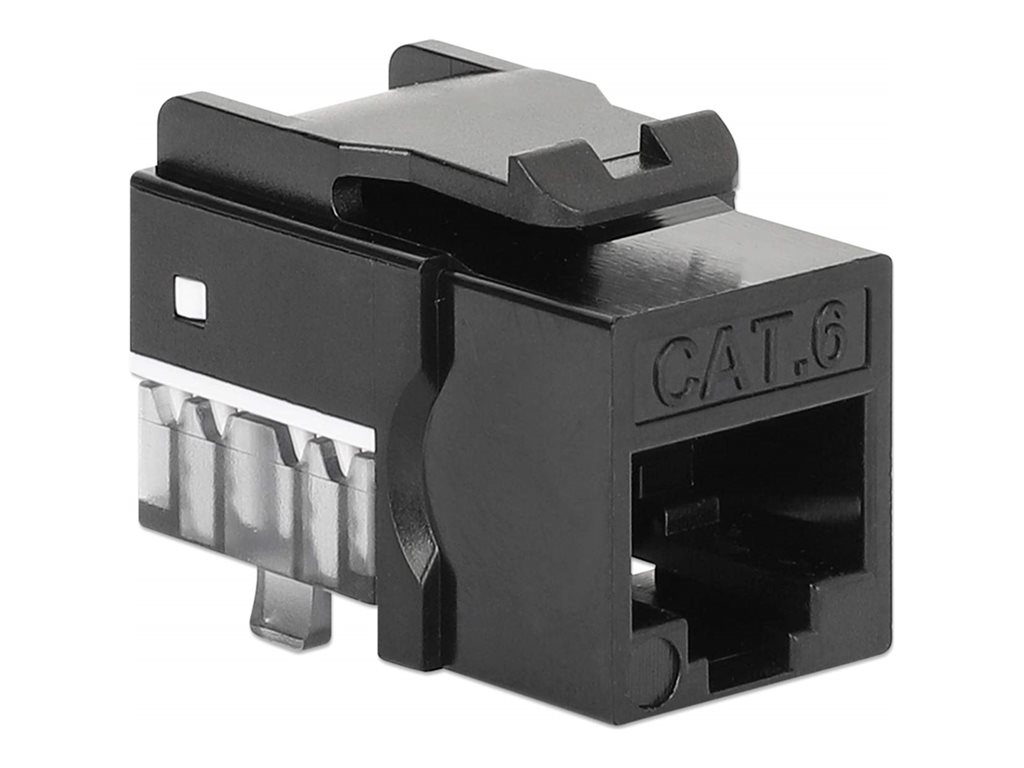

Modular insert - slim - CAT 6 - UTP - RJ-45 - black (pack of 25)
| Main Specifications | |
|---|---|
| Product Description | Intellinet modular insert - slim |
| Product Type | Modular insert - CAT 6 - RJ-45 - slim |
| Packaged Quantity | 25 (specifications are for single item) |
| Package Content | 25 x dust cover, 25 x cable tie, punch-down stand |
| Dimensions (WxDxH) | 0.6 in x 1.3 in x 0.9 in |
| Weight | 0.26 oz |
| Color | Black |
| Port Qty | 1 port |
| Compliant Standards | ISO/IEC 11801, UL, RoHS, REACH, 4PPoE, Ultra PoE, PoE++, IEEE 802.3bt, UL 94 V-0 |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Packaged Quantity | 25 (specifications are for single item) |
| Product Type | Modular insert - CAT 6 - slim |
| Package Content | 25 x dust cover, 25 x cable tie, punch-down stand |
| Width | 0.6 in |
| Depth | 1.3 in |
| Height | 0.9 in |
| Weight | 0.26 oz |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Features | For 23 - 26 AWG solid wire, flame retardant |
| Compliant Standards | ISO/IEC 11801, UL, RoHS, REACH, 4PPoE, Ultra PoE, PoE++, IEEE 802.3bt, UL 94 V-0 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% RH |
| Cabling & Wiring | |
| Port Qty | 1 port |
| Termination Type | 110 type termination, LSA (Krone) |
| Technology | Unshielded twisted pair (UTP) |
| Features | Gold-plated contacts, keystone type |
| Connector Provided | 1 x RJ-45 female |
