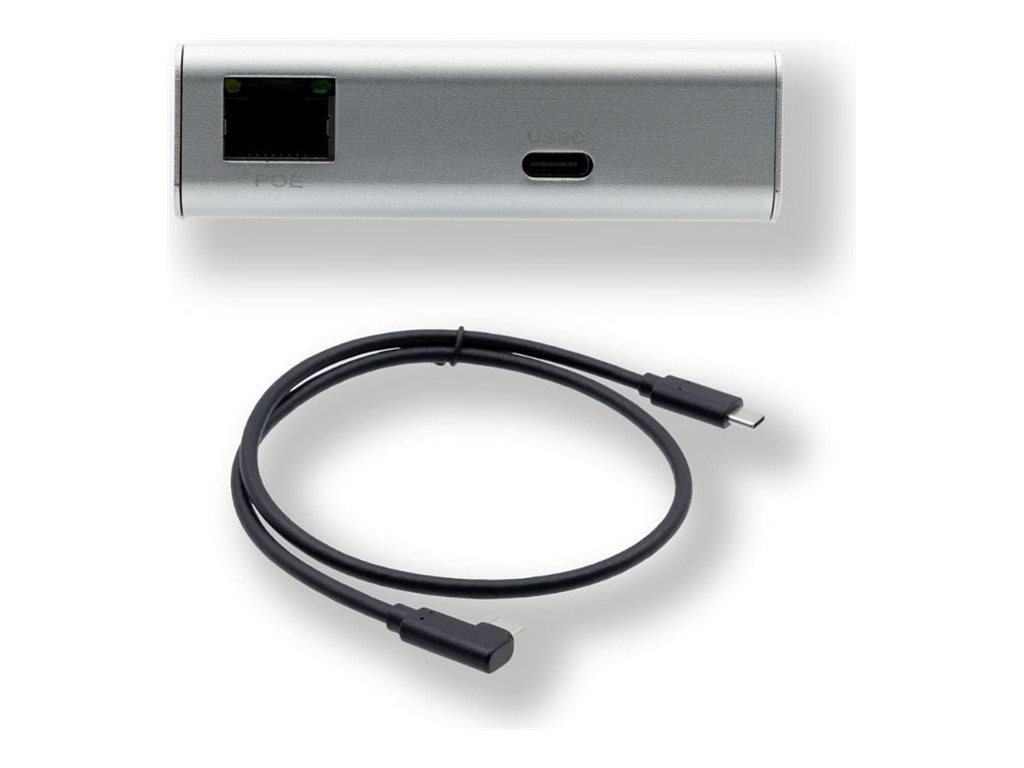

PoE splitter (DIN rail mountable / wall) - patented Gigabit, PoE+ to USB-C, power + data delivery, with USB-C cable - 48 - 56 V - 25 Watt - output connectors: 1
| Main Specifications | |
|---|---|
| Product Description | POE Texas - PoE splitter - patented Gigabit, PoE+ to USB-C, power + data delivery, with USB-C cable - 25 Watt |
| Device Type | PoE splitter - DIN rail mountable / wall |
| Power Over Ethernet (PoE) | PoE+ |
| Weight | 3 oz |
| Input Voltage | 48 - 56 V |
| Output Voltage | 5 / 9 / 12 / 15 / 20 V |
| Power Capacity | 25 Watt |
| Input Connectors | 1 x RJ-45 |
| Output connectors | 1 x 24 pin USB-C |
| General | |
| Device Type | PoE splitter - DIN rail mountable / wall |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN (PoE+) - RJ-45 ¦ 1 x USB - Type C |
| Miscellaneous | |
| Cables Included | USB-C cable - detachable |
| Features | Data transfer, up to 100 m distance, Power Delivery (PD), LED indicators |
| Compliant Standards | IEEE 802.3at, Plug and Play, FCC, WEEE |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Power Device | |
| Input Voltage | 48 - 56 V |
| Input Connectors | 1 x RJ-45 |
| Power Output Connectors Details | 1 x 24 pin USB-C |
| Output Voltage | 5 / 9 / 12 / 15 / 20 V |
| Max Electric Current | 2.6 A |
| Power Capacity | 25 Watt |
| Dimensions & Weight | |
| Weight | 3 oz |
