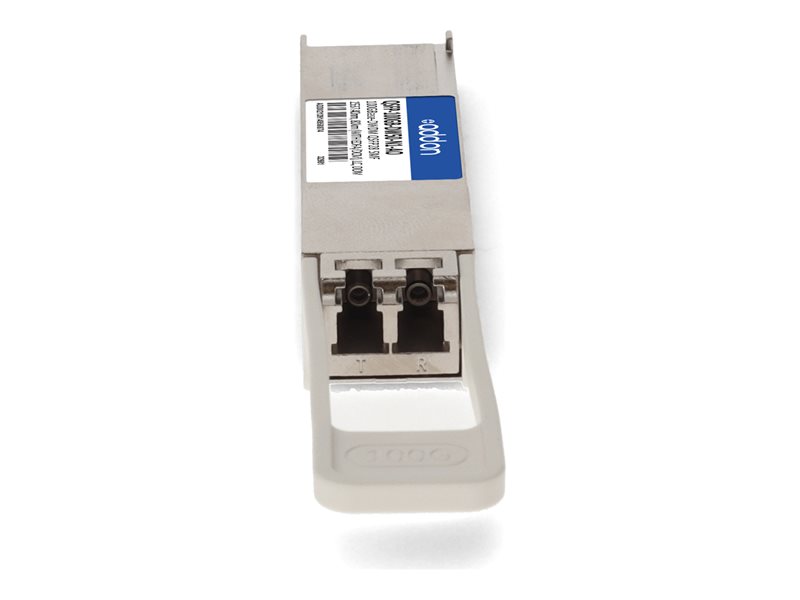

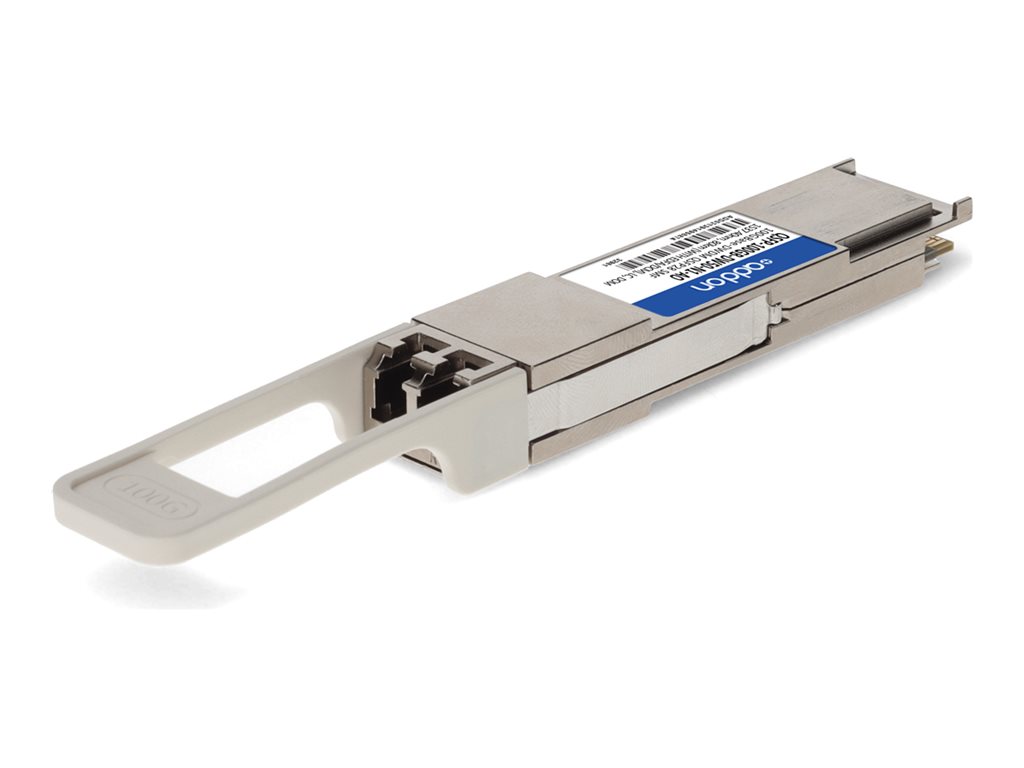

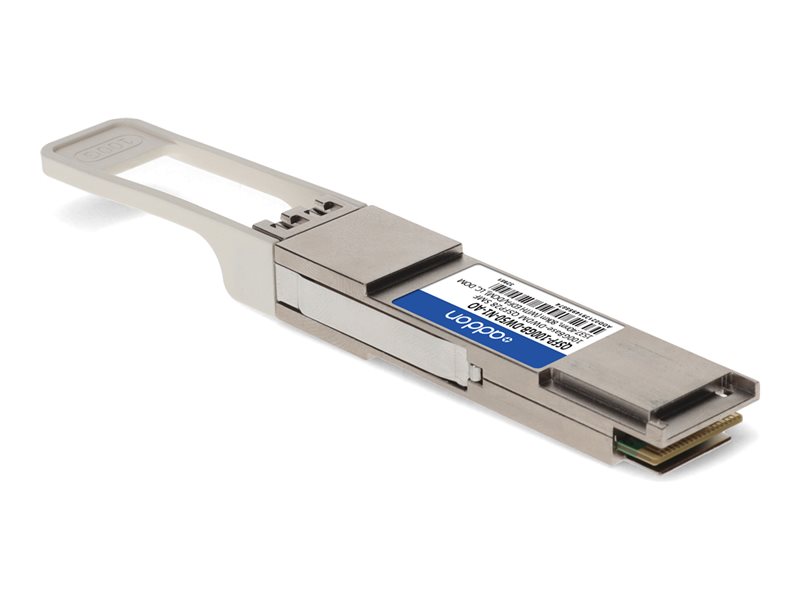

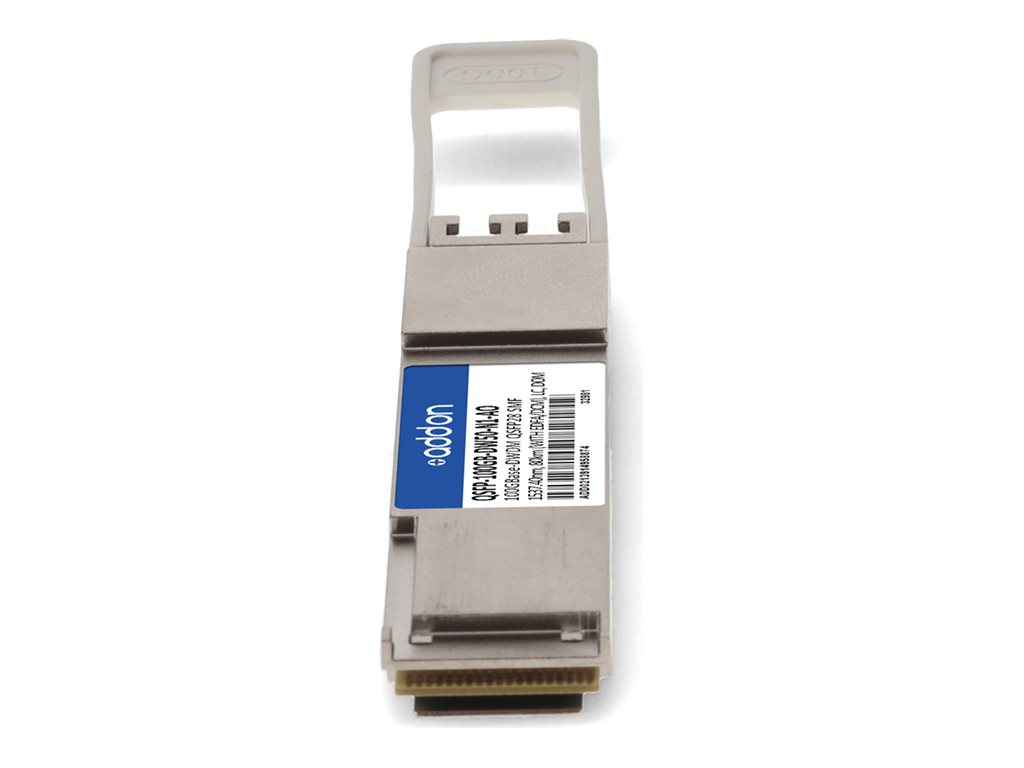

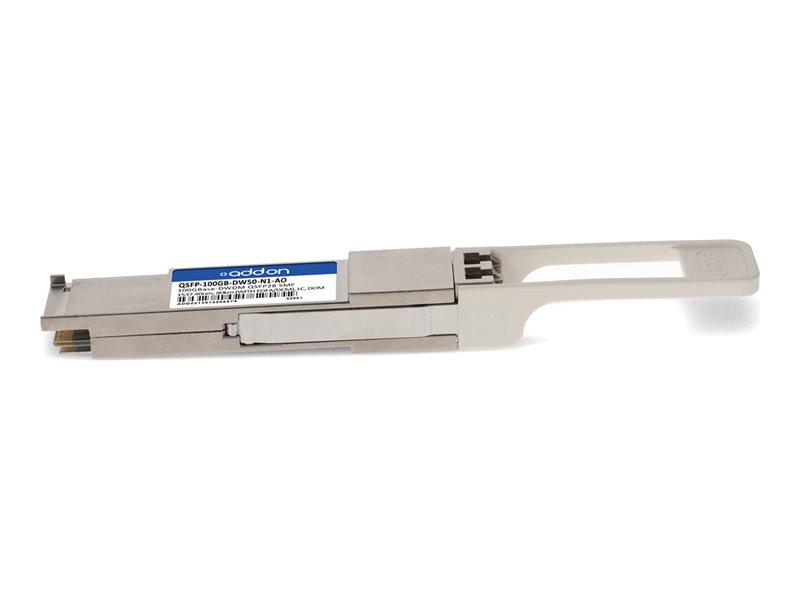

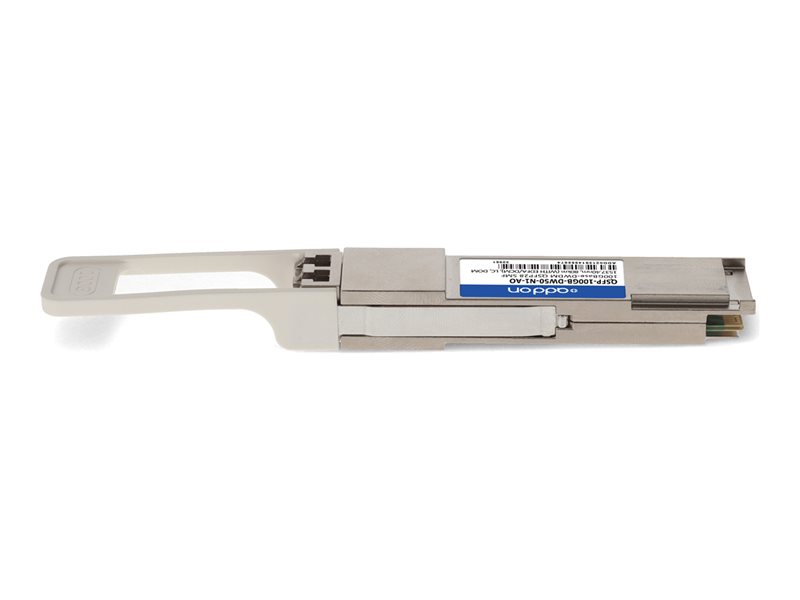

QSFP28 transceiver module (equivalent to: Alcatel-Lucent Nokia QSFP-100GB-DW50-N1) - 100GbE - 100GBase-DWDM - LC single-mode - up to 49.7 miles - channel: 50 - 1537.40 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AddOn - QSFP28 transceiver module - 100GbE - TAA Compliant |
| Device Type | QSFP28 transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 100GBase-DWDM |
| Data Transfer Rate | 100 Gbps |
| DWDM Channel | 50 |
| Optical Wave Length | 1537.40 nm |
| Data Link Protocol | 100GbE |
| Max Transfer Distance | 49.7 miles |
| OEM Manufacturer Equivalent Part Number | Alcatel-Lucent Nokia QSFP-100GB-DW50-N1 |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | QSFP28 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 100GBase-DWDM - LC single-mode x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | IEC 61000-4-3, Lead-Free, EN 60950-1, IEC 60825-1, EN 60825-1, EN 60825-2, IEC 60825-2, EN 55022:2010, MIL-STD-883E, FDA 21 CFR, MSA SFF-8636, FCC Part 15 Subpart B, RoHS 2.0 |
| OEM Manufacturer Equivalent Part Number | Alcatel-Lucent Nokia QSFP-100GB-DW50-N1 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 100GBase-DWDM |
| Data Link Protocol | 100GbE |
| Fibre Channel | SMF |
| Data Transfer Rate | 100 Gbps |
| DWDM Channel | 50 |
| Optical Wave Length | 1537.40 nm |
| Line Coding Format | PAM4 |
| Max Transfer Distance | 49.7 miles |
| Features | Digital Optical Monitoring (DOM) support, Erbium Doped Fiber Amplifier (EDFA), c-band, Dispersion Compensation Module (DCM), 100GHz channel spacing, ESD Protector, hot-pluggable, low EMI |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 2.8 in |
| Shipping Depth | 4.8 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 6.38 oz |
