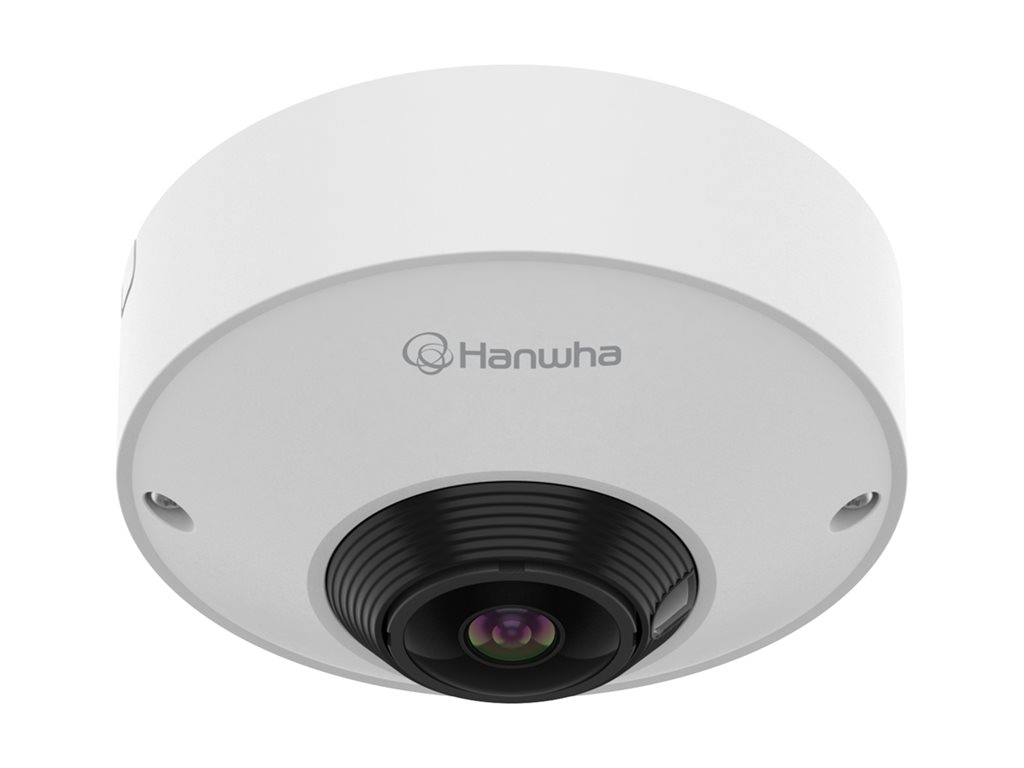

Network surveillance camera - fisheye - color (Day&Night) - 12 MP - 3584 x 2688 - fixed focal - USB - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision WiseNet Q QNF-C9010 - network surveillance camera - fisheye |
| Device Type | Network surveillance camera - fixed - fisheye |
| Dimensions (WxDxH) | 3.9 in x 3.9 in x 2 in |
| Weight | 12.7 oz |
| Color | White, RAL 9003 |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 3584 x 2688 |
| Frame Rate (max) | 20 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/6" - 12 MP |
| Minimum Illumination | 0.02 lux - color - F1.8 - shutter 1/30 sec ¦ 0.001 lux - B&W - F1.8 - shutter 1/30 sec |
| Focal Length Control | Fixed focal |
| Focal Length | 1.76 mm |
| Focus Adjustment | (min distance 19.7 in) |
| Lens Iris | F/1.8 |
| Interfaces | USB, Ethernet 10Base-T/100Base-TX |
| Voltage | PoE Class 3 |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), WiseNR II, Privacy Mask Function, Gain Control, white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Compensation (LDC), electronic shutter, image flip, image mirror, video analytics, Object Detection, Person Detection, Vehicle Detection, clothes color detection, vehicle color recognition, Best Shot Selector (BSS), motion detection, Virtual Line detection, Line Crossing Detection, direction detection, loitering detection, intrusion detection, entrance / exit detection, appearing / disappearing detection, Defocus Detection, Tampering detection, people counting, queue management, Heat Map, network disconnection trigger, alarm event, e-mail alerts, Smart Codec, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, 802.1x authentication, Access Control, aluminum housing |
| Environmental Parameters (operating) | 14 °F - 104 °F; 0 - 90% RH relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Fisheye |
| Connectivity Technology | Wired |
| Width | 3.9 in |
| Depth | 3.9 in |
| Height | 2 in |
| Weight | 12.7 oz |
| Expansion / Connectivity | |
| Ports | USB - Micro-USB Type B ¦ LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2 |
| Miscellaneous | |
| Compliant Standards | FCC, cULus, EAC, NDAA, IEEE 802.1x, IEEE 802.3af, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP42, EN 62676-4 |
| Color | White, RAL 9003 |
| Power | |
| Power Requirements | PoE Class 3 |
| Power Device | 7.3 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 0 - 90% RH |
| Camera | |
| Type | Color - Day&Night - fixed |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3584 x 2688 |
| Motion Detection | Yes |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Minimum Illumination | 0.02 lux - color - F1.8 - shutter 1/30 sec ¦ 0.001 lux - B&W - F1.8 - shutter 1/30 sec |
| Digital Video Capture Resolution | 3584 x 2688, 3584 x 1792, 3008 x 3008, 3584 x 896, 2560 x 2560, 2048 x 1536, 1920 x 1920, 1920 x 960, 1920 x 480, 1792 x 1344, 1504 x 1504, 1280 x 1280, 1280 x 640, 1280 x 320, 1024 x 768, 1024 x 512, 1024 x 256, 800 x 800, 768 x 576, 640 x 640, 640 x 320, 640 x 160, 512 x 384, 480 x 480 |
| Frame Rate (max) | 20 frames per second |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Features | Auto ICR, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), WiseNR II, Privacy Mask Function, Gain Control, white balance, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), manual white balance, Lens Distortion Compensation (LDC), electronic shutter, image flip, image mirror, video analytics, Object Detection, Person Detection, Vehicle Detection, clothes color detection, vehicle color recognition, Best Shot Selector (BSS), motion detection, Virtual Line detection, Line Crossing Detection, direction detection, loitering detection, intrusion detection, entrance / exit detection, appearing / disappearing detection, Defocus Detection, Tampering detection, people counting, queue management, Heat Map, network disconnection trigger, alarm event, e-mail alerts, Smart Codec, WiseStream III support, Constant Bitrate (CBR), Variable Bitrate (VBR), Multicast Streaming, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, firmware encryption, secure boot, signed firmware, digest authentication, 802.1x authentication, Access Control, aluminum housing |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 1.76 mm |
| Lens Iris | F/1.8 |
| Min Focus Distance | 19.7 in |
| Horizontal Field of View (degree) | 185 |
| Vertical Field of View (degree) | 185 |
| Diagonal Field of View (degree) | 185 |
| Image Sensor | |
| Type | 12 MP CMOS 1/6" |
| Interfaces | |
| Video | USB |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, UDP, TCP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, CDP, SRTP, MQTT, SUNAPI |
