Antenna - integrated - Wi-Fi, cellular, navigation - 0.8 dBi (for 1602 MHz), 0.9 dBi (for 1575 MHz), 3.0 dBi (for 617-960 MHz), 5.4 dBi (for 2400 - 2500 MHz), 5.7 dBi (for 3400 - 4400 MHz), 6.2 dBi (for 1410 - 2700 MHz), 6.6 dBi (for 5000 - 6000 MHz), 7.4 dBi (for 5000 - 6000 MHz) - deck-mountable, pole mount, surface mountable, wall-mountable, outdoor - white - TAA Compliant
| Main Specifications | |
|---|---|

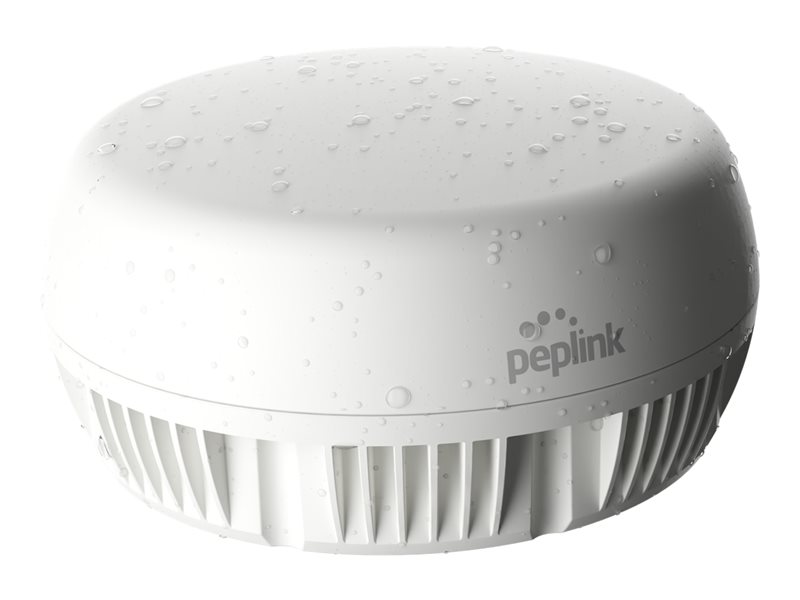

| Product Description | Peplink Antenna MAX - antenna - TAA Compliant |
| Product Type | Antenna |
| Package Content | 3 x cable glands, adhesive pad, L-shape mount set, 2 hole plugs |
| Dimensions (WxDxH) | 9.8 in x 9.8 in x 4.7 in |
| Product Material | UV stable polycarbonate |
| Color | White |
| Form Factor | Integrated |
| Intended For | Wi-Fi, cellular, navigation |
| Antenna Placing / Mounting | Deck-mountable, pole mount, surface mountable, wall-mountable, outdoor |
| Compatibility | 5G, GPS, LTE, Wi-Fi |
| Frequency Range | 1575 - 1602 MHz, 617 - 960 MHz, 1410 - 2700 MHz, 2400 - 2500 MHz, 3400 - 4400 MHz, 5000 - 6000 MHz |
| Gain | 0.8 dBi (for 1602 MHz), 0.9 dBi (for 1575 MHz), 3.0 dBi (for 617-960 MHz), 5.4 dBi (for 2400 - 2500 MHz), 5.7 dBi (for 3400 - 4400 MHz), 6.2 dBi (for 1410 - 2700 MHz), 6.6 dBi (for 5000 - 6000 MHz), 7.4 dBi (for 5000 - 6000 MHz) |
| Compliant Standards | IP67, RoHS, REACH, WEEE, ASTM 8117, MIL-STD 810F, UL 94 V-0, UL746C - UV F1 |
| TAA Compliant | Yes |
| General | |
| Product Type | Antenna |
| Package Content | 3 x cable glands, adhesive pad, L-shape mount set, 2 hole plugs |
| Product Material | UV stable polycarbonate |
| Width | 9.8 in |
| Depth | 9.8 in |
| Height | 4.7 in |
| Enclosure Color | White |
| Miscellaneous | |
| Features | Plastic enclosure, linear polarization, 2-element, 4-element |
| Compliant Standards | IP67, RoHS, REACH, WEEE, ASTM 8117, MIL-STD 810F, UL 94 V-0, UL746C - UV F1 |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 176 °F |
| Cabling & Wiring | |
| Connector Provided | 1 x RP-SMA male ¦ 1 x SMA male |
| Antenna | |
| Form Factor | Integrated |
| Intended For | Wi-Fi, cellular, navigation |
| Antenna Placing / Mounting | Deck-mountable, pole mount, surface mountable, wall-mountable, outdoor |
| Compatibility | 5G, GPS, LTE, Wi-Fi |
| Frequency Range | 1575 - 1602 MHz, 617 - 960 MHz, 1410 - 2700 MHz, 2400 - 2500 MHz, 3400 - 4400 MHz, 5000 - 6000 MHz |
| Gain | 0.8 dBi (for 1602 MHz), 0.9 dBi (for 1575 MHz), 3.0 dBi (for 617-960 MHz), 5.4 dBi (for 2400 - 2500 MHz), 5.7 dBi (for 3400 - 4400 MHz), 6.2 dBi (for 1410 - 2700 MHz), 6.6 dBi (for 5000 - 6000 MHz), 7.4 dBi (for 5000 - 6000 MHz) |
| Voltage Standing Wave Ratio (VSWR) | <2.5 |
| Impedance | 50 Ohm |
