Router 10GbE, 25GbE - side to side airflow - rack-mountable
| Main Specifications | |
|---|---|

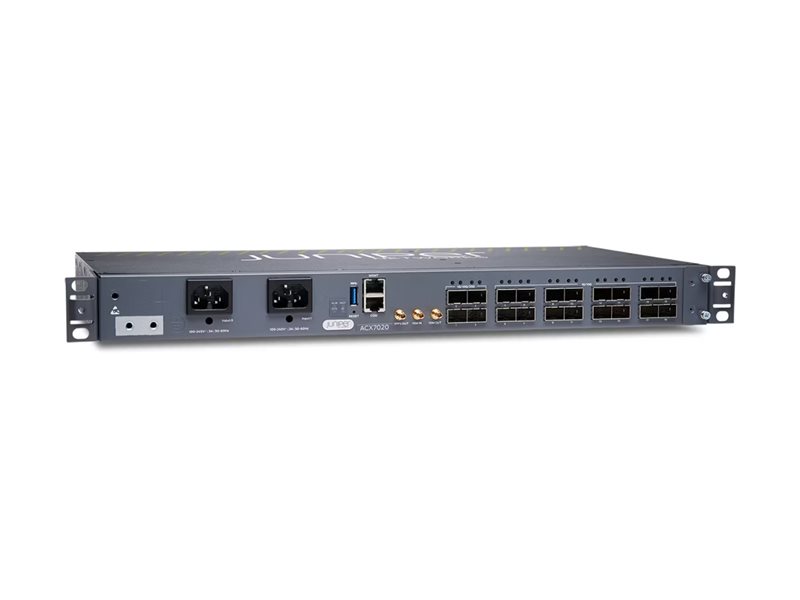

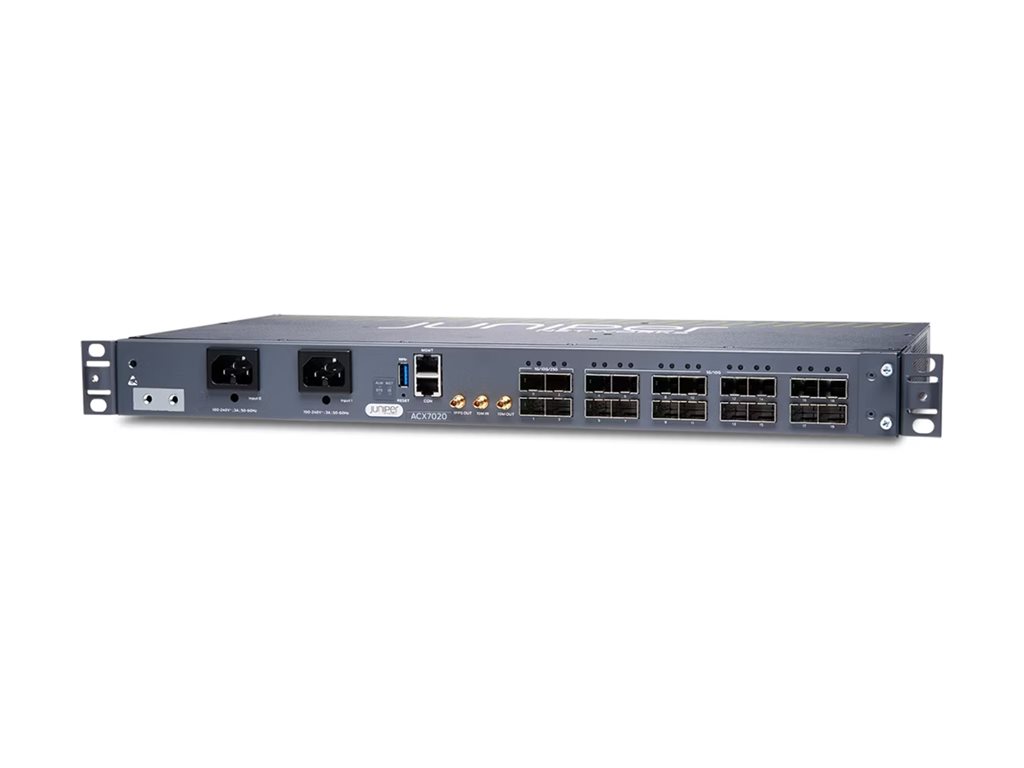

| Product Description | Juniper Networks ACX Series 7020 - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Side to side airflow rack-mountable - 1U |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | ASIC throughput: 100 Gbps |
| Routing Protocol | MPLS |
| Features | Rugged, ZTS, modular design, EMI/RFI protection, SR, Quad-core CPU, conformal coated, SRv6 support, EVPN, redundant fans, reset button, PTP, SyncE |
| Power | DC -24 - -60 V |
| Dimensions (WxDxH) | 17.7 in x 9.3 in x 1.7 in |
| Weight | 9.81 lbs |
| General | |
| Device Type | Router |
| Enclosure Type | Side to side airflow rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | ASIC throughput: 100 Gbps |
| Routing Protocol | MPLS |
| Features | Rugged, ZTS, modular design, EMI/RFI protection, SR, Quad-core CPU, conformal coated, SRv6 support, EVPN, redundant fans, reset button, PTP, SyncE |
| Compliant Standards | EMC, BSMI CNS 13438, NCC C6357, RoHS 2011/65/EU Amendment 2015/863, Regulation EC 1907/2006, WEEE 2012/19/EU, REACH, SCIP, TSCA, ETSI EN 300 019-2-2 Class 2.3, ESTI EN 300-019 Class 3.2, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, GR-63-CORE, Issue 5, IEC 60255-21-1, IEC 60255-21-2, IEC 60255-21-3 Class 1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, EN 50121-1:2006, EN 50121-4:2006, EN 61000-4-16, EN 61000-6-1, EN 61000-6-3, FCC 47 CFR Part 15, ICES-003, ICES-GEN, BS EN 55032, BS EN 55035, EN 300 386 V1.6.1, EN 300 386 V2.2.1, EN 300 386, EN 55032, CISPR 32, EN 55035, CISPR 35, IEC/EN 61000, EN IEC 61000-3-2, IEC/EN 61000-3-3, AS/NZS CISPR 32, VCCI-CISPR 32, BSMI CNS 15936, KS C 9835, KS C 9832, EN 300 386 V2.1.1, EN 55032:2012, EN 55024:2010, KN32, KN35, KN 61000, AS/NZS CISPR 32:2015, VCCI-CISPR 32:2016, TEC-SD-DD-EMC-221-05-OCT-16, GR-1089-CORE, Issue 7, CISPR 32:2012, CISPR 24:2010, CISPR 35: 2016, NEBS |
| Processor | Intel |
| RAM | 16 GB DDR4 SDRAM |
| Expansion / Connectivity | |
| Interfaces | 16 x 10Gb Ethernet / 1Gb Ethernet - SFP+ ¦ 4 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet - SFP28 ¦ Console: 1 x RJ-45 ¦ Management: 1 x RJ-45 ¦ USB: 1 x |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | DC -24 - -60 V |
| Power Consumption Operational | 65 watt |
| Software / System Requirements | |
| OS Provided | Junos Evolved |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.7 in |
| Depth | 9.3 in |
| Height | 1.7 in |
| Weight | 9.81 lbs |
