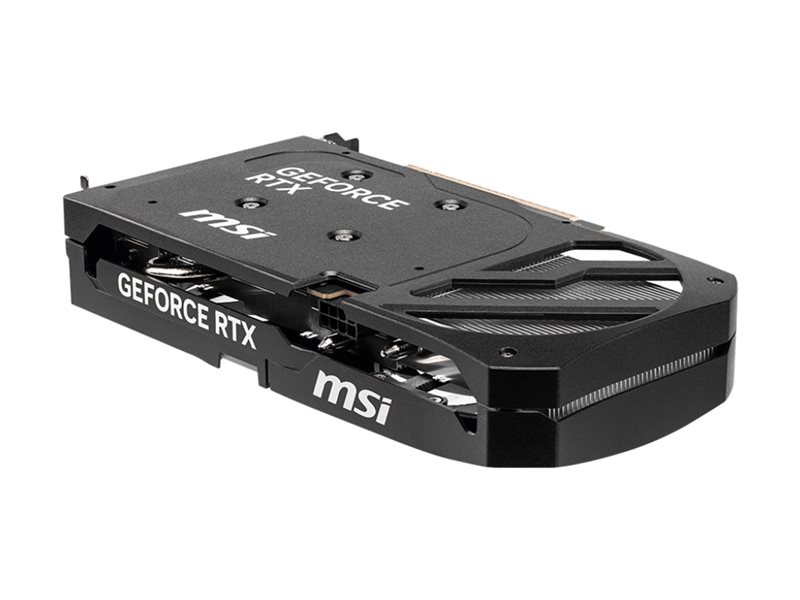

Graphics card - GeForce RTX 5060 Ti - 8 GB GDDR7 - PCIe 5.0 x16 - HDMI, 3 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | MSI GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS - graphics card - GeForce RTX 5060 Ti - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 (x8 mode) |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Memory | 8 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock | 2602 MHz |
| CUDA Cores | 4608 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.6 in x 8.9 in x 5 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 (x8 mode) |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Boost Clock | 2602 MHz |
| CUDA Cores | 4608 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Features | Stormforce Fan, MSI Zero Frozr technology, metal backplate, DrMOS, fuse protection, Dual Fan Design, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Avatar Cloud Engine (ACE), Nvidia Studio, Nvidia Broadcast, NVIDIA G-Sync ready, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, 9th Gen NVIDIA Encoder, HDCP |
| Memory | |
| Size | 8 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Power Consumption Operational | 180 watt |
| Software Included | MSI Center, Norton 360 (30 days trial), Adobe Creative Cloud All Apps (1 month membership), MSI Afterburner, MSI APP Player |
| Compliant Standards | DisplayPort 2.1b |
| Width | 1.6 in |
| Depth | 8.9 in |
| Height | 5 in |
| Weight | 19.5 oz |
| Shipping Weight | 28.71 oz |
| System Requirements | |
| Required Power Supply | 600 W |
| Additional Requirements | 8 pin PCI Express power connector |
